Atlas ROC L6 Downhole Equipment
- Xiamen
 - T/T Credit Card

You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | ZHAOXING | |
| Model Number | ROC L6 |
Product Description
Specifications
downhole equipment1.Set up in 1996,17 years engineering experience
2.Flexibility,mobility
3.Overall economy
Atlas ROC L6 downhole equipment -Total Rock
Advantages
1.The Down-the-hole drill rig for soft and medium rock formatios in quarries. High productivty by means high pressure compressor in combination wih the perfect work station.
2.The ability of drill in different angles and to accurately set the inclination and control the depth of the hole contribute to the overall economy of the operation.
3.Flexibility and mobilit are two important factors for a smooth operatio. The boom and feed movements of ROC L6 gives he rig excellent flexibility for vertical, horizontal and angle drilling.
| Recommended hole range ROC L6 - Technical data | ||
| COP 34 | 92-105 mm | 3 5/8''-4 1/8'' |
| COP 44 | 110-130mm | 4 5/16''-5 1/8'' |
| COP 54 | 134-152mm | 5 1/8''-5 1/2'' |
| Drill tube diam | 76/89/102mm | 3"/31/2"/4" |
| Drill tube length | 4m | 13 ft |
| Hole Depth,Max | 36m | 118ft |
| Compressor | ||
| Atlas Copco | screw type | |
| compresor | XRV9 | |
| working pressure | max.25bar | 363psi |
| FAD | 295 l/s | 625cfm |
| Engine | ||
| Caterpillar,water-cooled, diesel engine, | CAT 3176 ATAAC | |
| Rating at 2,000 rpm | 272kw | 365HP |
| Fuel tank | ||
| Capacity | 775.1 | 200USGAL |
| Feed | ||
| Feed length, total | 7550mm | 25" |
| Travel length | 4600mm | 15" |
| Feed extention | 1300mm | 4.3" |
| Feed rate max. | 0.92m/s | 180 ft/min |
| Feed force, max. | 20 kN | 4496 lbf |
| Tractive pull,max | 30 kN | 6744 lbf |
| Tramming | ||
| Tramming speed, max. | 3.4 km/h | 2.1 mph |
| Traction force | 110 kN | 24729 lbf |
| Hill climbing ability | 20° | |
| Ground clearance | 405 mm | 16'' |
| Hydraulic Rotation unit | ||
| DHR45H | ||
| Rotation speed | 30-80r/min | |
| Torque,max | 2400nm | 1770lbf/ft |
| DHR48H-45 | ||
| Rotation speed | 30-80r/min | |
| Torque,max | 3250nm | 2400lbf/ft |
| Transport dimensions | ||
| weight,optional equipment | 18480kg | 40660lb |
| width | 2490mm | |
| length | 12700mm | |
| height | 3150mm | |
| length | 10300mm | |

Zhaoxing can help you to improve drilling efficiency and reduce the production cost.
1. Over 17 years practical drilling experience
2.Sold hundreds of drilling rig and air compressor

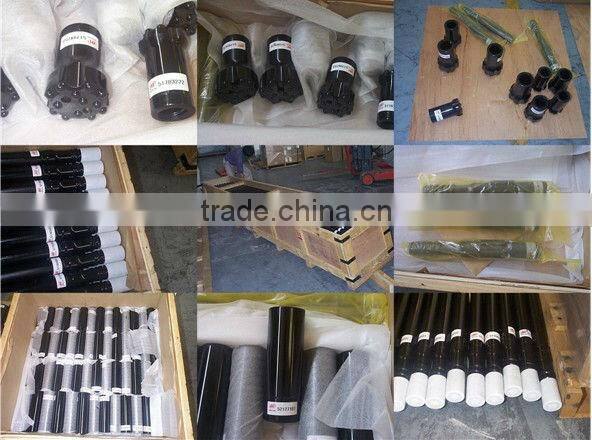

3. Continue to supply original spare parts and drilling tools
4. Provide professional drilling technical support

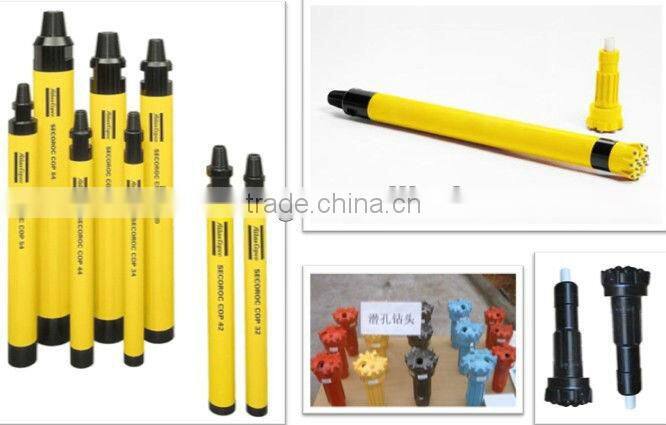

NO1.We can supply full range of drilling equipment to satisfy the requirements of the construction engineering and mine production.
Air compressor

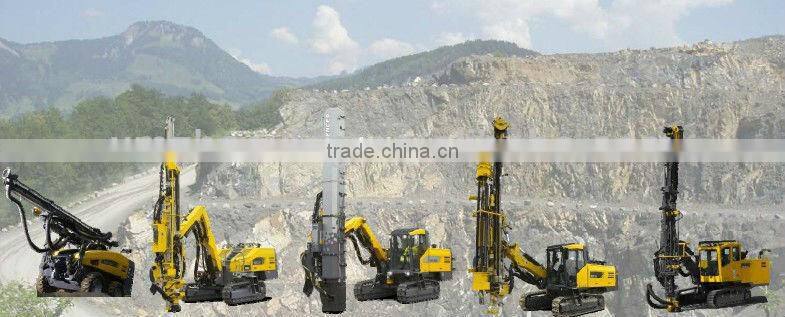

Drilling rig
NO.2 We are not only having 17 years rich practical experience, but also have a batch of long-term cooperation top machinery manufactory resource.We provide original spare parts and drilling tools.

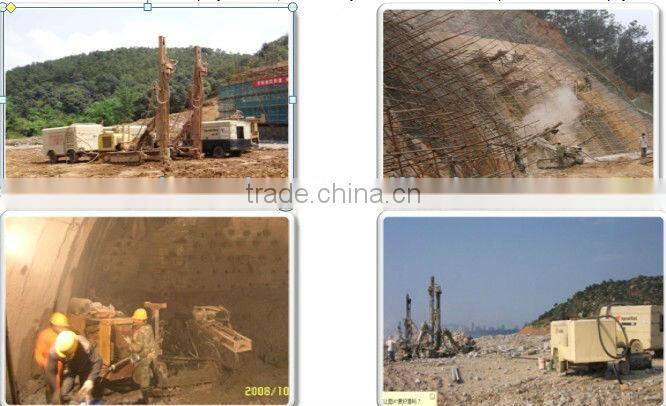

NO3.we have wide experience in mining, blast hole, anchor hole, geotherm hole. You can see our project case, and then you will believe our experience can help you.
When you want to purchase equipment, we can supply best configuration according to your project situation.
When you want to improve increase efficiency, we can supply reform project for you.
When you want to decrease drilling tool cost, we can supply good quality and low price product to you.
When your equipment need to repair, we can supply technical service.
In a word, if you cooperation with me, you will get benefit as soon as possible.
Our Certificate
Not only are we one of the premier suppliers of DTH equipment, we have also become specialists in solution based large diameter rock drilling packages, providing not only large diameter hammers and bits, but also shrouded drill pipes, helicoidal pipes and casing advancing systems. Working with you from tender stage to contract completion helps you get your projects completed on time and on budget.
