FN High Efficient Freon Refrigeration Equipment Air Cooled Condenser With Steel Plate and Sprayed Surface R404A,R407C,R134A

Specifications

FN Series High Efficient  Freon Refrigeration Equipment Air Cooled Condenser with Steel Plate and Sprayed Surface R404A,R407C,R134A

Introduction

Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments. Now we produce FN, FNS type and FNV type air cooled condenser, Air side outlet for FN&FNS type and Air top outlet for FNV type.

Features

1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;

2. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;

3. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;

4. Application for R22,R134a,R404a,R407C etc. refrigerant;

5. FNS condenser utilized large air volume and low speed internal motors with low noise,beautiful appearance; Application for refrigerant equipments which demand high requirements of noise;

6. FNV condenser have the features of large windward side, high quality heat exchange; external rotor motors used.

Models Specifications

FN     S ----- 80     A

FN: Condenser Products Code

S: Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)

80:Heat Exchange Area(m²)

A: Model Change Design Code

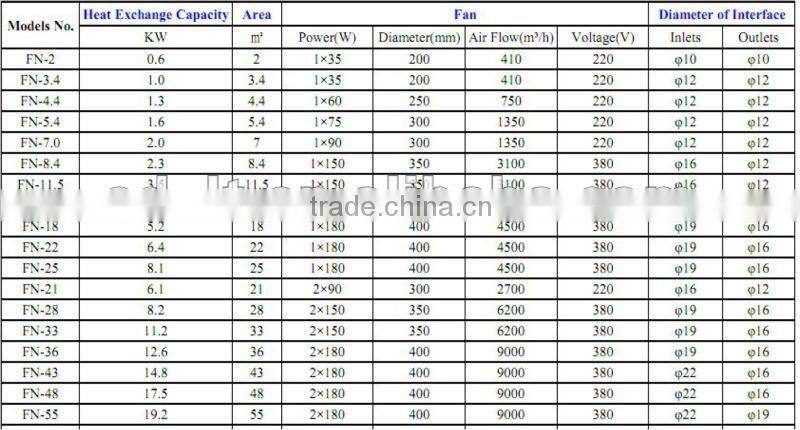

Technical Data

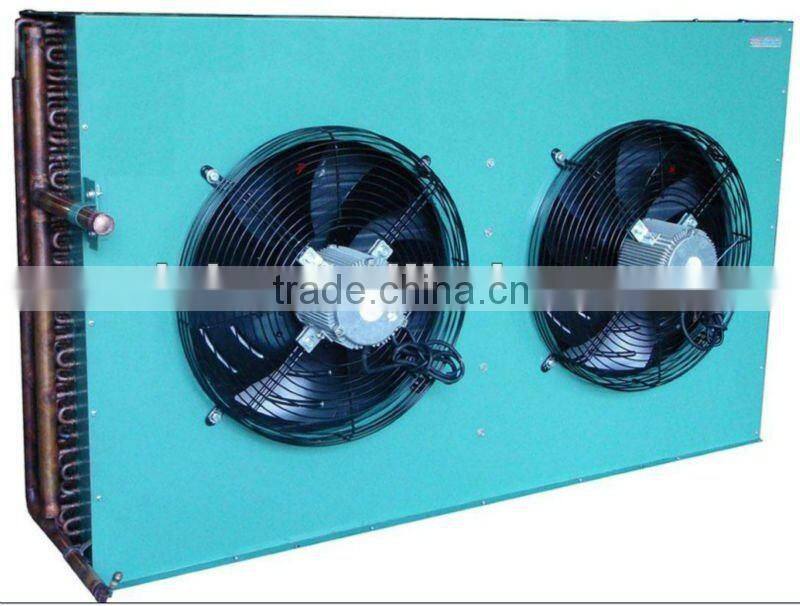

Products in Factory
