1.Introduction

Ceiling AP-V1.0 is based on Qualcomm Atheros QCA9531 chip. It’s up to 650mhz processor and support expand 5G WiFi orusb 3G/4G modem. Embedding 128MB RAM and 16MB ROM makes it quick launch wireless scenarios . Integrated high power PA and LNA , transmission distance is upgrade to farther.Ceiling AP-V1.0 can bepowered by PoE (802.3at/802.3af/Passive POE) or DC (9-48V).

Ceiling AP-V1.0 not only has a good reception sensitivity and high transmission power, greatly expand the scope of wireless coverage ,but also beautiful appearance, convenient installation, suitable for ceiling, wall and desktop set. With special ceiling mount design ,Ceiling AP-V1.0 is not only space-saving, but also gives you full WiFi experience free from all obstacles. Besides, it'sperfect match between the shell and the ceiling. Ceiling AP-V1.0is an ideal network solution for companies, hotels and other public places to extend WiFi range.

2.Functions

• Compatible with 2.4G IEEE 802.11b/g/n
• Compatible MiniPci-e 5G IEEE 802.11a/b/g/n/ac card
•  Wireless speed up to 300 Mbps
• Supports POE(802.3at/802.3af/Passive POE) power supply
• Compatible DC 9-48V/2A~0.5A power supply
• Support SSID based access user number restriction
• Compatible with usb interface GSM/3G/4G modem.
• Support MAC address filtering, IP address filtering, URL filtering, NAT forwarding rules.
• Support for automatic adjustment of wireless transmission rate.
• Practical and elegant ceiling mount design.

3.Environment

4.Specifications

5.Mechanical

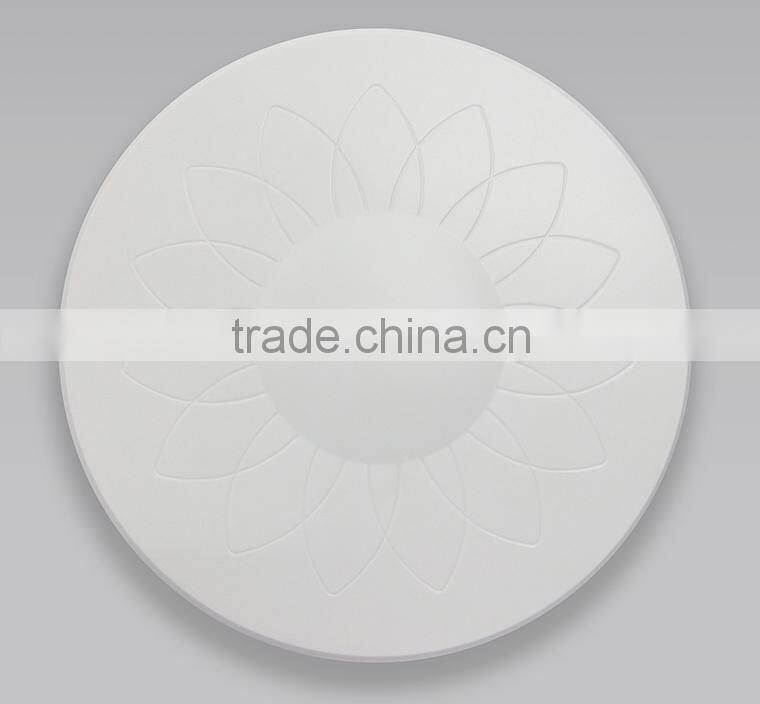

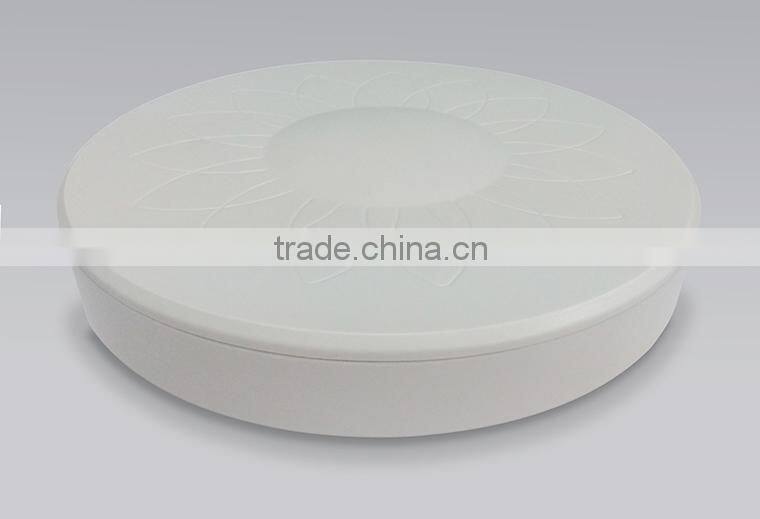

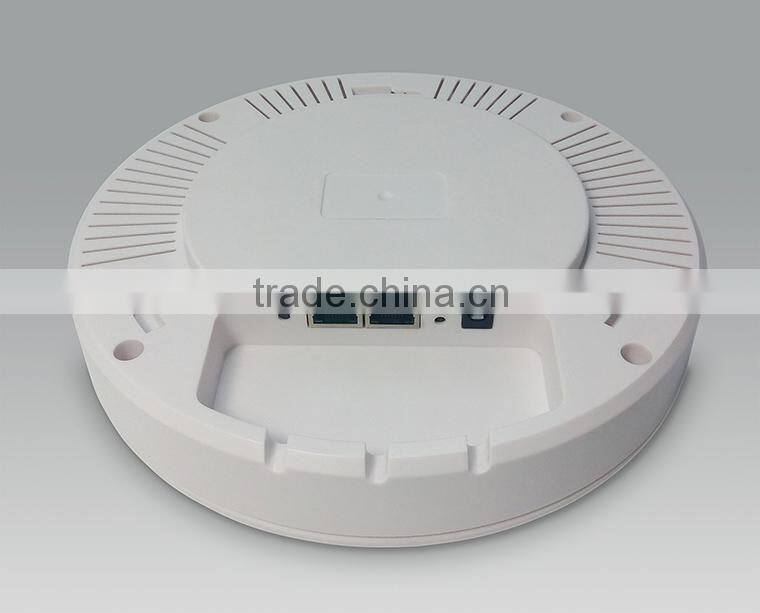

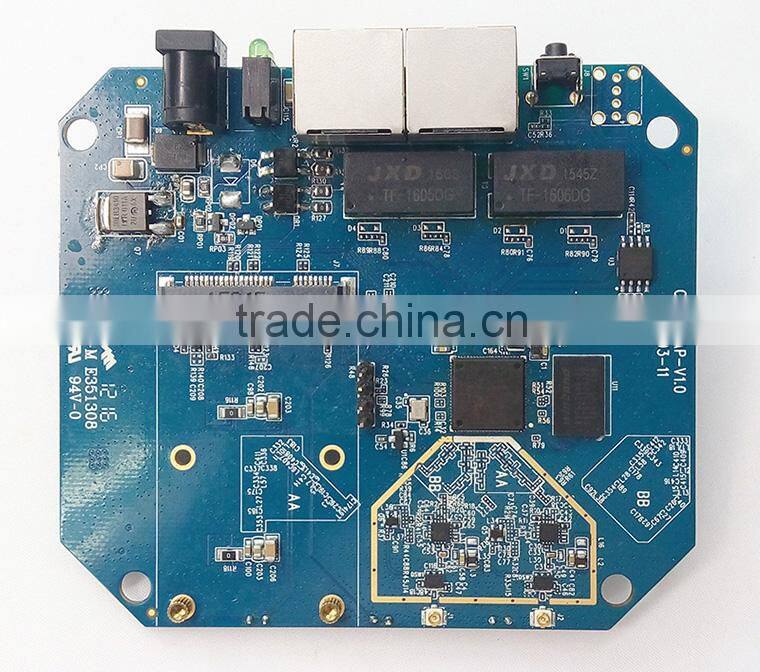

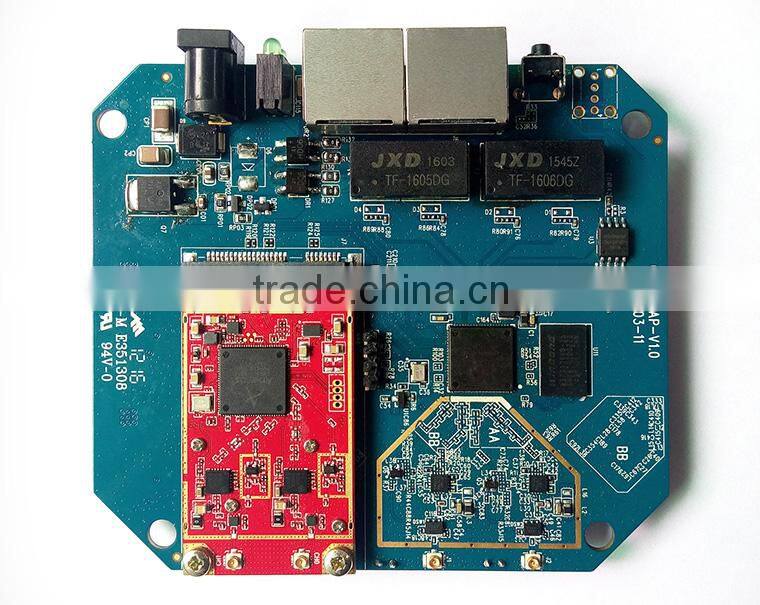

6.Photos

We can flash customer firmware, ODM customer baseboard or redesign whole board, we can make sure device fit FCC,CE and so on.  we can supply software design service.

We have ourself SMD lines(YG200,JUKI KE 2070 and so on). tester  instrument(Litepoint IQFLEX,IQview,IQ201X,IQxel, Agilen spectrum analyzer). assembly lines and so on.

This module sourcecode is open for everyone.  our tech supporter should try our best to help all customers.
