Product Details
| Material | Plastic PA66 | Brand | Krius | |
| Model | ZF ZQ |
Product Description
Conveyor Chain

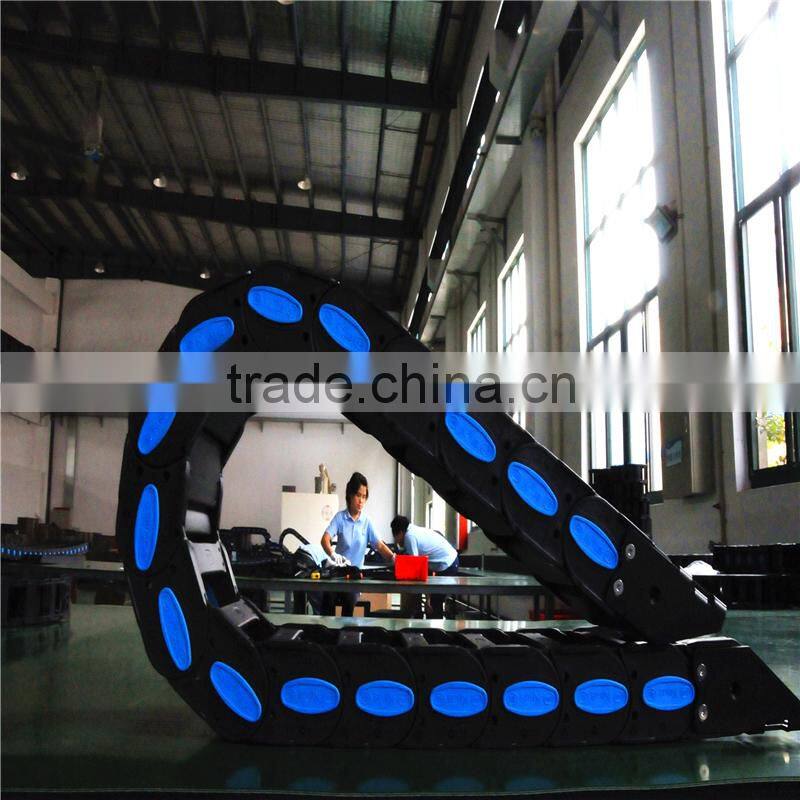

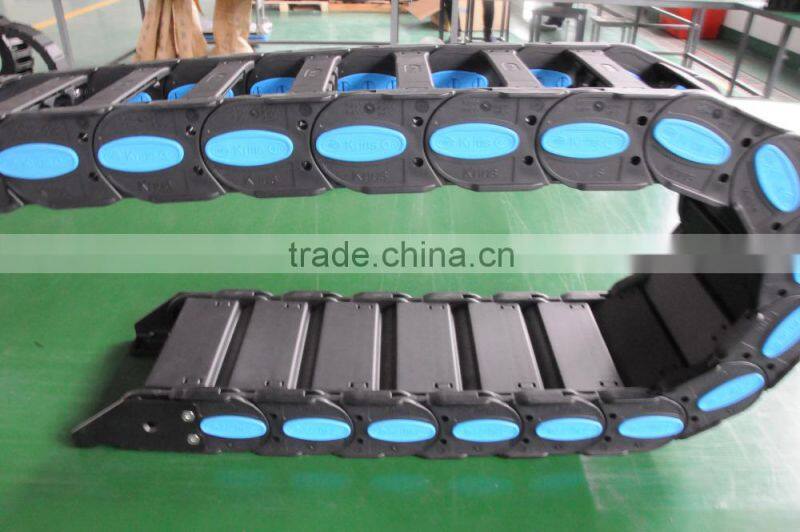

ZQ45 bridge plastic machine cnc drag chain
1)Bridge type cable chain


Benefits
·The structure design of the lock watch and four limit blocks make the cable chain stable.
It can bear greater pressure in unsupported long travel distance operation.
·It is suitable for side-mounted applications.
easier to assemble, tie wrap clamp optional
·The dustproof and scrap proof surfaces make the operation smooth.
Specifications
Item  | Inside height*inside width:mm  | Outside height*outside width:mm  | Bending radius (R):mm  | Picth(mm)  |
ZQ4575  | 45*76  | 68*113  | 100,125,150,175,200,225,250,300  | 81  |
ZQ45100  | 45*101  | 68*138  | 81  | |
ZQ45150  | 45*151  | 68*188  | 81  | |
ZQ45200  | 45*201  | 68*238  | 81  | |
ZQ45250  | 45*251  | 68*288  | 81  | |
ZQ45300  | 45*301  | 68*338  | 81  | |
ZQ45350  | 45*351  | 68*388  | 81  | |
ZQ45400  | 45*401  | 68*438  | 81  |
ZQ45 bridge plastic machine cnc drag chain features:
- Universal end brackets connected on different side
 Lids to prevent small scraps
The extremity structure design of the lock watch and four limit blocks,with high strengths and loads
The external and internal of main body ,meshing and containing connect
Special design for longer travel

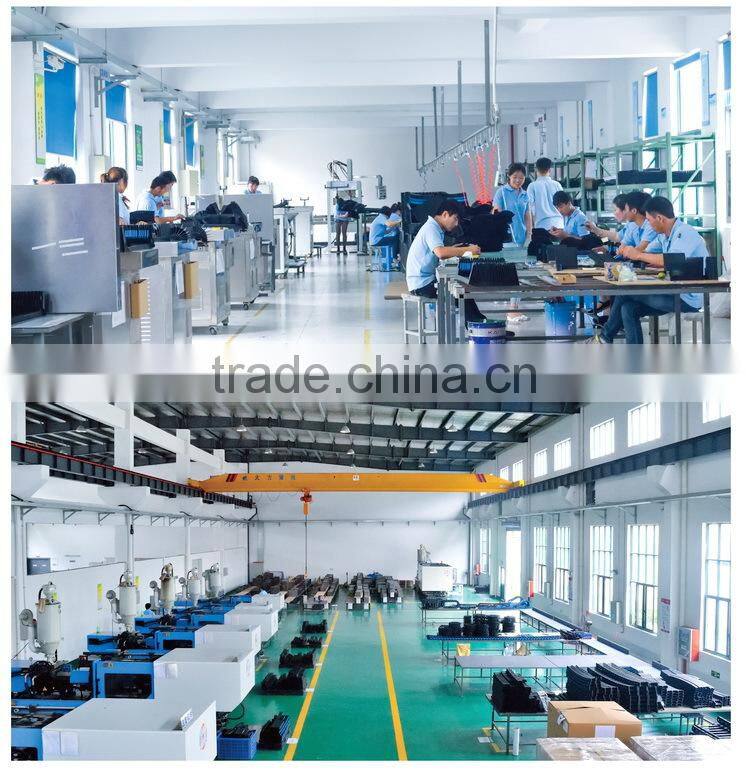

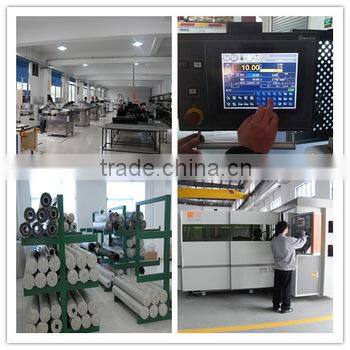

Our factory


Jangsu Krius Machine Partsnap Accessories Co,.Ltd is a Sino-US cooperation enterprise,specialized in manufacturing a series of high-quality cable chain, protective cover. All of the products are playing key roles in the machine operation and cable protection, so it can be called "resource for longer life".
 1.The factory size is more than 8000 square meter.
2.Krius has the advanced technology equipment .Till to now, we have many goods that already gain patent.
3.Materials of products are imported or purchased from the high-level overseas factory.
4.QC dept. has the product checked from the material to the shipping the whole processure
 5. Krius has passed the CE certification, ISO9001:2008, SGS quality inspection,Rohs test and is ready to anual aduit by BV
6.Our goods are becoming specialization and maturity gradually,Krius offers very competitive factory price
7.Free samples can be available in a very short time during engineering stage.
8.Convenient Transportation:Kunshan link Shanghai and Suzhou, only 1 hours from Kunshan to Shanghai Hongqiao airport.
Trade Shows and our customer visitor factory
Our service clients

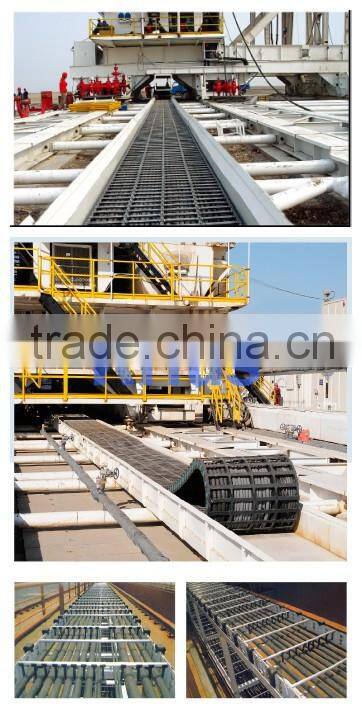

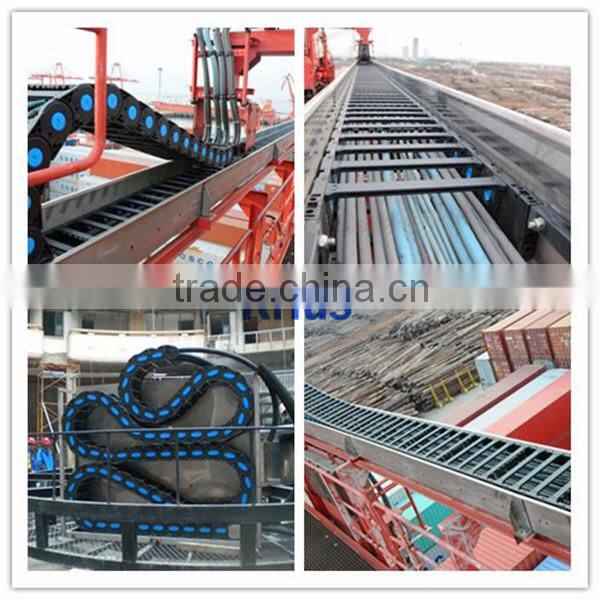

Our product application
Applications  | |
1  | Cleanroom  |
2  | Printing machines  |
3  | Material handling  |
4  | Robotics  |
5  | Machine tools  |
6  | Measuring equipment  |
7  | Semiconductor industry  |
8  | Medical technology  |
9  | Electronics  |
10  | General machine  |
