Home > Products > Button Attaching Sewing Machine > NT-1903A Computerized-Controlled High-Speed Lockstitch button sewing machine

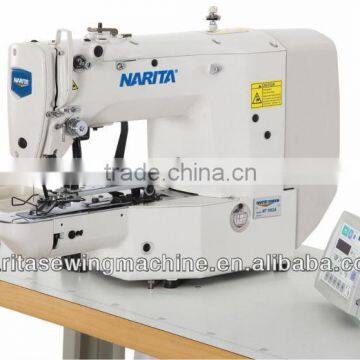

NT-1903A Computerized-Controlled High-Speed Lockstitch button sewing machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port NINGBO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Industrial Sewing Machine
Place of Origin	Zhejiang, China	Brand Name	NARITA
Model Number	NT-1903A	Stitch Formation	Other, Button Attaching Machine
Mechanical Configuration	Cylinder-Bed	Max. Sewing Speed	2700rpm
Max. Sewing Thickness	13mm	Stitch Length	10mm
Power	320W	Overall Dimensions	780 * 360 * 550mm
Feed Mechanism	Manual	Certification	CE

Product Description

Specifications

Juki series 1903 button sewer machine
Computerized with panel,
With servo motor
Button clamp replacement is convenient.

Computerized-Controlled High-Speed Lockstitch button sewing machine

NT 1903A

NARITA BRAND

High-efficiency production Performance

The series realizes the globally maximum sewing speed of 2700rpm;

The high-speed performance allows quick sewing start and stop,and The high-speed thread trimming and high presser foot lifting speed significantly reduce the duration of sewing cycle.

Our bar tacking machine 1900A,control system can be exactly same with the original JUKI machine 1900A. With perfect quality, the machine is very popular by our customers.

1:Ensuring performance and productivity,sewing area, a wide variety of bar tack patterns can be realizing.

2: Set the tension of thread just according to control panel. Advanced dry-head and free oil,

thread scatch mechanism, which prevent thread lose when start sewing.

3: The machine can make different patterns just according to the operation panel.

4: The computer controlled servo motor, direct driving motor make the machine can start and stop quickly,

which reduce the cycle time by enhancing the cutting speed and press foot lift.

Specification

Model name	NT-1903A
Max. sewing speed	2,700rpm
Button size	Type: Round-shaped, flat button Size: φ8~φ33mm
Stitch length	0.1~10mm (0.1mm step)
Lift of the work clamp	Max. 13mm
Number of standard patterns	50 patterns
Number of data that can be input	200 patterns (for up to 150 patterns, sewing data can be added)
Memory medium	EEP-ROM / EP-ROM
Button feed mode	Automatic feed mode, non-feed mode, and small-lot sewing mode
Needle	DP×18 (#14). DP×5 (#11.#14) DP×17 (#21.)

DETAIL OF MACHINE
