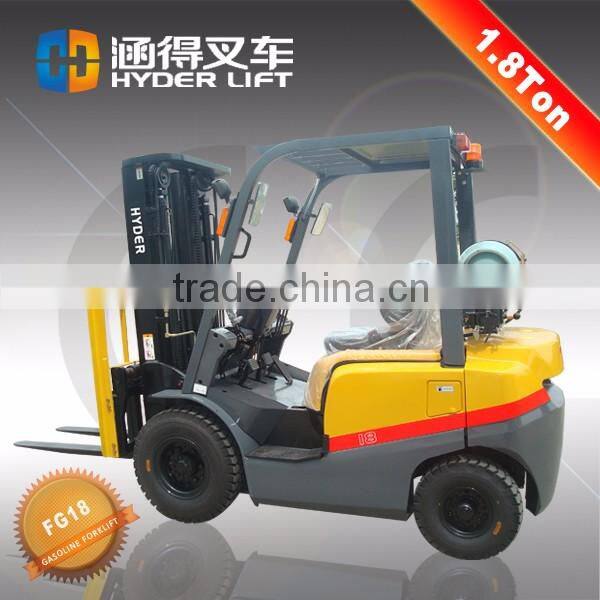

Pneumatic Water Pump Gasoline Forklift 1.8t Trucks for Sale With Japanese Engine
- Shanghai Port
- T/T L/C D/P D/A Credit Card
You May Like
-
CHINA TOP10 MANUFACTURER Forklift 2.5 Tons Gasoline Forklift Trucks for Sale With Imported Accessories
-
Forklift Hydraulic Oil Hot Sale 2 Ton Gasoline Lifter Machine
-
High Quality Parts Gasoline China Price of 2t Forklift
-
Pallet Truck ce Parts 2t Gasoline Mini Tractor
-
Mechanical Training 2ton Gasoline Forklift With Spare Parts China
-
New Condition Forklift 2ton Gasoline Forklift Counter Weight
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | HYDER | Model Number | FG18 | |
| Type | Powered Pallet Truck | Power Souce | Gasoline Engine | |
| Rated Loading Capacity | 1800kg | Max. Lifting Height | 6000mm | |
| Min. Lifting Height | 3000mm | Fork Length | 920mm | |
| Fork Width | 100mm | Overall Dimensions | 2275*1070*1995mm | |
| Certification | CE/ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |

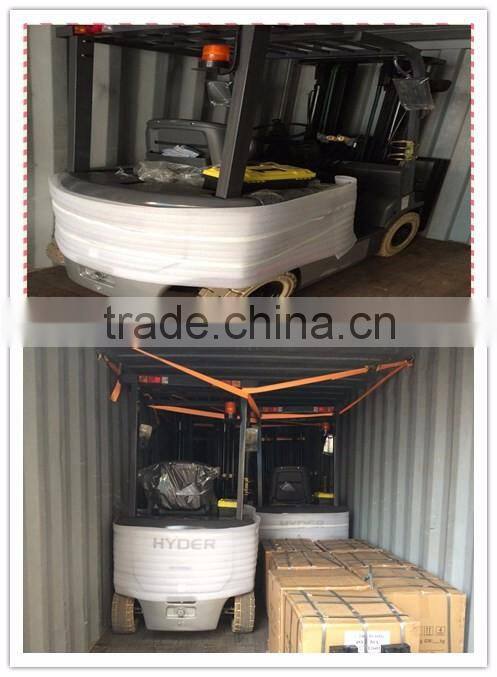

seaworthy packing for export
pneumatic water pump gasoline forklift 1.8t trucks for sale with Japanese Engine
Product Description
pneumatic water pump gasoline forklift 1.8t trucks for sale with Japanese Engine
Features:
1.cleaner,more efficient engines
2.easy maintenance
3.easier entry aand exit form an extra-wide step
SPECIFICATION:
| |||||||||||
| 1 | Manufacturer | HYDER FORKLIFT | |||||||||
| 2 | Model | Power shift T/M | FG18T | ||||||||
| 3 | Load capacity | kg | 1800 | ||||||||
| 4 | Load center | mm | 500 | ||||||||
| 5 | Power unit | Gasoline/LPG | |||||||||
| 6 | Operator type | Driver/seat | |||||||||
| 7 | Tire type | Front/rear | Pneumatic | ||||||||
| 8 | Wheel | Front/rear | 2/2 | ||||||||
| 9 | Max. lifting height | mm | 3000 | ||||||||
| 10 | Free lift | mm | 155 | ||||||||
| 11 | Fork size | L*W*T | mm | 920*100*35 | |||||||
| 12 | Tilt range | Mast forward/backward | deg | 6/12 | |||||||
| 13 | Overall length(without fork) | mm | 2275 | ||||||||
| 14 | Total width | mm | 1070 | ||||||||
| 15 | Mast height (fork lowering) | mm | 1995 | ||||||||
| 16 | Overall height fork raised | With backrest | mm | 4045 | |||||||
| 17 | Height to head guard | mm | 2060 | ||||||||
| 18 | Turning raduis(outside) | mm | 2070 | ||||||||
| 19 | Front face of fork to front axle | mm | 395 | ||||||||
| 20 | Min. right angle stacking aisle | without load length&clearence | mm | 2465 | |||||||
| 21 | Speed | Max Travelling full/no load | km/h | 14/14.5 | |||||||
| 22 | Lifting full/no load | mm/s | 420/450 | ||||||||
| 23 | Lowering full/no load | mm/s | 330/520 | ||||||||
| 24 | Max.drawbar pull | Power shift T/M full/no load | kg | 1420/690 | |||||||
| 25 | Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/17 | |||||||
| 26 | Truck weight | kg | 2740 | ||||||||
| 27 | Weight distribution | Full load front/rear | kg | 3930/560 | |||||||
| 28 | No load front/rear | kg | 1050/1690 | ||||||||
| 29 | Tires | Number | front/rear | 2/2 | |||||||
| 30 | Model | front axle | 6.50-10-10PR | ||||||||
| 31 | rear axle | 5.00-8-10PR | |||||||||
| 32 | Wheelbase | mm | 1425 | ||||||||
| 33 | Tread | Front/rear | mm | 890/900 | |||||||
| 34 | Ground clearence | At lowest point(mast) | mm | 115 | |||||||
| Frame | mm | 105 | |||||||||
| 35 | Brake | Service brake | Hydraulic-foot pedal | ||||||||
| Parking brake | Mechanical-hand lever | ||||||||||
| 36 | Battery | Voltage/capacity | V/AH | 12/60 | |||||||

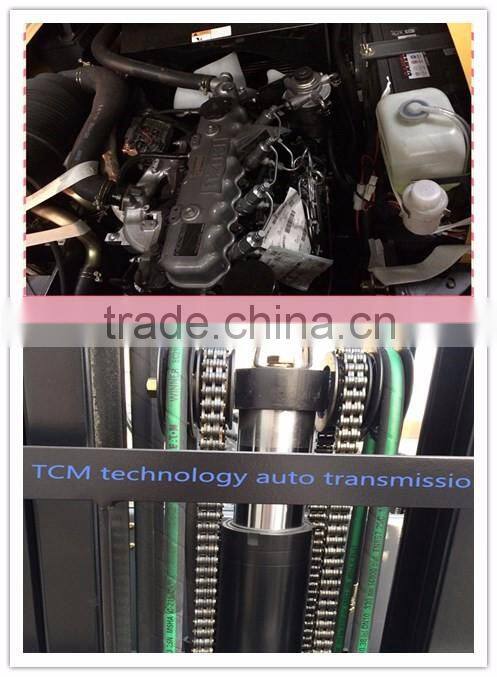

| 37 | Engine | Model | NISSAN K21 | ||||||||
| Rated power | PS(kw/rpm) | 31.2/2250 | |||||||||
| Rated torque | kg-m max.(N.m) | 143/1600 | |||||||||
| Number of cylinders | 4 | ||||||||||
| Emission | L | 2.065 | |||||||||
| Fuel tank capacity | L | 50 | |||||||||
| 38 | Transmission | Speed forward/backward | Power shift T/M | 1-1 power shift T/M | |||||||
| 39 | Operating pressure | Hydraulic system pressure | kg/cm² | 180 | |||||||

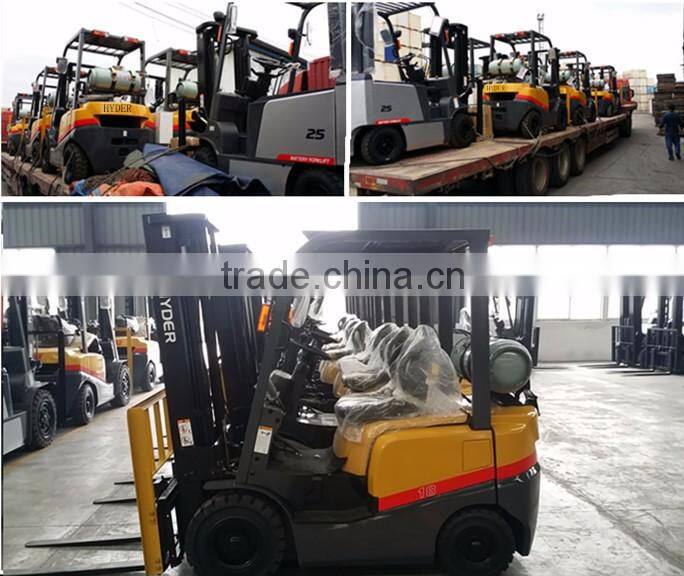

Detailed Pictures:
