Home > Products > Impact Mill > Energy-saving Grinding Mill, Mill Grinding Equipment With CE
Energy-saving Grinding Mill, Mill Grinding Equipment With CE
- Qingdao Port
- T/T
You May Like
-
Widely Used Vertical Grinding Mill Series ACM With Large Capacity
-
Widely Used Vertical Grinding Mill With Large Capacity
-
Widely Used Single Rotor Impact Mill With Large Capacity
-
Energy-saving Grinding Mill, Medium Speed Grinding Mill With CE
-
German Technical High Quality Mineral Milling Machinery
-
High Performance Convenient Containance Mill Grinder Machine
Product Details
| Condition | New | Type | Pulverizer | |
| Place of Origin | Shandong, China | Brand Name | SHINA | |
| Model Number | ACM | Voltage | Suitable for local voltage | |
| Power(W) | 13.2-237 | Dimension(L*W*H) | differnet | |
| Weight | different | Certification | CE ISO | |
| Warranty | 18 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Features:

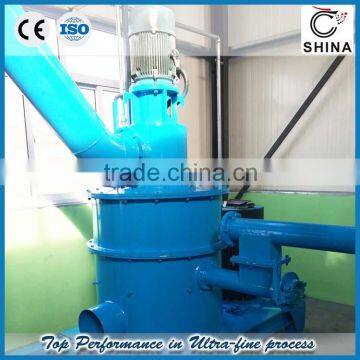

Ultra-fine Impact Mill ACM series is a reflective-type vertical mill. Classifying equipment is set in comminution chamber. Airflow transfers comminuted material to classifier for collection. Classifying equipment replacing traditional screen, functions both comminution and classification process, resulting high efficiency.
- Airflow control valve and classifying wheel stepless speed governor ensures particle size adjustable without stopping the machine. Furthermore, fines can be recovered, no environment pollution.
- Cooling function of this machine keep the temperature-rise low during comminution, which is specially applied for thermal-sensitive and fibrous materials. Product fineness is well-distributed.
- Convenient for maintenance, operation and cleaning; big capacity
- New type V-belt as transmission is specialized by great transmission power, stable running and high efficiency.
Advantage:
Water-cooling Jacket Outside
Water-cooling jacket is design outside of the grinding tube to low down the temperature when running
Ceramic Protection
Grinding plate and hammer head can be ceramic coated for higher hardness feed mateial

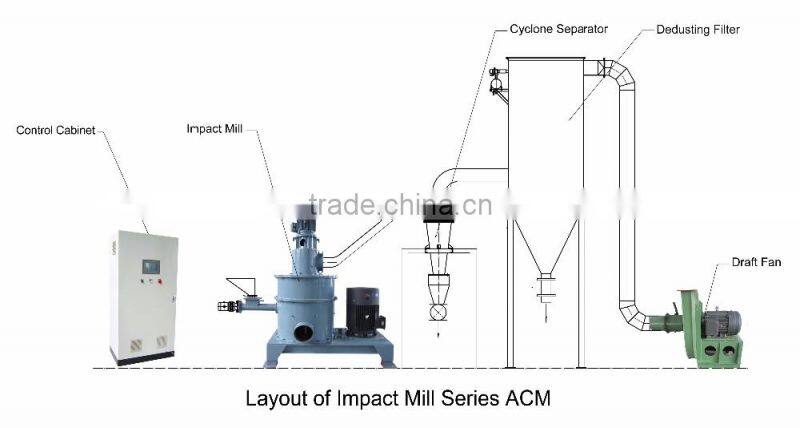

Automatic Production Line
The system is controlled by frequency converter. One- two workers can operate the whole production line.
Technical Data:
Note: 1. Capacity depends on material properties and final product fineness
2. Product Fineness is adjustable according to different technical data
1.Nonmetal ores:
Coarse whiting, light calcium, calcium oxide, kaolin, barite, mica, quartz, talc, wollastonite, bentonite, potassium feldspar, andalusite, brucite, montmorillonite,etc
2.Chemical materials:
alumina, aluminum hydroxide, magnesium oxide, magnesium hydroxide, zinc oxide, precipitated barium sulfate, flame retardants, fiber, etc
3.New materials:
functional ceramic material, high purity silicon materials, fluorescent powder, glass beads reflective material, electric light powder, etc...
4.Pharmaceutical and food:
traditional Chinese medicine (TCM) : angelica, green tea, and west shawl, salvia miltiorrhiza, ganoderma lucidum spore
5.Pesticides:
herbicides, fungicides, pesticides and wettability powder, mildew antibacterial agent, pyrazole insect flies, organism amidine, carbendazim, clotrimazole, probenazole, etc
6.Battery material:
cobalt acid lithium, manganese acid lithium, lithium iron phosphate, nickel and cobalt acid lithium cobalt, nickel manganese acid lithium
7.Super hard material:
silicon carbide (black, green), boron carbide, diamond, white corundum, zircon sand, zirconia, rare earth polishing materials, tungsten carbide,
8.Metal powder:
aluminum powder, copper powder, zinc powder, iron powder, tin powder, cobalt powder, nickel powder, tantalum, niobium powder,
9.Ceramic building materials:
Ultrafine cement, water, slag, fly ash, bituminous, gypsum, slag, quick lime, silica fume, glass powder, etc
10.Other materials:
fluorescent pigments, iron oxide red, chrome oxide green, phthalocyanine cobalt blue, zinc oxide, lithopone, benzidine orange, toluidine red, vermilion, mica titanium pearl pigment, dyes, fluorescent whitening agent, wax coal, clay, electronic waste, fir skin, moss, garbage, soap, wax, etc
Above information are for referrence, for more information, please do feel free to contact us at once!
Packaging Solutions：
1. Nude Packing 2. Wodden Box Packing 3. Wooden Pallet
Delivery Photos (Parts)：
Outside and Inside of Our Factory:
Our Kinds of High Precision Machining Equipments:
1. Why choose QINGDAO SHINA as supplier?
A: QINGDAO SHINA has a perfect team with more than 20 years experience. Technology of QINGDAO SHINA is original from Germany. What customers get from QINGDAO SHINA is not only one set of machine, but together with know-how.
2. What should I do if I want to start a new project or extent production, but I have no idea what
should I do at the beginning?
A: Please send email to QINGDAO SHINA and tell QINGDAO SHINA your situation of the project, QINGDAO SHINA will supply one feasibility study report together with detailed proposal and technical suggestions only for your project.
3. How about the quality of machine manufactured by QINGDAO SHINA?
A: QINGDAO SHINA business concept is: "Start a career with essence, win through high quality". QINGDAO SHINA follows the principle of “quality is most important” when manufacturing each machine. Besides, QINGDAO SHINA decides to lengthen quality guarantee of each machine or production line to 1.5 years so that customers can use machine without worry.
4. How about the after-sales service of QINGDAO SHINA?
A: QINGDAO SHINA has a good after-sales service team, all the engineers in the team has more than 10 years experience. QINGDAO SHINA can promise that after the machine arriving at customer' s factory, we will arrange our engineer in time accordingly to make installation. Commissioning and test run. QINGDAO SHINA’s customer service concept is: customers are always the first!
5. How can I start the machine when getting machine?
A: QINGDAO SHINA will arrange engineers with rich experiences to customer’s factory for installation, commissioning and test run. After then, engineers will make training for workers about how to start machine or production line until workers can start machine very good alone.
6. If there are some problems or questions during running machine or production line, what should I do?
A: Please call QINGDAO SHINA in time if you have any questions during production. QINGDAO SHINA will reply customers in time to make sure the production won’t be delayed.
How to get one detailed proposal offer?
