Powder Grinder
- Qingdao Port
- T/T
You May Like
Product Details
| Condition | New | Type | Other, JET MILL | |
| Motor Type | AC Motor | Power(W) | 3000~60000 | |
| Place of Origin | Shandong, China | Brand Name | SHINA | |
| Model Number | QWJ | Dimension(L*W*H) | different | |
| Weight | Different | Certification | CE,ISO | |
| Warranty | 18 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
powder grinder
PROCESS
Clsssifier mill consisting of fluid bed opposed jet mill with integrated turbo classifier(s) for highest applications with best top cut and steep particle size distribution.
There are a variation of application as mainly:grinding,classifying,homogenisation,selective operation,drying,surface treatment,and many others.
The fluid bed opposed jet mill can be combined with single wheel classifiers or multi-wheel classifier.
FEATURES
- Fluidbed opposed jet principle
- Integrated turbo classifier as single wheel or multi-wheel
- Products free of oversize
- Steep particle size distribution
- Multifunction
- Special nozzle configuration
- Loss in weight system
- Laboratory system available
- Contamination free processing
- Cyrogen,inert,hot gas solutions
Abrasive products,sticky products,mineral fillers, ceramic fillers,food,chemical products and other powders.
Type Parameters | QWJ03 | QWJ06 | QWJ10 | QWJ20 | QWJ40 | QWJ60 | QWJ80 | QWJ120 | QWJ160 | QWJ240 | QWJ320 |
Product Fineness D97: μm | 3~100 | 3~100 | 3~100 | 3~100 | 3~100 | 3~100 | 3~100 | 3~100 | 3~100 | 3~100 | 5~100 |
Grinding air m3/min | 3 | 6 | 10 | 20 | 40 | 60 | 80 | 120 | 160 | 240 | 320 |
Air Pressure Mpa | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 | 0.7~1.0 |
Motor output kw | 3 | 6 | 4 | 5.5/7.5 | 15 | 18.5 | 5.5×4/22 | 15×3 | 15×4 | 15×6 | 30×3 |
Note: 1. Capacity depends on material properties and final product fineness.
2. Product fineness is adjustable.
Quality guarantee is for 18 months. During 18 months, if there is any problem or destroy (non-artificial damage), we will repair or change for free. After 18 months, if there is any problem, we will still supply good service, and we will charge cost if parts needed to be changed.
- Flow sheet of the process - Electrical interlocking sequence - Dimension drawings for supplied equipment - Operation manuals - Technical information and specification for local supply - Engineering drawings for local supplies - Technology data and drawings for installation and commissioning - Spare parts list
Details of jet mill :
well welding of pipings and flanges:
Perfect Nozzle made by CNC Center

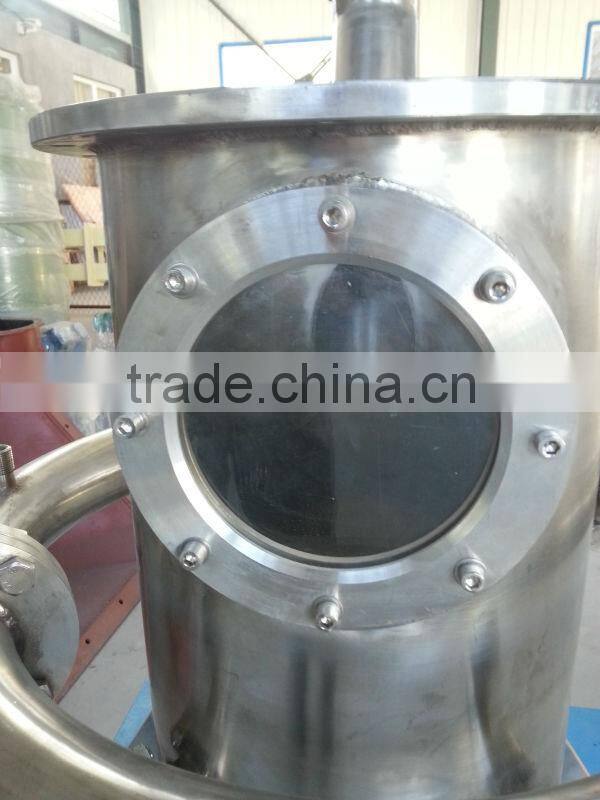

Inspection hole ( can see the material being grinding from here):
Other Main Products
Q &A:
1. Why choose QINGDAO SHINA as supplier?
A: QINGDAO SHINA has a perfect team with more than 20 years experience. Technology of QINGDAO SHINA is original from Germany. What customers get from QINGDAO SHINA is not only one set of machine, but together with know-how.
2. What should I do if I want to start a new project or extent production, but I have no idea what should I do at the beginning?
A. Please send email to QINGDAO SHINA and tell QINGDAO SHINA your situation of the project, QINGDAO SHINA will supply one feasibility study report together with detailed proposal and technical suggestions only for your project.
3. How about the quality of machine manufactured by QINGDAO SHINA?
A. QINGDAO SHINA business concept is: “Start a career with essence, win through high quality”. QINGDAO SHINA follows the principle of “quality is most important” when manufacturing each machine. Besides, QINDAO SHINA decides to lengthen quality guarantee of each machine or production line to 1.5 years so that customers can use machine without worry.
4. How about the after-sales service of QINGDAO SHINA?
A. QINGDA SHINA has a good after-sales service team, all the engineers in the team has more than 10 years experience. QINGDAO SHINA can promise that after the machine arriving at customer’s factory, we will arrange our engineer in time accordingly to make installation. Commissioning and test run. QINGDAO SHINA’s customer service concept is: customers are always the first!
5. How can I start the machine when getting machine?
A. QINGDAO SHINA will arrange engineers with rich experiences to customer’s factory for installation, commissioning and test run. After then, engineers will make training for workers about how to start machine or production line until workers can start machine very good alone.
6. If there are some problems or questions during running machine or production line, what should I do?
A. Please call QINGDAO SHINA in time if you have any questions during production. QINGDAO SHINA will reply customers in time to make sure the production won’t be delayed.
