Home > Products > Air Classifier > Superfine Mineral Powder Grinding System Air Flow Powder Classifier Separator

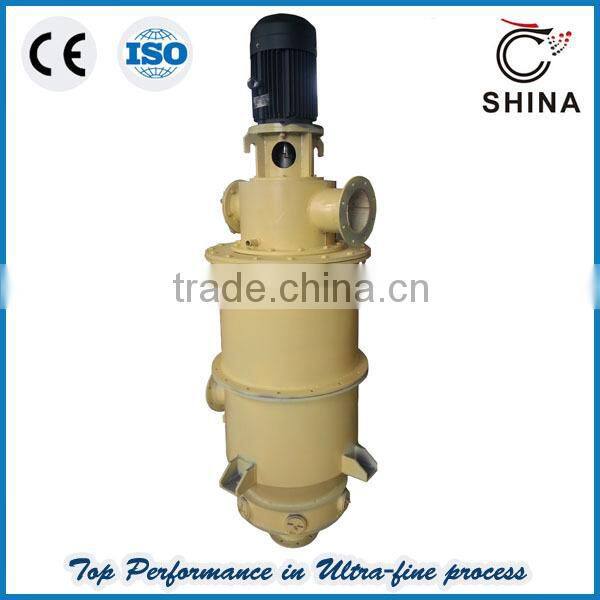

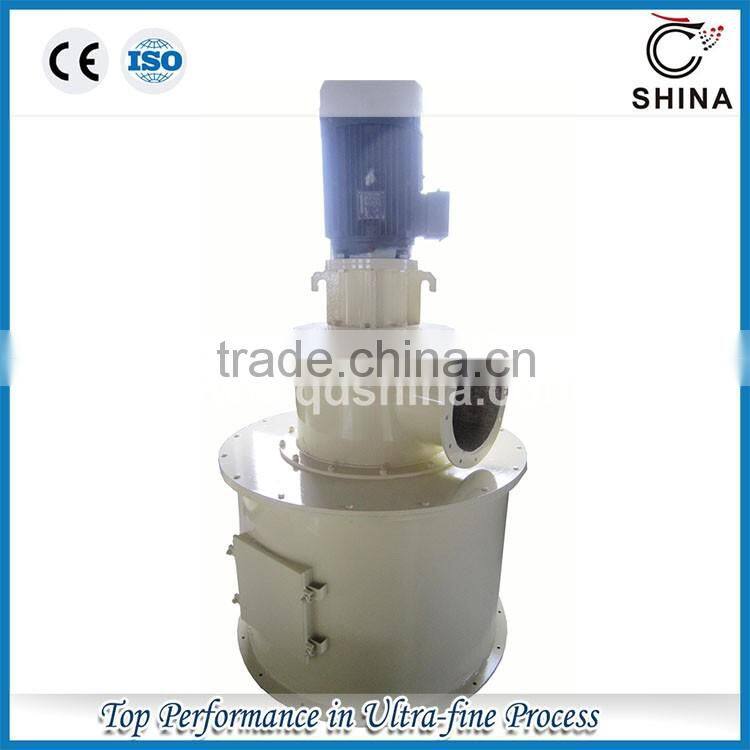

Superfine Mineral Powder Grinding System Air Flow Powder Classifier Separator

FOB Price

US$ 6,000 - 70,000 / Unit

1 Unit(Min. Order)

Port Qingdao Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Gravity Separator
Production Capacity	98%	Place of Origin	Shandong, China
Brand Name	SHINA	Model Number	ITC
Voltage	Suitable for the local voltage	Power(W)	4000-90000
Dimension(LWH)	different	Weight	different
Certification	CE cerficated,ISO9001:2008	Warranty	18 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Process:

ITC air classifier is designed for fine classification in the range of 5~150μ.

This type of classifier belongs to the family of turbo classifier.

The classifier ITC is a so-called deflecting wheel separator.

The feed material is transported “airborne” by the primary air into the classifying chamber.

The secondary air, entering the classifier chamber via a ring of guide vanes, has to disperse agglomerates.

Mainly the classifier is integrated in a grinding-classifying circuit.

For this application a high feed rate with a good yield is assured.

The materials of construction are selected for highest strength during production.

The wheel is placed in a vertical position to get a good dispersion of the feed product.

The machines of the series ITC can be protected against wear.

Feature:

- Fine classification with high performance

- Direct and belt drive

- Feed in the classifying zone by air

- Adjustment of cut point by variable rotor speed

via frequency converter

- High feed rates possible

- Construction materials mild steel, stainless steel or wear protected

- The solid construction and the selected materials of construction give a long life time with low maintenance costs and low investment

Advantage:

Higher Capacity

Special designed for coarse final product with higher capacity. Secondary air design improves the classifying efficiency.

Higher Hardness Material

Inside are easy for wear-resistant with kind of material, which can be suitable for material with higher hardness.

Higher Flexible Design

According to customers' workshop height, the motor driven way can be direct or belt. Inlet also can from top or from bottom.

Technical Data:

Parameter Type	Product Fineness (D97 um)	Throughput (t/h)	Motor Powder (KW)	AirFlow (m³/h)
ITC 132	5~150	0.01~0.1	4	600
ITC 200	5~150	0.02~0.2	5.5	1500
ITC 300	5~150	0.2~1	7.5	2500
ITC 360	6~150	0.8~2.5	11	3500
ITC 450	8~150	1.5~5	18.5	5500
ITC 550	8~150	2.5~6	22	7500
ITC 600	8~150	4~10	30	1000
ITC 750	8~150	6~12	37	15000
ITC 900	10~150	8~15	45	22000
ITC 1000	15~150	12~20	55	28000
ITC 1250	18~150	20~35	75/90	45000

Note: 1. Capacity depends on material properties and final product fineness
2. Product Fineness is adjustable according to different technical data

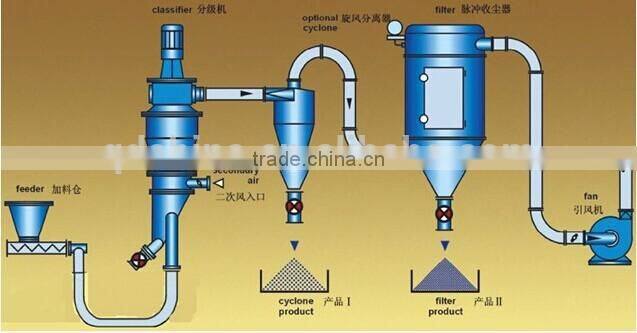

Layout of air classifier series ITC

Customer Reference

Customers Say

“I do rear earth polishing powder business for more than 20 years. After I visit Qingdao shina factory, and checking the quality of air jet mill and other machines, I made decision to buy from Qingdao shina. Now, in my workshop, there is one set of air jet mill QWJ10 production line and one set of air classifier IMC 100 production line. Both of them are running very well. Thank Qingdao shina for its good quality and service. ”

--- Mr. Yu from taian, Shandong, China

“Good design, professional technology, great service, Qingdao shina—not one big factory on factory size, but its powerful on technology is really strong. Wish we can cooperate with each other again.”

--- Mrs. Mistakidou from Greece

“I bought many machines from China. But Qingdao shina really gives me great impression. They use good materials for each parts, they won't delete each small “machinery process”, like fire-treatment for some parts to make sure its quality. I have bought one unit of air classifier ATP315 for GCC powder and draft fan, one set of air jet mill QWJ20 production line for talc powder. I recommend QINGDAO SHINA.”

--- Mr. Muhammad from Pakistan

Packing & Delivery

Packaging Solutions：

1. Nude Packing 2. Wodden Box Packing 3. Wooden Pallet

Delivery Photos (Parts)：

WorkShop

Outside and Inside of Our Factory:

Our Comfortable Office:

Our Kinds of High Precision Machining Equipments:

After-sales Service

After-sales Service:

We have one good after-sales team.

All the engineers have experience more than 5~10 years and can speak very good English.

We supply services for engineering, consultancy, supervision erection and commissioning with test run.

We will reply customers within 24 hours as soon as possible to solve problems.

Quality Guarantee Period:

All the machines will be checked carefully and empty running before delivery.

If the machine is damaged because of the design, manufacture or the materials of the machine within one and half year, we will repair it or change the parts for free;

If the machine is damaged because of man-made cause or outside the warranty period, we will also provide warmly service, and we only charge the cost of parts if necessary.
