Best Selling Welded Bar Grating and Flooring Steel Bar Grating Price
- China Main Ports
- T/T
You May Like
-
Customized Factory Bar Grating and Standard Welded Steel Bar Grating
-
Customized Metal Bar Grating and Painting Mild Steel Bar Grating
-
ISO9001 Galvanized Steel Bar Grating Price and Lowest Price Steel Bar Grating
-
ISO9001 Plain Bar Grating Weight and dm Bar Grating Made in China
-
Customized Press-locked Bar Grating and High Quality Flat Bar Grating
-
Customized Anti Slip Bar Grating and Light Structure Steel Bar Grating
Product Details
| Place of Origin | Hebei, China | Brand Name | TUOFANG | |
| Model Number | Steel bar grating | Material | Steel |
Product Description

Surface treament: galvanized or powder coated
Color : Black,white,grey,blue,green,,yellow,red
Material : carbon steel,aluminum,stainless steel

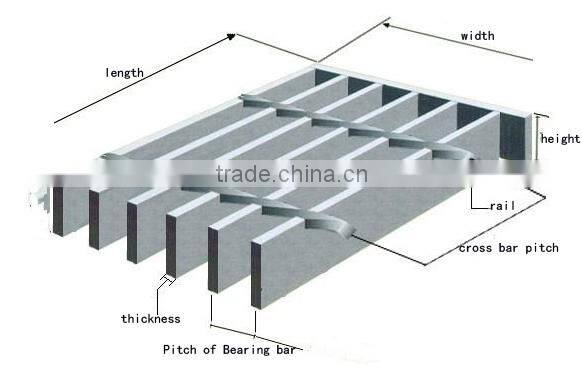

Size : bearing bars pitch can be set to 12.5,15,20 or n*30mm(n=1~5),cross bars pitch can be set to 50 or n*100mm,(n=1~5),we also can manufacture special pitch according to clients
Advantage :
- Save 28%-30% raw materials
- High dimensional accuracy
- Attractive appearance
- Have strong load ability
- Capable design can make grating customized according to site requirement
- Material Stainless Steel
- Reasonable price
Specification:
Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
3 | 60 | 50 |
| G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Why choose us?
Anping Tuofang Metal Product Co, Ltd. integrates wire mesh research, development, production, sale and after-sales service. We are one of the comprehensive metal product manufacturing companies in the field. TUOFANG is a young, professional, stylish and vibrant high-quality team. We will have good cooperation with our customers. We aim to meet customers' needs (Customer standards is our standard) and have highly efficient cooperation with clients.
Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet.
We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
Come and choose TUOFANG and share the success!
1. Q:Can I get some samples?
A:Yes , we can supply the free sample , but the shipping cost be paid by our customers.
2. Q:Is there a discount?
A:Different quantity has different discount.
3. Q:How about delivery leadtime.
A:Delivery leadtime :about 7-10 days after confirmed.(Chinese holiday not included)
4.Q:What is the payment terms ?
A:30% by T/T in advance , the balance against the copy of B/L
L/C at sight
5. Q:What is your available port of shipment?
A:TianJin
6.Q:How many methods for surface teatment?
A: Galvanizing PVC coated powder coated
7.Q:What kind of packing you will use?
A:Packing with pvc film and will packing in steel pallet , strong and safe.
