40 Mesh Stainless Steel Wire Mesh Woven Wire Mesh
- TIANJIN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
In Stocks Stainless Steel Knitted Wire Mesh for Filter Made in China
-
Ultra Fine Stainless Steel Wire Mesh/stainless Steel Fine Mesh Screen
-
Stainless Steel Wire Mesh 304 304L REAL MANUFACTURER Sinter Metal Powder Filter
-
Coffee Filter Wire Mesh/24mesh Filter Wire Mesh/25 Micron Stainless Steel Wire Mesh
-
150 Micron Filter Cloth 304 316 Stainless Steel Wire Mesh
-
Stainless Steel Wire Mesh for Pharmaceutical Industry
Product Details
| Standard | AISI, ASTM, DIN, EN, GB, JIS | Grade | 300 Series | |
| Wire Gauge | 0.02-5mm | Length | Customer Request | |
| Application | spring, screw, rope, wire mesh weaving | Certification | Other, AISI,ASTM,DIN,EN,GB,JIS | |
| C Content (%) | Standard Level | Si Content (%) | 1.00% | |
| Place of Origin | Hebei, China | Brand Name | TUOFANG | |
| Model Number | 316 |
Product Description

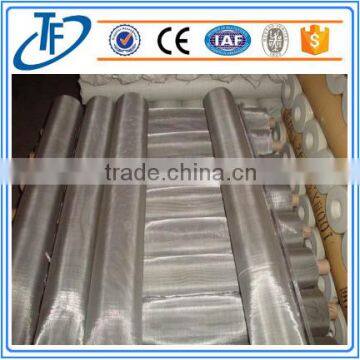

40 mesh stainless steel wire mesh woven wire mesh
Specifications

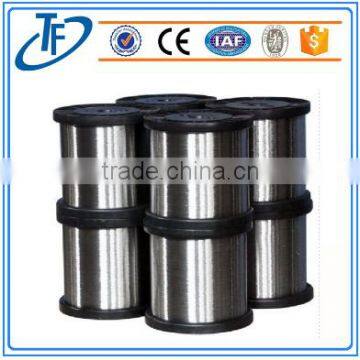

304 stainless steel wire
certification:ISO9001
material:202,302,321,304,316,316L
feature:surface smooth,
304 stainless steel wire
material:202,302,321,430,410,304,304L,308,309,310,312,314,316,316L
diameter:0.025mm-32mm
category:hard wire,soft wire,
feature:surface smooth,corrosion-resistant,good softness
uses:wire-drawing,weaving of wire mesh,soft pipe,beam of cabinet, steel wire rope, fiter material and equipment,spring,etc.
Chemical composition of stainless steel wire:
AISI Grade | Chemical Composition (%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo |
304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.50 | 18.00~20.00 | - |
304H | >0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.50 | 18.00~20.00 | - |
304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 9.00~13.50 | 18.00~20.00 | - |
316 | ≤0.045 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
316L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.030 | ≤0.60 | 16.00~18.00 | - |
430A | ≤0.06 | ≤0.50 | ≤0.50 | ≤0.030 | ≤0.50 | ≤0.25 | 14.00~17.00 | - |
Size of Stainless Steel Wire
Wire Diametermm) | Tolerancemm | Max.Deviation Tolerancemm |
0.020-0.049 | +0.002 -0.001 | 0.001 |
0.050-0.074 | ±0.002 | 0.002 |
0.075-0.089 | ±0.002 | 0.002 |
0.090-0.109 | +0.003 -0.002 | 0.002 |
0.110-0.169 | ±0.003 | 0.003 |
0.170-0.184 | ±0.004 | 0.004 |
0.185-0.199 | ±0.004 | 0.004 |
0.200-0.299 | ±0.005 | 0.005 |
0.300-0.310 | ±0.006 | 0.006 |
0.320-0.499 | ±0.006 | 0.006 |
We are the professional manufacture of holland wire mesh and any other wire mesh. We have experience in this line.Based on our experience, with our resonable price,high quality and considerate servise.Our products enjoy high reputation in our market.
Our company is located in the biggest wire mesh production base - Anping County, the home town of wire meshes in the worldwide . Now we are one of the leading manufacturers of wire meshes. With reasonable prices and good services, we have got recognition and trust among customers worldwide.
Our main products are all kinds of wire mesh products including gabion box,358 fence,razor wire, Bull bar network,heavy duty security fencing,welded wire mesh,wind or dust nets,airport fence,wall spike,chain link fence,horse gate,palisade fence,temporary fence,peach shaped fence,pet cage and so on.
A:Yes , we can supply the free sample , but the shipping cost be paid by our customers.
2. Q:Is there a discount?
A:Different quantity has different discount.
3. Q:How about delivery leadtime.
A:Delivery leadtime :about 7-10 days after confirmed.(Chinese holiday not included)
4.Q:What is the payment terms ?
A:30% by T/T in advance , the balance against the copy of B/L
L/C at sight
5. Q:What is your available port of shipment?
A:TianJin QingDao ShangHai
6.Q:How many methods for surface teatment?
A: Galvanizing PVC coated powder coated
7.Q:What kind of packing you will use?
A:Packing with pvc film and will packing in steel pallet , strong and safe.
