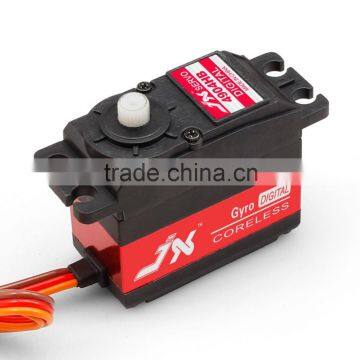

PDI-4904HB plastic gear standard digital servo for RC helicopter
- 100000 Unit / Units per Month
- shantou
- Credit Card
You May Like
-
PDI-2506MG Mini Size Servo for RC Helicopter Digital Servo
-
PDI-5521MG metal gear standard digital servo for RC quadcopter
-
CLS6322HV Digital servo for RC Car
-
high speed CLS6310GHV 180 Degree Controllable Rotation Robot Servo
-
PDI-5513MG metal gear standard digital robot servo
-
DC6420HV digital standard servo for RC airplane
Product Details
| Place of Origin | Guangdong, China | Brand Name | Chaoli JX | |
| Model Number | PDI-4904HB | Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance, Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, robots,airplane,RC model | |
| Certification | ROHS | Type | Servo Motor | |
| Torque | (4.8V):3.71 kgf.cm or (6.0V):4.45kgf.cm | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Totally Enclosed | |
| Speed(RPM) | (4.8V): 0.08sec/60° or (6.0V):0.06sec/60° | Voltage(V) | 4.8VDC or 6.0VDC | |
| Efficiency | IE 3 |
Product Description
1.This product
- Below are the specifications and structures of the product, for more information, please feel free to contact us.
- Furthermore, we provide customizable service of micro dc motor/generator/servo, including consulting, design and manufacture services, all the products are made to your order.
Dead band: 1μs
Frequency: 1520μs / 330hz
Motor: high quality coreless motor
Operating Speed (4.8V): 0.08sec/60°
Operating Speed(6.0V):0.06sec/60°
Stall Torque (4.8V): 3.71 kg-cm
Stall Torque(6.0V):4.45kg-cm
Dimensions:40.5X20.3X36.5mm
Weight: 49.4g
Connector Wire Length: JR 265 mm (10.43in)
Application:
This product is widely used in: High - grade remote control car,robot with multi degree of freedom,servo model,electric RC plane, oil moving RC plane, navigation model.etc.
