China Best Small Tea Leaudio-videoes Processing Equipment,high Quality Tea Leaf Drying Machine

Technical specific information of white tea twisting machine

Brief description of green tea roller

1,Our machine is mainly used for fixing the tea rolling operations, in recent years is gradually applied in the initial processing of Chinese herbal medicine, health care products and agricultural products.

2,After fixing the tea rolling machine rolling, moderate damage leaves, extrusion of tea, the taste is improved. This is also conducive to the winding rope, drying and forming, so that the tea is easy to brew and has a certain tolerance, improve the value of drinking.

3,The rolling machine has simple and compact structure, mechanical distribution reasonable, low noise, installation debugging convenience and low failure rate and other characteristics, and is particularly suitable to be used in the family tea garden and the small tea.

Pictures show of China factory price black tea leaf rolling machine

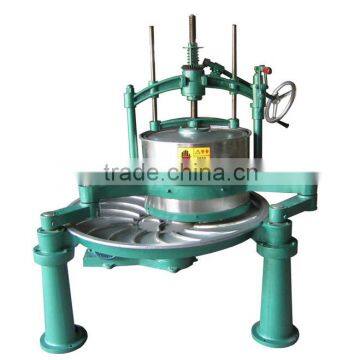

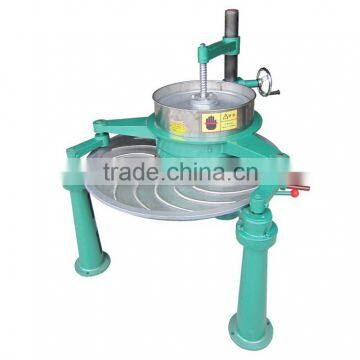

Detailed show of tea roller

Detailed technical parameters of different types of tea rolling machine

A):Technical parameters of 25 type rolling machine

Power: 370W

Voltage: 220V

dimensions (L * w * h): 720 x 600 x 850 (mm)

Rotate speed is 54r/min

tube height : 180mm

weight of the whole machine: 100kg

tube diameter : 25cm

Kneading tube material: stainless steel

Barrel thickness: 2mm

kneading disc material: stainless steel

kneading Disc thickness: 1.2mm

B) :Technical parameters of type 35 round foot kneading machine

power: 1100W

Voltage: 380/220V

dimensions (L * w * h): 980 x 900 x 1220 (mm)

kneading drum speed: 54r/min

kneading tube height: 250mm

weight of the whole machine: 200kg

kneading tube diameter: 35cm

C): Technical parameters of type 35 tripod kneading machine

power: 1100W

Voltage: 380/220V

dimensions (L * w * h): 1000 x 900 x 1200 (mm)

kneading drum speed: 60r/min

kneading tube height: 250mm

kneading tube diameter: 350mm

weight of the whole machine: 150kg

capacity:3-8 /batch

D): Technical parameters of 40B type rolling machine

Power: 1100W

Voltage: 380V

dimensions (length * width * height): 980 x 1000 x 1240 (mm)

kneading cylinder speed: 50r/min

kneading cylinder height: 250mm

weight: 200kg

kneading cylinder diameter: 40cm

E): Technical parameters of 45 type rolling machine

power: 1100W

Voltage: 380V

dimensions (L * w * h): 1110 x 1140 x 1155 (mm)

kneading drum speed: 54r/min

kneading tube height: 250mm

weight of the whole machine: 250kg

kneading tube diameter: 45cm

Kneading tube material: stainless steel

Barrel thickness: 2mm

kneading disc material: stainless steel

kneading Disc thickness: 1.2mm

F): Technical data 50 type rolling machine

Power: 2.2kW

Speed: 1430r / min

Voltage: 380V

Dimensions (L × W × H): 1120 × 1100 × 1330 (mm)

kneading drum speed: 54r / min

rub tube height: 350mm

Machine weight: 375kg

tube diameter: 50cm

Package :

Our rolling  machines are putted in strong wooden cases.

Delivery time :

We will send the tea rolling machine within 3-15 working days after receiving the down payment.

Pre-sale service:

1,Recommend the most suitable machine for customers,especially according to customers' demand

2,Strictly control easy production line and easy parts,to ensure machine quality.

3 every machine is tested before delivery,to ensure machine function well.

After-sale service:

1,one year warranty

2,lifelong free technical support and spare parts support

3,Help customers solve problem rapidly

Warranty:

1,Wearing parts can be free replacement within a year

2,The warranty does not include changing accessories

3,The company will not be responsible for the damage caused by the people.

Please feel free to contact me if you are interested in the tea rolling machine

and want to get further information

I will reply with you in time
