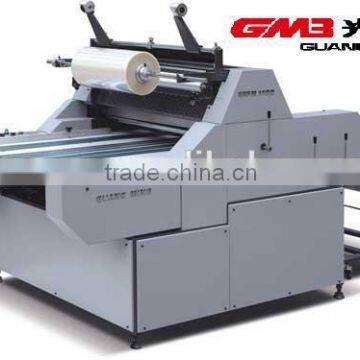

SRFM-720A/900A cold glue laminator

FOB Price

US$ 4,000 - 6,000 / Set

1 Set(Min. Order)

Port NNGBO SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Laminating Machine
Computerized	Yes	Place of Origin	Zhejiang, China
Brand Name	GUANGMING	Model Number	SRFM-720A/900A
Voltage	380V	Power(W)	2.5KW
Dimension(LWH)	2500x1450x1700mm	Weight	800/900KGS
Certification	CE	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

product name: SRFM-720A/900A Manual Water-base Laminator

Application:
It is used for water-base lamination

Configuration:

1. It adopts conservational water-base glue and BOPP film or PET film to laminate paper products.

2. Manual paper feeding

3. SCHNEIDER frequency converter is equipped for infinitely variable speed, and the operator can change the machine’s speed easily and guarantee the machine’s running stable.

4. Paper regulating plate can move left and right, and regulates manual paper feeding.

5. Glue supplying system supplies and recycles water-base glue automatically.

6. Dip coating saves glue and homogenizes coating much better.

7. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.

8. Film perforating wheel perforates film edge for the automatic cut of laminated paper.

9. Automatic paper winder rolls up laminated paper. Winding speed is adjustable upon applications.

10. Phillip IR drying lamp is equipped for smooth working in humid and cold climate.

11. No paper protector stops the machine’s running when no paper occurs in paper conveying.

12. The winded paper is supported by a trolley, and then put on cutting machine for quick automatic cut, or cut by manual work.

Technical Parameters
Model	SRFM-720A	SRFM-900A
Max Paper Width	670mm	850mm
Paper Thickness	80-500g/m2	80-500g/m2
Max Laminating Speed	40m/min	40m/min
Voltage/Frequeney	220V/50HZ	220V/50HZ
Total Power	2.5kw	3kw
Total Weight	800kg	900kg
Overall Dimensions	250014501700mm	250017001800mm
