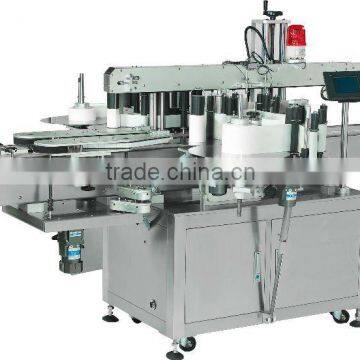

JT-620S High Speed Two-side Labeling Machine

Specifications

JT-620S Front and Back Labeling System

Technical parameter:

•  Label length:  10-400mm
•  Label height:  10-200mm
•  Labeler error: ≤ ±0.5mm
•  Bottle shape: Any shape bottles(square, round, oblate, elliptical bottle)
•  Machine size: 3000×1500×1700mm
•  Weight:  550KG
•  Power:  1800W
•  Capacity:  0-250bpm

Function:

1. Large touch screen, the operation is convenient, the parameter display be clear at a glance, truly realize the man-machine dialogue.
2. Adopt Japanese Mitsubishi PLC control system,a more stable performance.
3. Adopt Japanese omron photoelectric sensor,higher sensitivity for checking object.
4. Adopt Taiwan FOTEK special labels photoelectric sensor, sensitive sensor, conveniently adjustment.
5. Adopt German KINCO stepper motor for feeding label, Stable performance, labeling precision is high. With German technology KINCO stepping motor drive, and KINCO motor matching, signal never distortion
6. The horizontal, vertical, can adjust direction labeling position
7. Set up in your company existing transport, it also can use online.
8. No bottle,not feeding label.
9. Large control box, internal electric heat dissipation easier, detection is convenient, being increased
10. Stainless steel and aluminum alloy material.
11. Aluminum alloy surface by anodic piating, higher strength, good appearance.
12. Feeding label buffer device, Ensure that the process of tags do not be pulled apart or cause drag mark.
