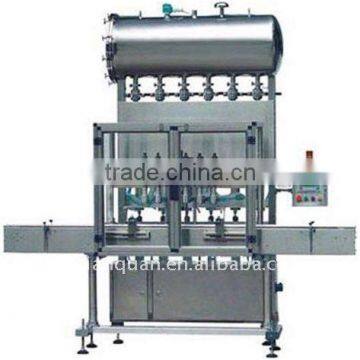

JT-F6 Ketchup Filling Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Beverage
Packaging Type	Bottles	Packaging Material	Wood
Automatic Grade	Automatic	Driven Type	Electric
Power	2.2KW	Place of Origin	Shanghai, China
Brand Name	Jinpack	Model Number	JT-F6

Product Description

Specifications

Ketchup filling machine
1.suit for any viscosity material
2.for auto packing line
petitive price
4.guarantee 12 months

JT-F6 Ketchup Filling Machine

Characteristic

1. Adopt injection pump to fill high precision, large range of adjusting dosage. It allows to adjustment of filling volume for all filling pumps at the same time, also for minor adjustment of each filling pump to achieve fill high volume accuracy.

2. This pump system don’t absorb the material, good chemical stability, High temperature resistance, corrosion resistance, wear-resisting, long service life. It has particular advantage when filling erosive material.

3. All contact parts are made of SS 316L and silicone tube, it is convenient to clean by CIP.

4. Filling system has the function of shrinking, no drop leak.

5. Apply to fill various viscosities liquid, such as jam, catsup, hotpot materials etc.

6. All of electric elements choose famous brand such as Italy AT, Japan Mitsubishi and Korea AUTONICS.

7. Frequency conversion control speed, auto count.

8. The whole machine is designed according to requirements of GMP.

Main technical parameter

ITEM	JT-F4	JT-F6	JT-F8	JT-F12	JT-F16
Filling nozzle	4 nozzles	6 nozzles	8 nozzles	12 nozzles	16 nozzles
Filling volume range	20-5000ml		20-500ml
Ideal filling volume range	20-100ml 50-250ml100-500ml200ml-1000ml500-2500ml1000-5000ml
Filling speed(100ml) Bottles/min	30-40	40-60	60-80	70-90	80-100
Tolerance of filling quantity	20-1000ml: ≤±1% 1000-5000ml: ≤±0.5%
Pressure of press air	0.4~0.6MPa
Air consumption	10M3/h	15M3/h	20M3/h	30M3/h	40M3/h
Power supply	220V 50/60Hz(according to customer)
Power	0.75kw	0.75kw	1.2kw	2.2kw	2.2kw
Noise	≤50dB
Weight	550kg	900 kg	1100kg	1300kg	1550kg
Dimension (mm)	1300×1200 ×1800	1600×1200 ×1800	1900×1200 ×1800	2300×1200 ×1800	2600×1200 ×1800
