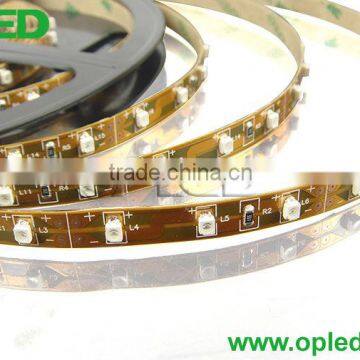

60pcs/m CE&/ROHS ip68 DC2v smd 3528 led strip light

60pcs/m CE&/ROHS DC12V smd 3258 led flexible strip

Part No.:OP-NFL3528-1260*

Drawing:

Quick Detail:

• LED rope light, LED tape, LED ribbon, LED kit
• Voltage:DC12V,DC24V are optional
• Model: OP-NFL3528-1260
• Power:4.8W/m,24W/roll
• LED No.: 60LEDs/m,300LEDs/roll
• Size: 5000*8mm (every 3 led can be cut)
• Length: 5m one roll
• Color Available: red/yellow,blue,green,white,warm white
• Material: Copper PCB, epoxy resin cover
• Protection rate: Nonwaterproof
• Viewing angle:120°
• Lumen: 5-6lm/ LED
• Certificate:CE/ROHS
• Warranty:2years
• Application: Edge lighting for signage,light box,etc.

Description:

• Make use of  3528 SMD LED which the size is 3.5mm×2.8mm×1.85mm
• The height is 3 mm; can be used in small areas
• 60 SMD LEDs/m, 5m/roll, 8mm/6mm width PCB ,brown or white PCB is available.
•  Good heat diffusion, the life of chip can be better guaranteed
•  3M self-adhesive tape in the back, easy installation
• Working voltage: 12V DC
• Excellent flexibility
• LED quantity & strip length can be customized
• Life spain:80,000hrs
• Working temperature:-20°C to +60°C
• Store temperature:-30°C to +80°C

Applications:

• Cove lighting
• Architectural lights for canopy, corridor, window, archway
• Backlight or edge lighting for signage
• DIY lights for home use
• Path and contour marking
• Decorative lights for holiday, event, show, exhibition

Specifications:

Lighting Pictures:

Packing Picture:

Product Accessory's  Pictures:

Connector for LED strip:

Power Supply:

Production View:

OEM Sevices Tips:

Team View:

FAQ:

Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. Please note, free samples could be supported,but we don't accept the shipping cost of the samples.

Q2: Do you have any MOQ limited?

A: Our MOQ EXW is 100m, Our MOQ FOB is 1000m.

Q3: What’s the lead time?

A: Sample :1-5days.

   Mass production: 7-10days.

Q4:How do you ship the goods and how long does it take?

A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to arrive.

By air,by sea are also acceptable.

Q5: Do you offer guarantee for your products?

A: Yes, we offer two years guarantee for the products.

Q6: Do you accept drop shipping

A: Yes, it is available.

Competitive  Advantage:

Professional produce LED strip for signs

Fast delivery time

Assure every order keep same color temperature

Lowest price will be supported
