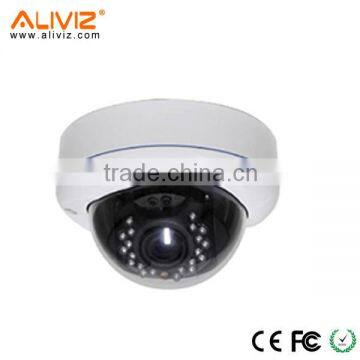

720P IR Dome Cctv Camera Support IR20M AHD Cctv Camera
- Shenzhen
- Credit Card
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | Aliviz Security | |
Model Number | AS-AHD-3E10-IR2 | Type | Analog Camera | |
Style | Dome Camera | Sensor | CMOS | |
Technology | Other, AHD camera | Special Features | Waterproof / Weatherproof |
Product Description
AHD 720P IR Dome waterproof Camera
Order Model: AS-AHD-3E10-IR2
Features
- High resolution,Max resolution can reach 1.0MP(1280×720), HD 720P output, real-time image
- Low illumination,0.1Lux @(F1.2,AGC ON),0 LUX with IR
- Support Electronic switch Day and Night
- Local analog video output, support kinds of info overlay (ID, IP, DDNS server etc.)
- H.264 High Profile Compression
- Support Dual stream
- Support SDVR connection
- Support Cloud technology , One Step to realize remote surveillance.Remote Server add :
- Support smart mobile and network (IE&Firefox&Safari&Chrome) real time remotely monitoring,such as iPhone,Blackberry,Android, Symbian and windows mobile
- Provide web,CMS and center manage software(MYEYE) and SDK for development
- Support connection with HVR/NVR, Compatible with ONVIF standard
- POE,alarm,audio and 3G & wifi optional
Main features
l High definition ,image quality is equivalent to 720P IP camera
l Low illumination , 0.1Lux @ (F1.2,AGC ON),0 LUX with IR
l Support auto Day/Night function
l Using coaxial cable75-3(or above) ,The transmission distance can up to 500M,coaxial transmission , no any delay
l With new analog modulation technology , high frequency electromagnetic radiation and strong anti-interference ability
l Support for digital wide dynamic,Through the fog function,Strong inhibition,Motion Detection,Privacy masking
l Switch mode for HD 720P and normal 960H
l P/N two- in -One , easy to switch
Perfect match with AHD DVR,Compatible with normal DVR
Specification
Product |
1.0MP IR AHD Dome Camera |
Camera | |
Sensor | 1/4 OV9712 sensor |
Signal system | PAL/NTSC |
Horizontal Resolution: | Resolution can up to 720P IP camera |
Min illumination
| Color :0.1Lux @(F1.2,AGC ON),0 LUX with IR B/W :0.01 Lux @ (F1.2,AGC ON),0 LUX with IR |
Shutter time | 1/50(1/60)S to 1/100,000 S |
Lens | Professional HD lens 6mm@ F1.2 (4mm optional) |
Lens mount | M12 |
Day/Night | IR Cut Filter Auto Switch |
Sync mode | Internal Synchronization |
S/N Ratio | >58dB |
General range | |
Working Temperature/Humidity | -10℃~60℃ Humidity 90% or less (non-condensing) |
Power Supply | DC12V±10% |
Power Consumption | “IR2”: 5W MAX; |
Rating: | IP65 |
IR Range | “IR2”:15-25 M; |
Dimensions(mm) | Φ138mm*122mm |
Weight | 700g |
AHD DVR (perfect match with AHD Camera)
