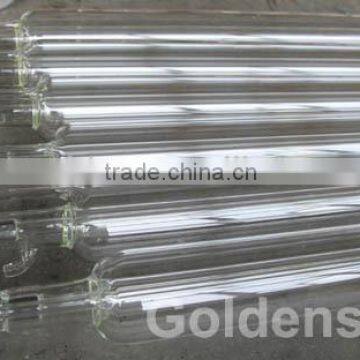

Shanghai Puri 10000 hours CO2 laser tube 1600mm

Specifications

Shanghai Puri 10000 hours CO2 laser tube
1.glass sealed co2
2.stable performance
3.High efficiency
4.long service hours

Puri Laser, Stronger Power

The Shanghai Puri 10000 hours 60W-160W CO2 catalytic laser tube mainly used for laser engraving and cutting, applies to the vast majority of domestic the laser machinery manufacturing. Puri laser tube is excellent in

• The most advanced level laser technology,
• Imported components,
• Stronger laser power,
• Excellent laser spot,
• Stable quality,
• Long life time

Working Principle: high-pressure discharge stimulate high concentration CO2 to generate laser.
Laser Wave Length: 10.6um.
Laser Model:low order mode.
Water-Cooling:purified water, appropriate temperature 10-35°C.
Working Environment:temperature 5-35°C, humidity 10-60%, clean environment, no serious pollution.
Working Current:16~22mA is appropriate (excessive current will affect laser power and laser tube lifetime.
Safety Demand:CO2 laser tube outputs invisible light, positive with high pressure, if necessary, eyewear is essential.
Tips: Laser power will be attenuated when the laser tube is used at a certain time; If the laser is pink, it is in normal condition; if the laser is white, it means the laser power is attenuate. ( Laser tube is consumable, please change a new one when it can’t meet demand due to attenuation. )
Laser State:
     1, There are two points to support the laser tube at two sides, when you install the laser tube, the two points should be in 1/4 of the laser tube;
     2,On the basis of cooling water above-in and below-out, if you rotate the laser tube slightly, it will affect laser spot and laser power.

Puri CO2 Laser Tube Parameter: (Testing & Waiting):
