co2 laser tube in laser cutting machines/engraving machines/co2 laser tube

Shanghai Puri co2 laser tube manufacturer high quality 40w/50w/60w/80w /100w/120w/150w/180w /200w/350w/400w

AGENT WANTED

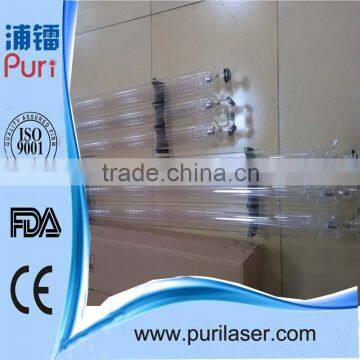

CO2 Laser Tube

5 Months warranty.

Puri life can up to 8000-10000 hours.

factory direct sale! mainly used for laser engraving and cutting, applies to the vast majority of domestic the laser machinery manufacturing.

Puri laser tube with middle & small power is excellent in good laser spot mode, enough power, long life.

Laser  Equipment Parts co2 laser tube

co2 laser tube  Working Principle: high-pressure discharge stimulate high concentration CO2 to generate laser.
co2 laser tube   Laser Wave Length: 10.6um.
co2 laser tube Laser Mode:low order mode.
co2 laser tube Water-Cooling:purified water, appropriate temperature 10-35°C.
co2 laser tube   Working Environment:temperature 5-35°C, humidity 10-60%, clean environment, no serious pollution.
co2 laser tube  Working Current:16~22mA is appropriate (excessive current will affect laser power and laser tube lifetime.

co2 laser tube Safety Demand:CO2 laser tube outputs invisible light, positive with high pressure, if necessary, eyewear is essential.
co2 laser tubeLaser State: Laser power will be attenuated when the laser tube is used at a certain time; If the laser is pink, it is in normal condition; if the laser is white, it means the laser power is attenuate. ( Laser tube is consumable, please change a new one when it can’t meet demand due to attenuation. )
laser tube Laser State:

1, There are two points to support the laser tube at two sides, when you install the laser tube, the two points should be in 1/4 of the laser tube;
2,On the basis of cooling water above-in and below-out, if you rotate the laser tube slightly, it will affect laser spot and laser power.

co2 laser tube parameters.

Laser tube /co2 laser tube

 Laser tube /co2 laser tube

 Laser tube /co2 laser tube

Laser tube /co2 laser tube

Laser tube /co2 laser tube

Laser tube /co2 laser tube

 Laser tube /co2 laser tube

Laser tube /co2 laser tube

Laser tube /co2 laser tube

Laser tube /co2 laser tube

 Here are some pictures of our branch conmpany in CA USA.
