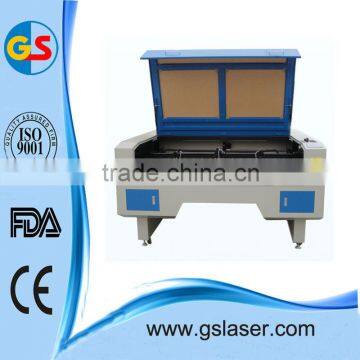

co2 laser cutting machine for MDF board GS1490 in shanghai

Co2 Laser engraving and cutting machine in shanghai

Feature Description:
·1.64 dsp high speed processor:Adopts 64 DSP high speed control system,which highly improved the data processing speed and stability.
·2.Adopts the auto feeding system.
·3.Adopts the auto adusting system.
·4.Adopts the air-absorb system to make the fabric very smooth.
5.Support of USB and U disk: USB connect to the machine or U disk independently, which can use only one computer to control many laser machines.
6.Real time regulation: users can regulate the laser power according to needs to improve the engraving effect.
7.Storage function:Large Storage Function,which can store hundreds of files for offline operation.

Applicable Industries:

Model industry (construction models, aviation and navigation models and wooden toys), advertisement, decoration, arts and crafts, electronic and electric appliances, etc.

Applicable Materials:

Nonmetal materials such as Fabrics(silk,cotton,decoration,polyester,chemical,fiber,pure fabric)

ABS double color sheet, acrylic sheet, wood, glass, paper, leather, cloth, plastic, rubber, marble, ceramic tiles and other nonmetallic materials.leather(leather,artificial leather, decorative leather,packaging leather,soft leather. wool fabric and variety of surfaces).etc.

Model

GS 1490

Working area

1400mm*900mm

Laser type

CO2 sealed laser tube,water-cooled

Laser power

60W/80W/100w/120w/150w

Engraving speed

64000mm/min

Cutting speed

0-36000/min

Resetting positioning accuracy

0.01mm

Resolution radio

0.025mm

Highest Scanning Precision

2500DPI

Smallest character engraving

Chinese 2.0mm×2.0mm,English 1.0mm×1.0mm

Character 2.0mm*2.0mm,English 1.0mm*1.0mm

Graphic format

Al, Plt, Cdr, Dxf, Dst, Nc, BMP, JPG, DST, PLT, DXF

Power supply

220V/50HZ

whole power

<1000W

Software support

Corelaser AnutoCAD

Control system

DSP

Driving system

Stepper motor

Color separation

Yes

Color separation

Yes

Machine  configuration

DSP control system; USB interface; Laser heads;Laser tube; water pump; Exhaust fan; Mirror and lens;

 Optional parts

1.Motorised up and down worktable

2.Rotary attachment with roller/clip;

3Water chillers:;

4Red dot pointer;

 Consumable parts

(Recommended)

1.      Extra laser tube
2.     water chiller

Mea

 1930*1480*1000 mm

Machine LCD screen portuguese language
