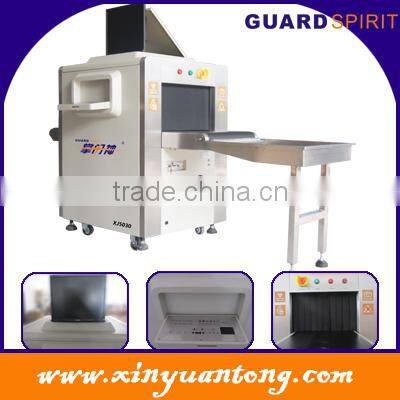

X Ray Machines for Handbag& Parcel XJ5030A

X Ray Machines for handbag& parcel XJ5030A

Features:

*High resolution images

*Simple User-friendly operation

*Strong Image storage capacity

*Automatic Self-diagnostic maintenance system

*One Key shutdown control

Parameter:

*Tunnel Size: 500mm(W)*300mm(H)

*Load Weight: 40Kgs

*Conveyor Speed: 0.2-0.23m/s

*Radiation Leakage: 0.25μG/h

*Penetration: 12mm steel

*X-ray Resolution: 32 AWG

X-Ray Generator:

*X-ray Beam Direction: From bottom

*Beam Divergence: 60°

*Tube Voltage: 90Kv

*Electronic Current: 0.5mA

*Cooling: Sealed oil cooling + 100% Dutycycle

Image Function:

*X-ray Converter Arrangement: Single Energy L-shaped photodiode array detector

*Maximum Image Resolution: 1024*768

*Image Storage: 100,000pcs

*Image Display Color: Black/White

*Grey Level: 65536

*Zone & Zoom: 1-9 image zones, 2,4,8 times zooming

*Other Function: Alarm, Review, Density Enhancement, Negative/positive image, Light/Dark Enhancement, automatic count, One Key Power Off, Working status display, Date & time display, Rush Stop Protection,

Dangerous Alarm, System Failure Alarm etc…

Working Environment:

*Work Temperature & Humidity:0°C-45°C/ 20%-95%(Non Cooling)

                                                  -10°C-45°C/ 5%-95%(Optional)

*Storage Temperature & Humidity: -40°C-70°C/ 5%-95%(Non Cooling)

*Power: 220VAC(+10%- -15%, 50Hz±3Hz)

Application:

Hotel, Entainment place, factory, custom port, airport etc.

Certification:
