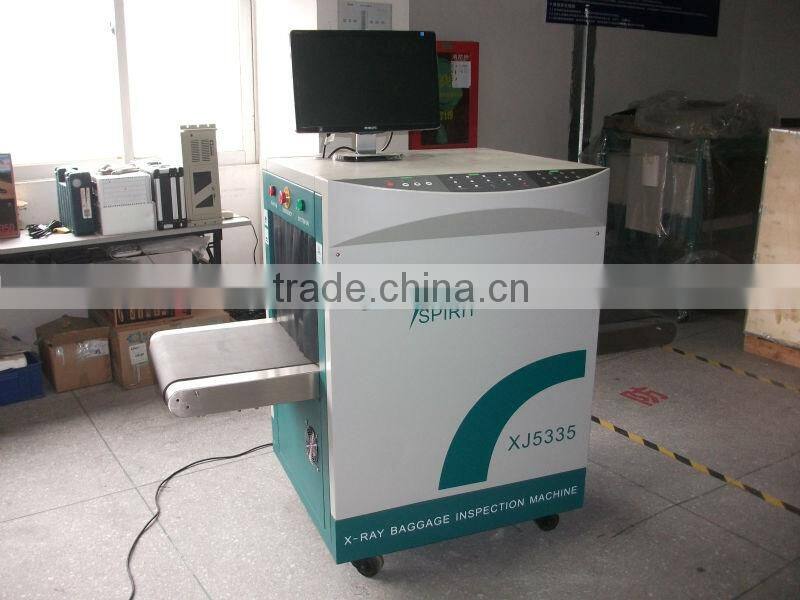

X-ray Baggage Scanner Security Inspection XJ5335

X-ray baggage inspection system

Model: XJ5335

General Specifications

Tunnel Size : 530(W)×350(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 150 kg

Single inspection dosage: <1.01μGy

Leakage radiation: <0.06µGy/h

Wire Resolution: 40AWG

Steel Penetration: 43mm

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Upward

Tube Current: 0.2-1.25mA(adjustable)

Anode Voltage: 80-160KV(adjustable)

Angle: 80°

Generator cooling/working periods:

Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<55DB

X-RAY Sensor: L-shaped array detector, 24bit

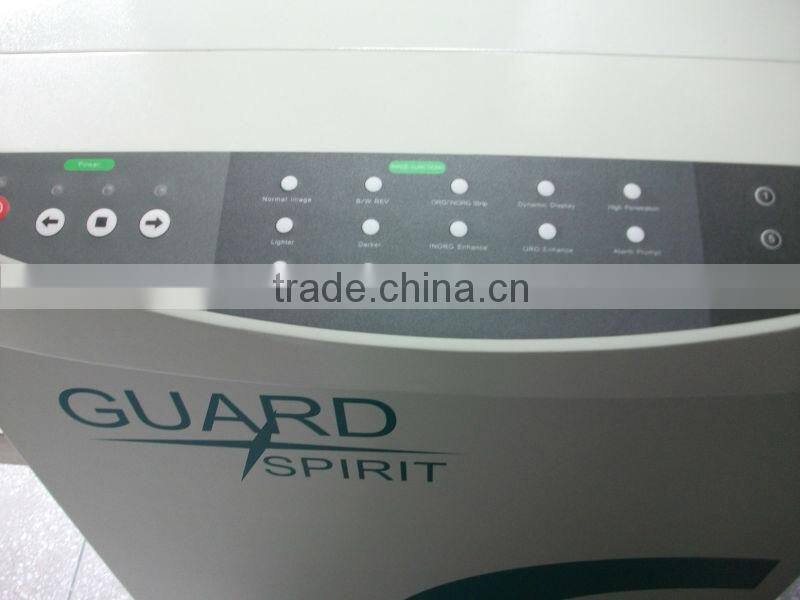

Image Performance System:

Display: High-resolution 19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier:                         Partial magnifying function

Brightening/dimming:       Increase/Decrease brightness of image

Image recurrence:              Display the previous twenty images and process any one of them

Image restoration:             Restore image to initial status

Image storage:                   Real-time store any image and process it in operation status

Shenzhen Xinyuantong Electronics Co., Ltd.

Shenzhen Xinyuantong Electronics Co., Ltd.was established in 2000 with the registered capital of RMB 31.5 million, the total business space is 12,000 m2, there are more than 260 employees, including 120 research, engineering and technical personnel; we are one professional high-tech company which provide the solutions to the public safety, and provide the complete production and integration services.

The Company is committed to the technical development and research of “GuardSpirit” series of security products, the developed products have been granted by 28 national patents, and have formed five categories of products including the metal detectors, X-ray baggage scanners, test products for radioactive materials, vehicle chassis inspection products, EOD and anti-explosion products.

Our Company has been committed in the business of access security, security equipments and services for 14 years, and during the period, we have provided safety and security services for hundreds of large-scale events, meetings, exhibitions, political and legal departments, railways, highways, ports and other places, including 26th Summer Universiade Shenzhen 2011, World Expo 2010 Shanghai, 16th Asian Games Guangzhou 2010, 14th FINA World Championship -Shanghai 2011, 24th Winter Universiade Harbin 2009, Olympic Games Beijing 2008, Wuhan-Guangzhou high-speed railway, Beijing-Shanghai high-speed railway and other key events and projects.
