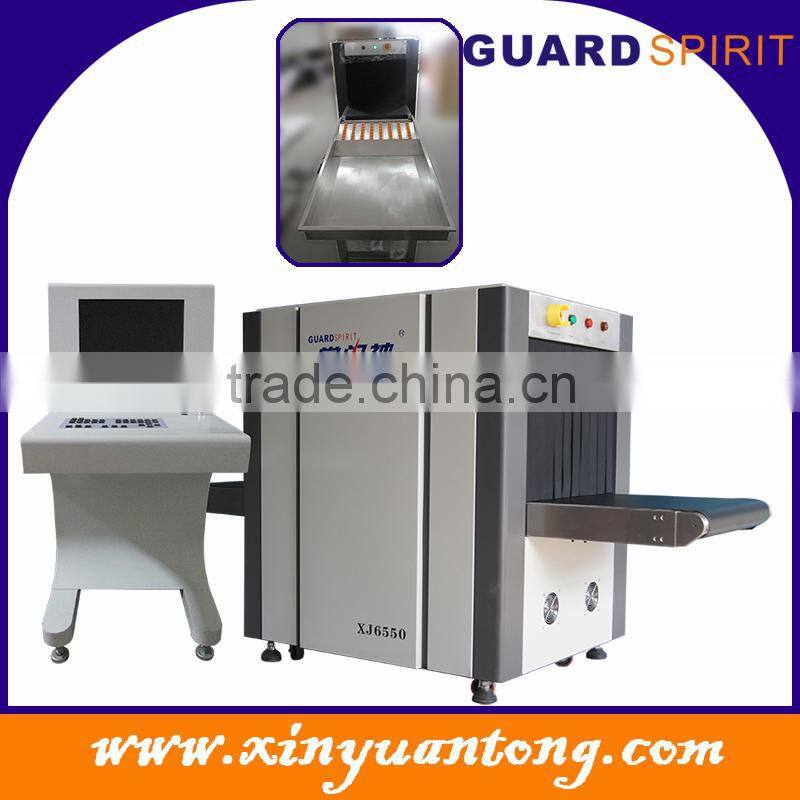

Airport Police Security X Ray Luggage Scanner XJ6550

Airport Police security X ray luggage scanner XJ6550

Features:

*High resolution images

*Simple User-friendly operation

*Strong Image storage capacity

*Automatic Self-diagnostic maintenance system

*One Key shutdown control

Parameter:

*Tunnel Size……………650mm(W)*500mm(H)

*Load Weight…….........150Kgs

*Conveyor Speed……..0.2-0.23m/s

*Radiation Leakage…..0.57 μG/h

*Penetration…………..34mm steel

*X-ray resolution…...40AWG

X-Ray Generator:

*X-ray Beam Direction………From bottom

*Beam Divergence……….. …80°

*Tube Voltage………………..80-160Kv

*Electronic Current…………0.2-1.25mA

*Cooling……………………Sealed oil cooling + 100% Dutycycle

Image Function:

*X-ray Converter Arrangement…. Dual Energy L-shaped photodiode array detector

*Inorganic/Organic Stripping…… ..Organic substances display in Orange, Inorganic

substances display in blue, mixtures display in green

*Maximum Image Resolution……..1024*768

*Image Storage……………………100,000pcs

*Image Display Color………………Black/White & Color

*Grey Level………………………..65536

*Zone & Zoom…………………... .1-9 image zones, 2,4,8 times zooming

*Other Function……………………Alarm, Review, Density Enhancement, Negative/positive image,Light/Dark Enhancement, automatic count, One Key Power Off, Working status display, Date & time display, Rush Stop Protection, Dangerous Alarm, System Failure Alarm etc…

Working Environment:

*Work Temperature & Humidity…. …0°C~+45°C/ 20%~95%(Non Cooling),

-10°C~+45°C/ 5%~95%(Optional)

*Storage Temperature & Humidity….-40°C~70°C/ 5%~95%(Non Cooling)

*Power………………………………….220VAC(+10%~-15%,,50Hz±3Hz)

Certification:
