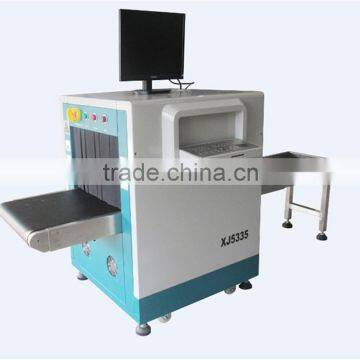

X-ray machine baggage inspection made in China XJ5335

X-ray machine Security luggage/parcel inspection system XJ5335

SPECIFICATION

     Tunnel Size:530(W)*350(H)mm

     Conveyor Speed:0.2m/s

     Conveyor Max. Load:50kg

     Penetration:34 mm steel

     Resolution:Diameter 0.09mm metal wire

     Radiation Leakage:Less than 1.0uGY/h (at a distance of 5cm from external housing)

     Dose Per Inspection:≤1.2μGy,ISO1600 film security certification. Complying with published international standards

     X-ray Sensor:Dual Energy L-shaped photodiode array detector

     X-ray Anode Voltage:140Kv

     X-ray current:0.7 MA

     Monitor:19 inch LCD screen

     Hard Disk:160G

     Memory:1.0G

     Image Grey Level:65536(16 Bits)

     Image Presentation:B/W, pseudo color,

     Image Disposal Function:image recall, penetration and edge enhancement, negative image, inorganic and organic stripping

     Image Storage:10000pictures real time storage

     Image Max. Resolution:1024*768pixel

     Select Region and Enlarge:Magnification Times 2,4,8

     Operating Voltage:220VAC±10%V

     Operating Temperature:0°C~45°C

     Storage Temperature:-40°C~+70°C

     Relative Humidity:10%~95% (Non-condensing)

     Gross weight:100KG

Application

Airport, banks, Embassies, Jail, Entertainment places, Gymnasiums, Exhibition Center ..etc

Our main products

Please contact me if you are interested in any product,I can send more information to you.

Shenzhen Xinyuantong Electronics Co.,LTD

ADD: Building 3, Xiaxue Industrial Park, Bantian Street, Longgang District, Shenzhen, China
