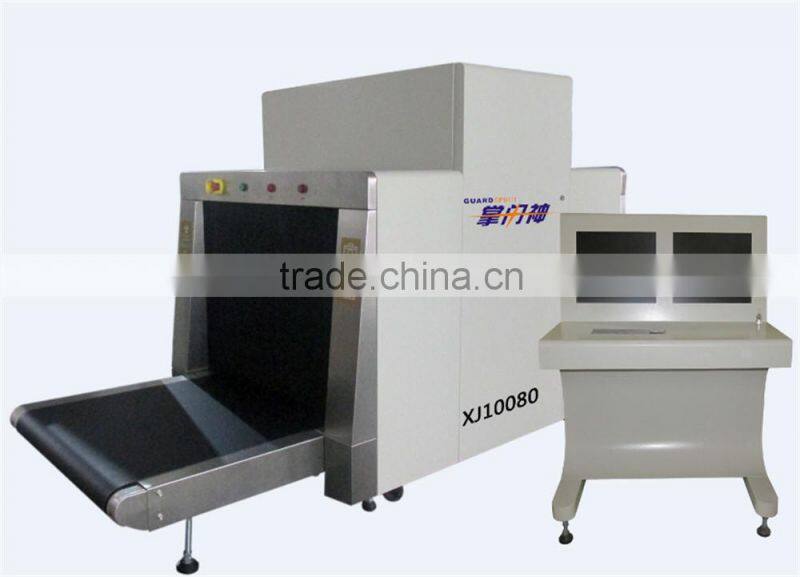

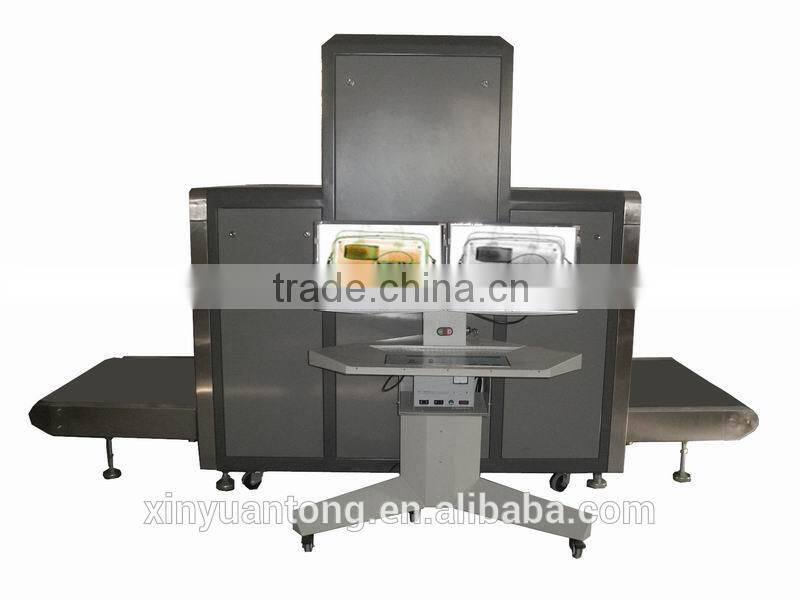

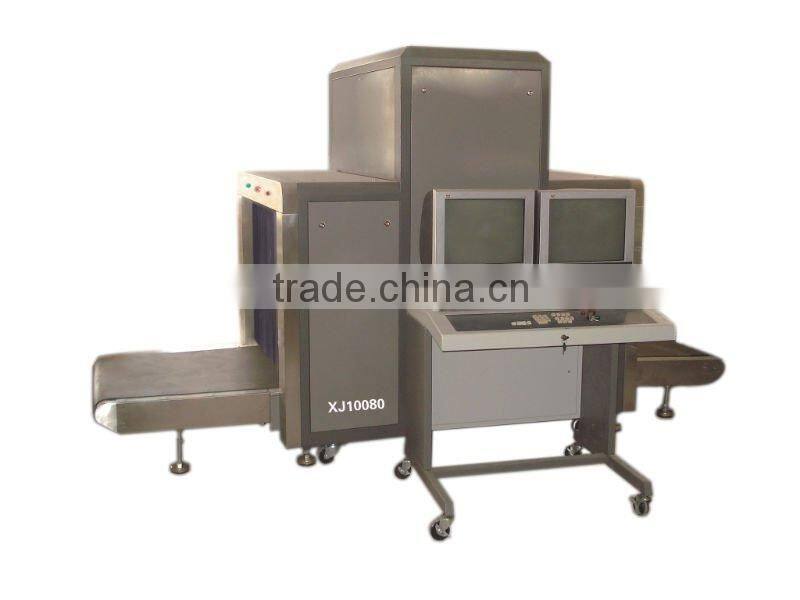

Security Protector X- Ray Baggage Scanner for Hotels , Train Stations , Airports

Model: XJ10080

GENERAL SPECIFICATION

• 1.         Tunnel Size : 1000(W)×800(H)mm
• 2.         Conveyor Speed: 0.22m/s
• 3.         Conveyor Max Load: 250 kg
• 4.         Wire Resolution:38AWG
• 5.         Single Inspection Dosage: <1.5μGy
• 6.         Leakage Radiation: <0.2μGy/h
• 7.         Spatial Resolution: 1.0mm Horizontal and Vertical
• 8.         Steel Penetration: 38mm
• 9.         Film Safety: For ISO 1600
• 10.     Computer:2*19’High Resolution LCD Monitors
• 11.     Detector: L-shape dual energy semi-conductor PD array detector module(24bit)
• 12.     Grey Level: 4096(24bit)
• 13.     Power Supply:220V AC(+/-10%)  50+/-3Hz
• 14.     Power Consumption:1.0KW(Max)
• 15.     Noise Level:<55dB
• 16.     Operation Temperature: 0°c~45°c
• 17.     Relative Humidity: up to 95%(without condensing)
• 18.     System Weight:1000kg

X-RAY GENERATOR

• 1.         Orientation: Downward
• 2.         Tube Current: 0.4~0.7MA(adjustable)
• 3.         Anode Voltage: 100~160KV(adjustable)
• 4.         Angle: 60°
• 5.         Generator cool: sealed oil bath with forced air

X-RAY SENSORS:

L-shaped array detector 24bit

Multi-energy: High/low energy: Switch from high energy to low energy

Color material identification: Organic objects in orange, inorganic objects in blue,mixture in green

Assist to detect drug and explosive powder

For over 11 years GUARD SPIRIT has manufactured the world’s most sensitive walk-through metal detection systems. Our systems are used by today’s airport, railway stations, banks, courts, Embassies, Jail, Entertainment places, Gymnasiums, Exhibition Center
and distribution companies to protect their precious metals from loss. We are committed to the absolute best products backed by the absolute best customer service.
Some of the industries which we service:

• Airport,raiyway station
• Banks,Courts,Embassies,Jail
• Enthertainment places,Gymnasiums
• Exhibitions Center
• Distribution company

We offer the following services to our valued Customers:

• Custom Products
• Onsite Service
• Delivery and Domestic Installation
• Onsite Integration
• Telephone Consultation
• Onsite Consultation
• Service Contracts
• Extended Warranties and more…

Manufacturing Facility and Main Office Building
Room Building 3, Xiaxue Industrial Park,

Ban tian Street ,Long gang District ,

Shenzhen,P.R China

Located in one of shenzhen’s beautiful industrial park. From this location, we handle most sales calls, and perform many of the day to day operations needed to keep everything flowing smoothly.

We are extremely proud of our reputation for providing the absolute best products and services. Our dedication to quality products and reliable, personal service, has given us the opportunity of serving many of today’s airport, railway stations, banks, courts, Embassies, Jail, Entertainment places, Gymnasiums, Exhibition Center
and distribution companies. Please take a moment to look around our web site, and let us know if you need anything. We certainly appreciate your interest in our products and services, and we look forward to hearing from you.
