2015 100% Original XT00L PS201 Heavy Duty Code Reader OBD II/EOBD/CANBUS Compliant Heavy truck Vehicles Diesel Tool

PS201

1.Tool Description

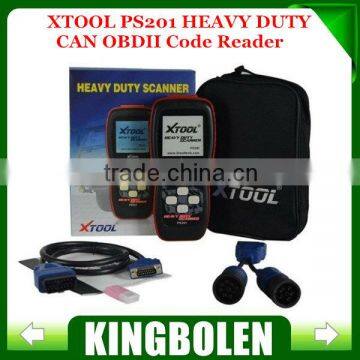

The PS201 HEAVY DUTY CAN OBDII Code Reader is the best solution for
diagnose All 1996 and Newer OBD II/EOBD/CANBUS Compliant gasoline
Vehicles, as well as diesel OBD vehicles, provides car owners and DIYers
easy and quick access to Diagnostic all OBD II compliant vehicles sold
worldwide since 1996. Though small in size, it is powerful enough to retrieve
the same information as expensive workshop level scanners.

The scanner works with the following protocols:

Gasoline

--J1850 PWM
--J1850 VPW
--KPW 2000
--ISO 14230-04
--ISO 9141
--SAE J1850
-- ISO14230
-- ISO15765(CAN)
Diesel
--SAE J1939(CAN)
--SAE J1708/J1587

2.Feature

* Natural Ergonomic comfort Curve design * Easy-to-read large mono-color screen* Easy-to-operate large buttons

Diesel

*Class 4 - Class 8 truck coverage featuring "Automatic Protocol Search".
*HD J1587 / J1708 and J1939 CAN, Engine, Transmission/ABS coverage and
more!

*Live vehicle data such as:

- Engine speed
- Engine ECU temperature
- Percent acceleration pedal position
- Engine intercooler temperature
- Engine coolant temperature
- Ambient air temperature
- Air inlet temperature

Gasoline* Work with all 1996 and later OBD II compliant US, European and
Asian vehicles* Easily determine the cause of the Check Engine Light ( MIL)* Retrieve generic (P0, P2, P3, B0, C0, U0), manufacturer specific (P1, P3,
and U1) codes, and pending codes* Turn off Check Engine Light (MIL), clear
codes and reset monitors* Display DTC definitions on unit screen* View freeze
frame data

* Read live data* Display monitor and I/M readiness status (emissions)* Retrieve vehicle information (VIN, CIN and CVN)* Support CAN (Controller Area Network) and all other current OBD II protocols

* Support Mode 6*Multi-Lingua platform* Update via Internet

3.Function

* Read DTC

* Clear DTC

* View Freezing Frame

* View Live Data

* Special tests

-- I/M Readiness

-- MIL Status

-- O2 Sensor Test

--On-board Monitor test

-- EVAP system test

--Vehicle Info

* Code Lookup

4.Specfications

Display: Backlit, 160 x 160 pixel mono-color screen with contrast adjustment

Operation Temperature: 0 ~ 50°C (32~122F°)

Storage Temperature: -20 ~ 70°C (-4~158F°)

Relative Humidity: < 90%

External Power: 8~18 Volts via DLC

Power Consumption: 3W

Mainframe Dimension: 225mm(L) x 98mm(W) x 36mm(H)

Exterior Memory: TF Card
