Home > Products > Battery Charger > Electric Car Golf Cart Intelligent 48v Car Battery Charger Price
Electric Car Golf Cart Intelligent 48v Car Battery Charger Price
You May Like
Product Details
| Brand Name | OEM | Model Number | Electric Car Golf Cart Intelligent 48v Car Battery Charger Price | |
| Use | Standard Battery | Type | Electric | |
| Place of Origin | China |
Product Description
Electric Car Golf Cart Intelligent 48v Car Battery Charger Price
Product Description
Electric Car Golf Cart Intelligent 48v Car Battery Charger Price
adopts advanced active power factor correction plus phase-shift full bridge soft switching control mode,
are specially for electric cars, electric forklifts, electric vehicles, electric vehicle charging need
professional design of intelligent charger. CANBus bus interface control charger complete the charging
process; and can be selected by the embedded CPU precise control of the charging process. The
sealing design to avoid the use of environmental reliability of the charger.
Technical Parameter
Input | AC 100~240V |
Output Voltage ,Current | type table |
Efficiency | ≥93% |
Power factor | ≥0.98 |
Shock and Vibration | SAEJ1378 |
Operating Temp | -25℃ —+60℃ |
Storage Temp | -30℃ —+85℃ |
Weight | 7.9KG |
Power | 3300W |
Support battery | lead-acid cell Lithium Battery |
Overall dimensions | 349*198*139mm |
Mounting dimension(1) | 120*328mm |
Mounting dimension(2) | 55*328mm |
Protection Indications
Output short protection
Battery reversed connect protection
Automatically turn off when battery is full
Timed power off
Over temperature protection
Charge process shown LED
The charge process controlled by CPU
temperature compensation and balanced maintenance
2.2 KW type table
type | battery voltage | charge current |
HWC8-4835 | 48V | 35A |
HWC8-6030 | 60V | 30A |
HWC8-7225 | 72V | 25A |
HWC8-9618 | 96V | 18A |
HWC8-14412 | 144V | 12A |
HWC8-2886 | 288V | 6A |
HWC8-3205 | 320V | 5A |
HWC8-3524 | 352V | 4A |
3KW type table
type | battery voltage | charge current |
HWC8-4850 | 48V | 50A |
HWC8-6040 | 60V | 40A |
HWC8-7235 | 72V | 35A |
HWC8-9625 | 96V | 25A |
HWC8-14418 | 144V | 18A |
HWC8-2889 | 288V | 9A |
HWC8-3208 | 320V | 8A |
HWC8-3527 | 352V | 7A |

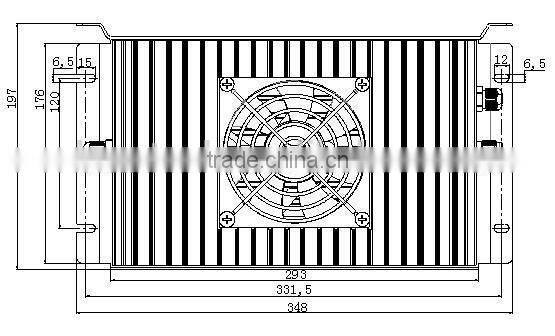

2.2KW Exterior and 3KW Mounting dimension:
4KW type
type | battery voltage | charge current |
HWC8-4870 | 48V | 70A |
HWC8-6060 | 60V | 60A |
HWC8-7250 | 72V | 50A |
HWC8-9636 | 96V | 36A |
HWC8-14424 | 144V | 24A |
HWC8-28812 | 288V | 12A |
HWC8-32010 | 320V | 10A |
HWC8-35209 | 352V | 9A |
6KW type
type | battery voltage | charge current |
HWC8-4870 | 48V | 70A |
HWC8-6060 | 60V | 60A |
HWC8-7250 | 72V | 50A |
HWC8-9636 | 96V | 36A |
HWC8-14424 | 144V | 24A |
HWC8-28812 | 288V | 12A |
HWC8-32010 | 320V | 10A |
HWC8-35209 | 352V | 9A |

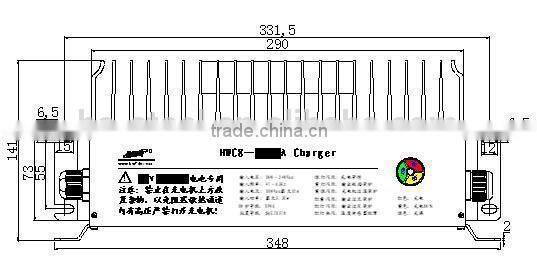

4KW Exterior and 6KW Mounting dimension:
10KW type
type | battery voltage | charge current |
HWC8-48140 | 48V | 140A |
HWC8-60120 | 60V | 120A |
HWC8-72100 | 72V | 100A |
HWC8-9672 | 96V | 72A |
HWC8-14448 | 144V | 48A |
HWC8-28824 | 288V | 24A |
HWC8-32022 | 320V | 22A |
HWC8-35220 | 352V | 20A |
10KW Exterior and Mounting dimension:
Pictures

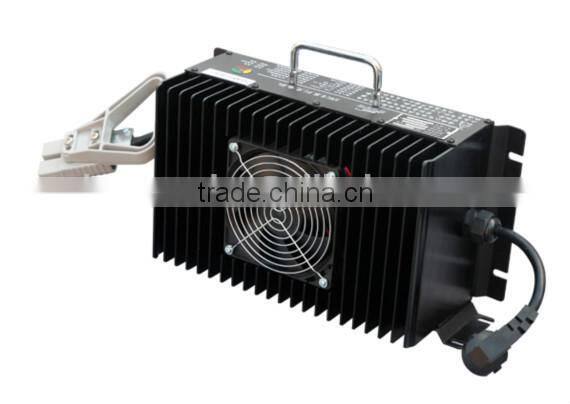

Portable charger

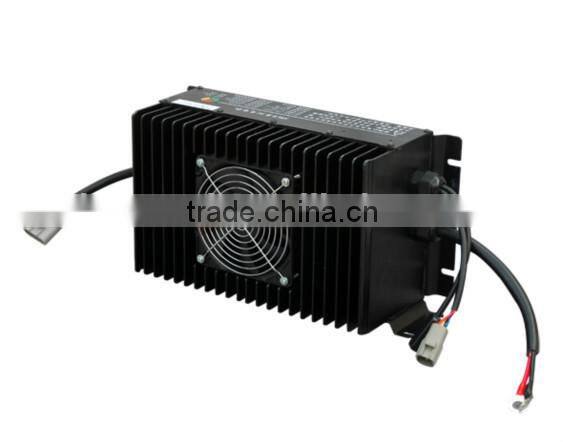

On board charger
