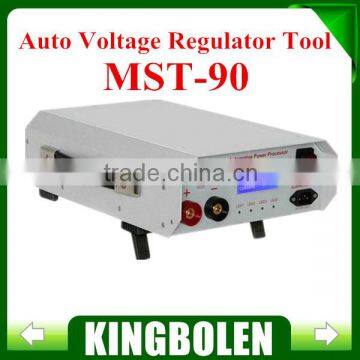

High Quality Auto Voltage Regulator MST 90 Automotive Power Processor MST-90 Hot Selling

MST-90 Intelligent Automotive Voltage Regulator

MST -90 Product Features:

1. Smart Car Program
2. High temperature alarm.
3. Charging dedicated power
4. Short circuit and reverse polarity protection
5. Intelligent charger for motor vehicles starter battery
6. Extensive protection functions and self-protection functions
7. Intelligent charger for motor vehicles starter battery
8. Input voltage 220V only, Output Voltage 14V/100A. (The input voltage of 11V needs to be customized)

Applicable models:

For Volvo, for Porsche, for Volkswagen, for Audi, for BMW, for Mercedes-Benz, for G-eneral Motors Etc.

Input Specification:

1. Efficiency: 85%
2. Power Factor: 0.95
3. Frequency range: 40-60HZ
4. Rated input voltage: 220V (+/-20%)

Output Specification:

1. DC voltage: 14.5V
2. Rated current: 0-100A
3. Rated maximum power: 1500W
4. Ripple and noise: 100mVp-p

Protection Specification:

1. Over-voltage: 15V
2. Working temperature: -40 - +85
3. Safety: UL60950, TUV EN60950-1
4. Overload: 90-110% of rated output power
5. Withstand voltage: I / P-O / P: 3KVAC I / P-FG: 1.5KVAC
6. Insulation resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70% RH
7. EMC: Complies with EN55022, EN61000

Package Including:

1set x Automotive Voltage Regulator
