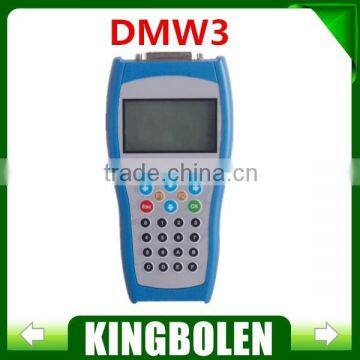

DMW3 is a new version hand-held car code reader for Audi Volkswagen cars. It supports almost all control module for Audi Volkswagen cars including the KWP1281 (K-Line), KWP2000 (K-Line), as well as KWP6000 CAN Bus) protocol. It can also change odometer, read anti-theft code, diagnose and programme keys.

Main function:

1. Diagnose(KWP1281, KWP2000, KWP6000)

2. Odometer Correction(K-line, CAN BUS)

3. Anti-theft code reader (IMMO1, IMMO2, IMMO3, WFS)

4. Key matching

Detail specification:

Diagnositc

1. information read of control unit

2. read fault code

3. clear the fault code

4. the implementation of component testing

5. read data stream

6. the basic setting

7. control unit coding

8. matching and adjustment

9. log in and authorization

Odometer Correction

1. VDO instruments (K-Line and CAN BUS)

2. Motometer dashboard (K-Line)

3. Marelli dashboard (CAN BUS)

4. Bosch dashboard (K-Line)

Anti-theft code reader

1. read the password for engine control unit

2. read password for anti-theft box

3. read password for dashboard

Key matching

1. control unit of anti-theft box

2. the dashboard control unit

3. Kessy control unit

Attention: DMW3 can not cover all VW or Audi cars.

Use the numeric keys of the keyboard 0-9: to enter the mileage, anti-theft password, data stream group number, channel number, etc. match. The numeric keys can also directly select the corresponding menu item.

Arrow keys: used to scroll the menu to change the data flow group number and channel number, adjust the digital input and so on.

Function keys: ESC to cancel the current operation OK to confirm the current operation. F1 and F2 for the confirmation of the special operation. Specific application can refer to the operation of each function description.

Software upgrade

DMW3 in-line mode DMW3 through the computer to read the sequence number, sequence number sent to the supplier to obtain the appropriate upgrade.

VW Immo King

VW Immo King( Immo1+2+3)

IMMO login code read (K+CAN)

Read information of ECU, Read DTCs and erase them. Login/Security Access to ECU.

Special functions:

Read immobilizer pin from engine ECU, Immobilizer box and instruments. Immo1, Immo2, Immo3 and WFS are supported. And it can add new keys to cars without known pin. because pin can be read from car. It supports odometer correction too.

Product Description

VWTool -- one Handheld tool for VW/Audi/Seat/Skoda.

Both KBus and CANBus cars are supported.

Diagnose functions: Support display information of ECUs, read out trouble codes of ECU and erase them, Login/Security Access to ECU.

More functions will be added later (output test, read live data, coding, basic setting, adaption, etc. )

Supported protocol: KWP1281, KWP2000, and CAN TP2. 0

Special functions: Odometer Correction, Read PIN Code, Add new Keys(via OBD2 connector only)!

KBus covers up the models 1994-2008 such as:

Audi A3, A4, A6, A8 separate immo box 1994-2009.

Almost all VDO instrument clusters for VW/Seat/Skoda up to year 2004.

Almost all VDO instrument clusters for Audi up to year 2001.

Include VDO instrument clusters with Seed-Key:

Some Passat B6, Bora/Jetta, Polo to 2004 year, Golf 4, Sharan to 2005 year.

Some Skoda Octavia/Fabia to 2004 year.

Some Seat instrument clusters up to 2004 year.

Some Audi instrument clusters (IMMO3).

More instrument clusters will be added later (Motometer, Bosch and Magneti Marelli, etc. )

CANBus covers up the new generation of instrument clusters from 2002 for VW / SEAT /SKODA/Audi such as:

New VW models, such as Golf V, Caddy, Touran, Passat B6, Jetta etc.

New Seat models, such as Altea II etc.

New Skoda models, such as Octavia etc.

And some Audi models, such as Audi A3, Audi A8 etc.

More instrument clusters will be added later (Visteon, Magneti Marelli, etc. )

Functions: Transponder match, code adjust, odometer adjust and resive, and failture test.

1. IMMO PIN READ

SUPPORT VW/AUDI IMMO PIN READER, INCLUDE IMMO1(IMMOBOX), IMMO2(INSTRUMENT), IMMO3(INSTRUMENT).

THE SUPPORTED CAR MODELS LIST:

Seat Leon

Seat Toledo

Seat Altea

Seat Altea XL

VW Jetta

VW Caddy

VW Golf

VW Crossgolf

VW Touaran

VW EOS

VW Individual

VW PASSAT B4

VW PASSAT B5

VW Passat platform B6

VW POLO

VW BORA

Skoda Octavia

SKODA FIABA

Skoda Scout

Skoda Roomster

Audi A6

VW Jetta VW Caddy VW Golf VW Crossgolf VW Touaran VW EOS VW Individual VW PASSAT B4 VW PASSAT B5 VW Passat platform B6 VW POLO VW BORA Skoda Octavia SKODA FIABA Skoda Scout Skoda Roomster Audi A6 3BD920802

3BD920802A

3BD920806B

3BD920806

3BD920806___KOMBI+WEGFAHRSP_VDO_V01

3BD920806___KOMBI+WEGFAHRSP_VDO_V02

1J5920805B_

1J5920825A

1J5920826A__

1J5920826C

1J5920826A__KOMBI+WEGFAHRSP_VDO_V20

6Q0920800A

6Q0920800A__KOMBI+WEGFAHRSP_VDO_V14

6Q0920800__x14KOMBI+WEGFAHRSP_VDO_V11

1GD919801B__22-KOMBIINSTR. _VDO_V00_

4C0920930B__C5-KOMBIINSTR. _VDO_D13_

4C0920900A__C5-KOMBIINSTR. _VDO_D09_

6K0919033BQ

4B0919033SD

330919033B

1GD920800C 1GD920800A

3AO919860J

357919042AM

1J5920806A

1J5920806B. . .

2. KM CHANGING

SUPPORT VW/AUDI KM CHANGING. DISPLAY OLD KM, DIRECT ENTER NEW KM, DO NOT NEED COMPUTER.

THE SUPPORTED CAR MODELS LIST:

Seat Leon

Seat Toledo

Seat Altea

Seat Altea XL

VW Jetta

VW Caddy

VW Golf

VW Crossgolf

VW Touaran

VW Individual

VW PASSAT B5

VW Passat platform B6

VW POLO

VW BORA

Skoda Octavia

SKODA FIABA

Skoda Scout

Skoda Roomster

Audi A6
