CTB2008 Best Under Vehicle Inspection System Camera Car Security Camera System

Welcome to visit our Alibaba website and look over our products. We have 15 years experience in the field of  X-ray baggage scanner, multi-zone walk through metal detector, hand held metal detector, under vehicle scanning system and Anti-explosive products

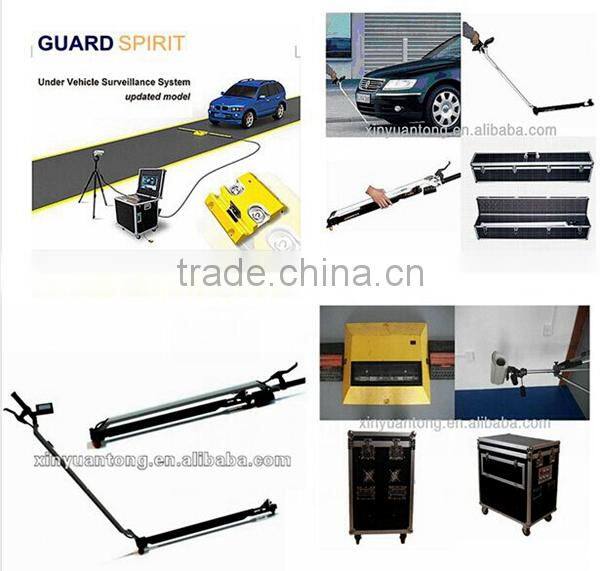

C CTB2008 Best under vehicle inspection system camera car security camera system

Specification:

Monitor

Model:4 inch Colour TFT LCD

Resolution:480(W) *234(H)

Display area:82.1(W)*62.8(H) mm

Dot Matrix:0.171(W) *0.261(H)

Camera

Model:F2.5 Wide-Angle CCD

Rotation Angle:130°

Adjustment:Steel wire control by handCamera

Pixel:NTSC 512(H) 492(V) / PAL 500(H)482(V)

Resolution:420 TV lines

Working Voltage:DC 12V 90MA

Battery

Capacity:220MAh

Recharge Mode:Battery recharge alone or united

Recharge Voltage:110~240V

Output Voltage:9~12.6V

Low battery alarm(Option) :Buzzer alarm when battery voltage lower than 10V

Working Time:About 7 hours Continuous

Working temperature:0~60

Others

Net weight:3.5KG

Volume: 1023( Open 1790 )* 149*156 mm

Features:

*Adopt 1.0mm strip steel for the products, good appearance,light and handy and convenient to operate.

* High capacity Lithium battery for long time use.Higher capacity battery can be ordered according to different requirements.

*Portable design with wheels and handle, much more easier to operate and move.

*Assistant LED lights design for dark conditions,real-time show the result on LCD screen and avoid facula.

*Foldable design,easy to take with and can detect hole depth 1790mm when it is formed a 180 degree angle .

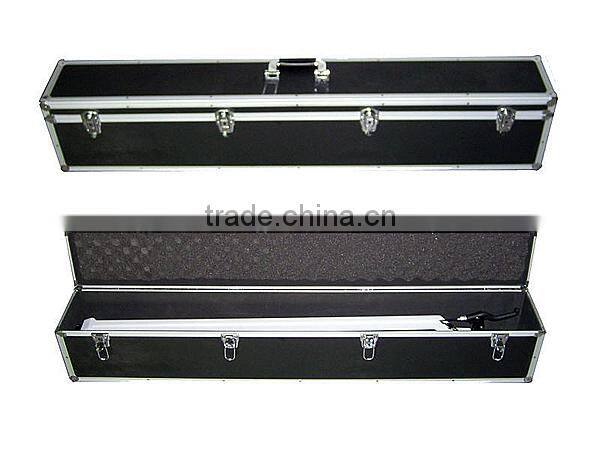

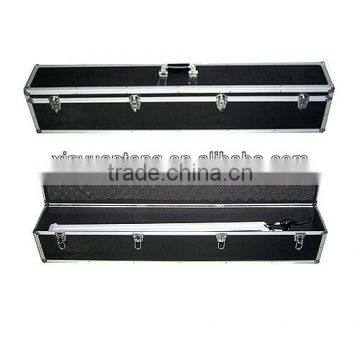

*The two parts of the products can be locked together when fold,stable and can use a belt to carry with.Package with aluminous box,convenient to move and take with.

*Far from fire and electric shock ,pls do not put the machine in wet place or rain,operation and   maintenance pls follow the user manual.

Gross wight:8KG

Volumetric Weight :9.5KG

Package Size:21*23*114cm
