New Product Hand Held Metal Detector MD150

New product Hand Held Metal Detector MD150

INTRODUCTION

It is a high performance Hand Held Metal Detector

Designed  to meet  the  exact  requirements of the  security  industry.

Typical uses will  include body search for  offensive weapons  in crowd

control, airport and border security, checking  parcels and  letters for

metal objects and anywhere that hidden metal needs to be detected.

OPERATION

1.It  operates on one 9V standard or rechargeable battery.  To  install

the  battery, slide off the battery cover and  place  the  battery into its

compartment while matching the +/- symbols.

2.Turn the unit on by pushing the on/off switch until it clicks on and

the greed LED is lit. The detector is now operational although an

increase  in sensitivity and depth range can be achieved by turning

the sensitivity adjuster anti-clockwise until the red LED is lit and a

constant audio tune is heard. Turn the sensitivity adjuster clockwise

until the red LED just goes out and the tone fades (green LED on).

The detector is now tuned for optimum sensitivity and depth range.

3.Holding the unit with the detection face towards the surface,  sweep

backwards and forwards continuously at a height of 10-30mm

above the area to be scanned.

4.The presence of metal will be indicated by the audio warning tone

and the red light coming on. If the detector is held still over a metal

object the detection signal will automatically reduce,  therefore it is

important that the unit is continually scanning the surface when in

use.

PERFORMANCE

The sensitivity of the detector is determined primarily by the

size, shape and composition of the object to be detected.

Typical performance figures are given below:

Maximum Detection Range

Object Low Sensitivity Optimum Sensitivity

38 Caliber hand gun 15cm    20cm

Pen knife    10cm      15cm

Razor Blade    5cm    10cm

LOW SENSITIVITY OPERATION

Press the low sensitivity switch during detection,  scanner will then

only respond to bigger metal objects such as a hand gun, knife, etc and

will not  respond to  small metals such as a coin,  key,  hatpin,  etc. Do

not release the  low sensitivity switch until you complete low

sensitivity detection.

RECHARGEABLE BATTERY SOCKET

You may use a 9V rechargeable battery to power the detector.

It takes four to six hours to fully  charge the battery.  The battery

charger socket is located at the side of the detector .

Note: Turn off the detector when charging it.

EARPHONE

Can connect earphone to use in the noisy environment

SIGNAL LED LIGHT

The more LED shine means the metal bigger

VIBRATOR BUTTON

The detector is equipped with a vibrator button also located at the  side

of the detector.  Vibration function should be used in noisy work

situations  or in places where the operator does not wish for the audio

tune to be  heard in his surrounding area. Press this button,  vibrator

works; release it, audio tune works.

NOTE

If the green light goes out completely or fails to come on or if the

unit  is making unfamiliar audio tunes,  the unit is unstable and

should not be used until the battery is recharged or replaced.

If the unit is not to be used for a certain length of time  it is

advisable to  remove the battery to avoid battery leakage with could

cause serious damage to the detector

When not in use, the detector should be stored in a dry warm

environment.

SPECIFICATION

Power Voltage:9V Standard or Rechargeable Battery

Power:270mW

Operating Frequency:22KHZ

Operating Current:<50mA

Operating Voltage:7V -9V

Operating Temperature:-5  ℃  to +55  ℃

Net Weight:409g

Dimensions:41(L)X8.5(W)X4.5(H)cm

Application

airport, government office, courts, prisons, schools, stadiums, place of entertainment and other applications.It can search all concealed weapons, tools and hidden metal objects, and can also be used for inspect the hand baggage, mail and parcel.

Shenzhen Xinyuantong Electronics Co., Ltd.

Shenzhen Xinyuantong Electronics Co., Ltd.was established in 2000 with the registered capital of RMB 31.5 million, the total business space is 12,000 m², there are more than 260 employees, including 120 research, engineering and technical personnel; we are one professional high-tech company which provide the solutions to the public safety, and provide the complete production and integration services.

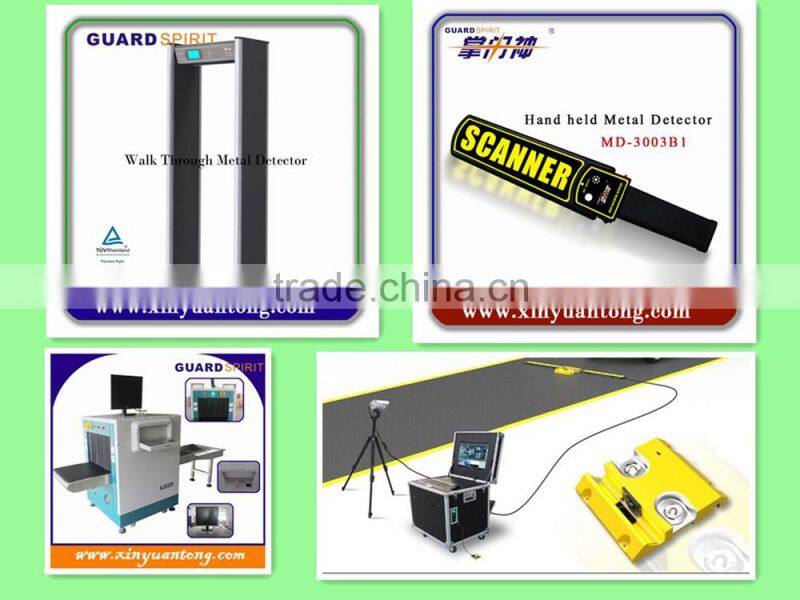

The Company is committed to the technical development and research of “GuardSpirit” series of security products, the developed products have been granted by 28 national patents, and have formed five categories of products including the metal detectors, X-ray baggage scanners, test products for radioactive materials, vehicle chassis inspection products, EOD and anti-explosion products.
