Good After Service MVCI Professional Diagnostic Interface Factory Diagnostics and Reprogramming OBD2

Specifications

                          High performance factory diagnostics MVCI interface

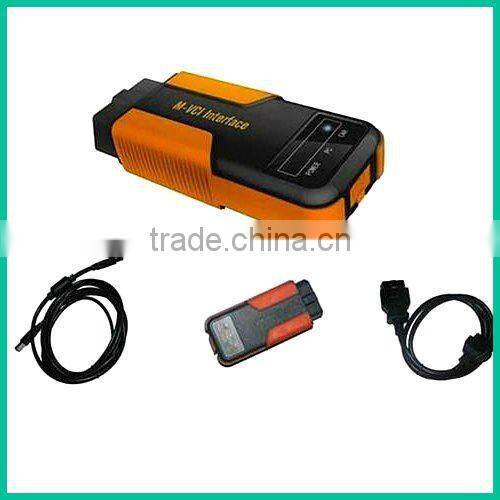

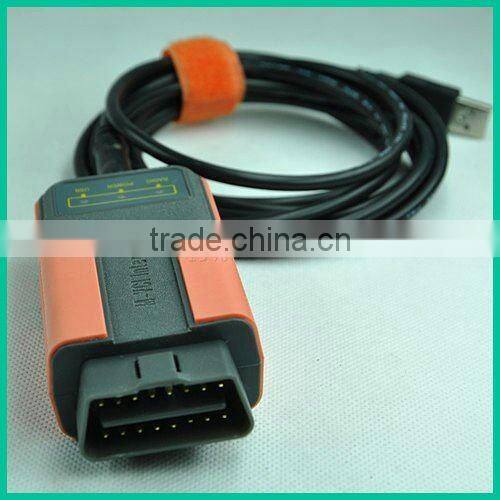

MVCI tool is a high performance diagnostics and reprogramming interface for TOYOTA TIS. MVCI device is compatible with Toyota group vehicles like Toyota, Lexus, and Scion over the J1962 DLC3 diagnostic connector. Ideal tool for Toyota group vehicles workshops, everything you need to maintain Toyota, Lexus and Scion vehicles that uses these protocols: K-Line ISO 9141, KWP 2000 ISO 14230-4, SAE J1850 PWM, SAE J1850 VPW, CAN 2.0B ISO 11898, CAN ISO 15765-4

Features:

Fully compatible with Toyota TIS Techstream, Hond HIM,VOLVO DICE

Supports Diagnostics, Reprogramming, Active tests, and key programming

Supports most 1996 and newer Toyota, Lexus, and Scion vehicles with OBDII/DLC3 diagnostics

Fully compatible with SAE J2534

Programmable power supply

Able to apply 5V-24V to OBD pins 6,9,11,12,13,14 or AUX 2.5mm stereo connector

Able to apply GND to OBD pins 6,9,11,12,13,14,15 or AUX 2.5mm stereo connector

RGB status LEDs

Supported Protocols:

• K-Line ISO 9141
• KWP 2000 ISO 14230-4
• SAE J1850 PWM
• SAE J1850 VPW
• CAN 2.0B ISO 11898
• CAN ISO 15765-4

Specifications:

• Operating Temperature: -20 to 70 C ( -4 to 158 F )
• Storage Temperature: -40 to 85 C ( -40 to 185 F )
• Diagnostic Interface: 16PIN
• USB Interface : USB 2.0
• Power: DC 5 V – 36V
• Consumption: 0.7W
• Dimensions: 95mm(3.74″)L x 49mm(1.93″)W x 28mm(1.10″)H
• Net Weight: 85g
• Gross Weight: 193g

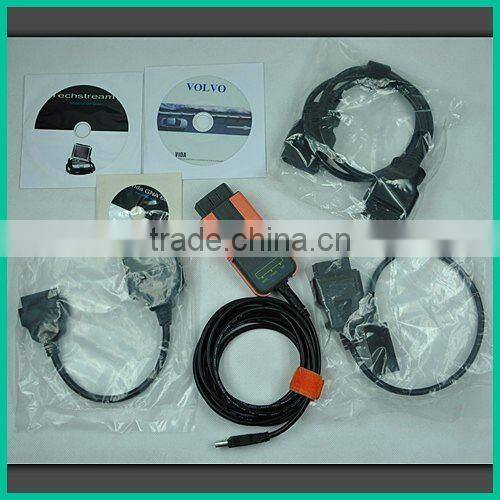

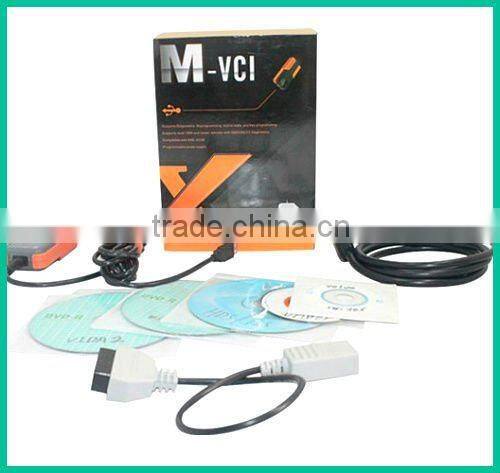

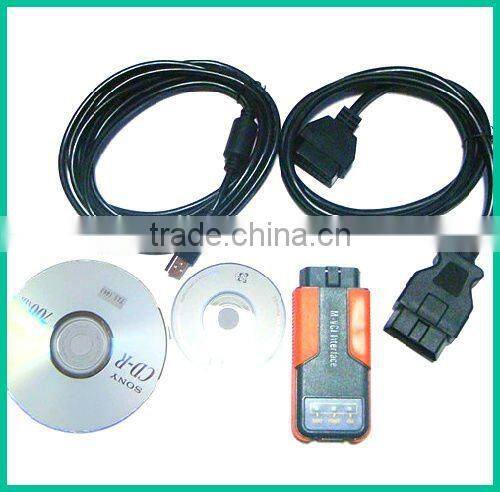

Accessories Included:
