Home > Products > Professional Diagnostic Tools > 2016 Newly With PIC18F458 Chip Opcom Opel Diagnostic Interface Scanner Can Obd2 for Opel V1.59 op Com Opel Can Bus Interface
2016 Newly With PIC18F458 Chip Opcom Opel Diagnostic Interface Scanner Can Obd2 for Opel V1.59 op Com Opel Can Bus Interface
Negotiable
/ Piece
5 Pieces(Min. Order)
- XiangGang
- Credit Card
You May Like
-
2015 OP COM for Opel V1.45 Latest Version OBD2 OPCOM/OP-COM 2010 for Opel With Qaulty Warranty
-
Newest Opel OP-COM Scanner Diagnostic Tool OBD2 OBD-II OBD 2 OBDII OBD2 Op-com / Op Com / Opcom/ For Opel Scan Tool For Opel
-
Full Set Lexia 3 V48 Lexia3 Citroen Peugeot Diagnostic Scanner With 30pin Cable & S1279 Cable
-
Citroen Peugeot Diagnostic Professional Tool for Complete Car Scan/test Lexia 3 +30pin+s1279
-
Best Price Super Free Shipping Launch X431 Gx3 Super Scanner
-
Newly Version Functional Launch X431 Gx3 Scanner
Product Details
| Type | Engine Analyzer | Voltage | 12V | |
| Power | 9W | Place of Origin | Guangdong, China | |
| Brand Name | OP-COM | Model Number | OP-COM | |
| Warranty | 1 Years |
Product Description
OP COM For Opel CAN OBD2 Firmware V1.59
1. Latest firmware V1.59, software 120309A. Both of them can be updated in future by CD or Email.

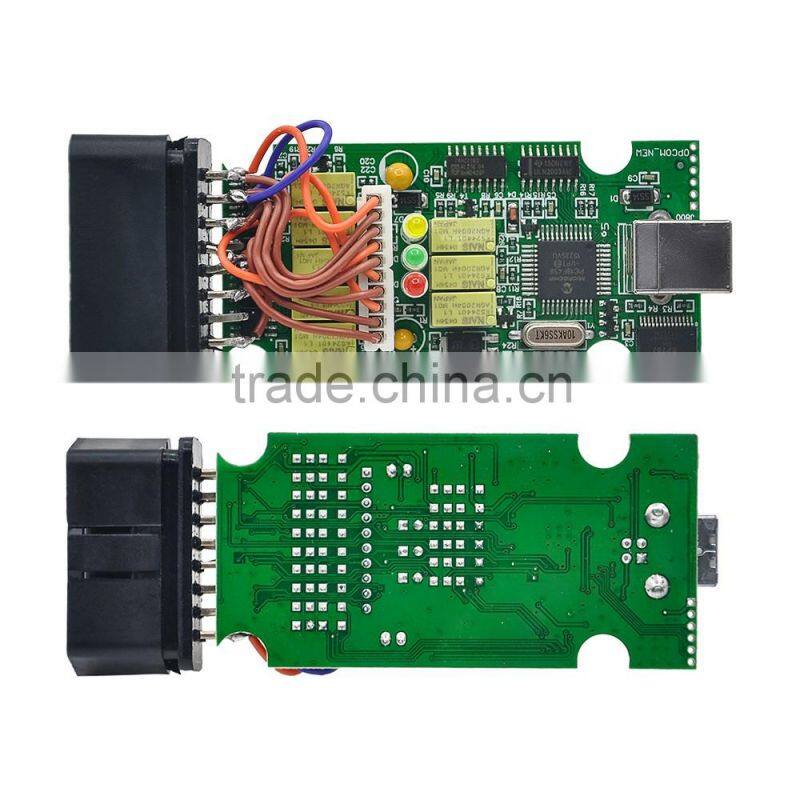

2. With PIC18F458 chip which makes it to be very stable and high speed.
3. Never Update It Online, It Will Damage The OP-COM
OPCOM V1.59 Firmware 2012V Software Function:
1. It covers almost for all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
4. Since for Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
5. Fault codes will be shown with all available information:
Full Fault Code Text Description:
1) Full status information (Present, Not present, Intermittent)
2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.
4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or for Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!
You can also run output tests on many controllers.
PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

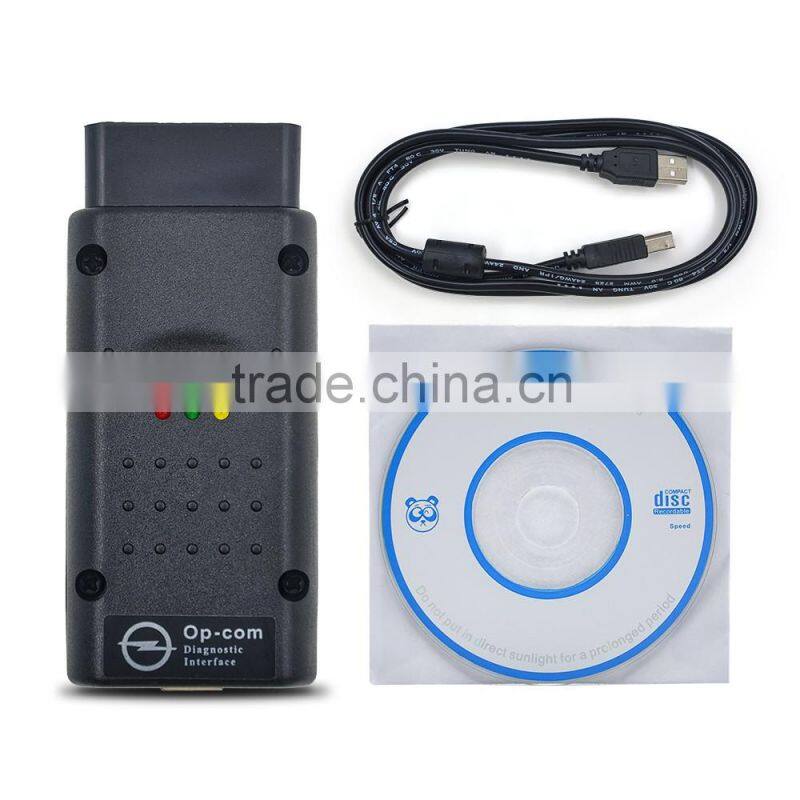

opel opcom Package list:
1pc x OP COM Interface
1pc x USB Cable
1pc x Software and Drivers CD
