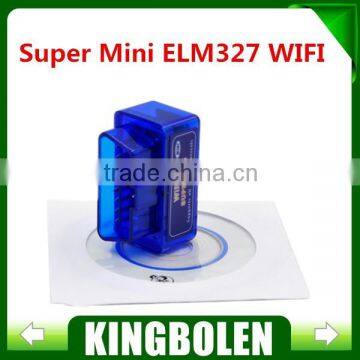

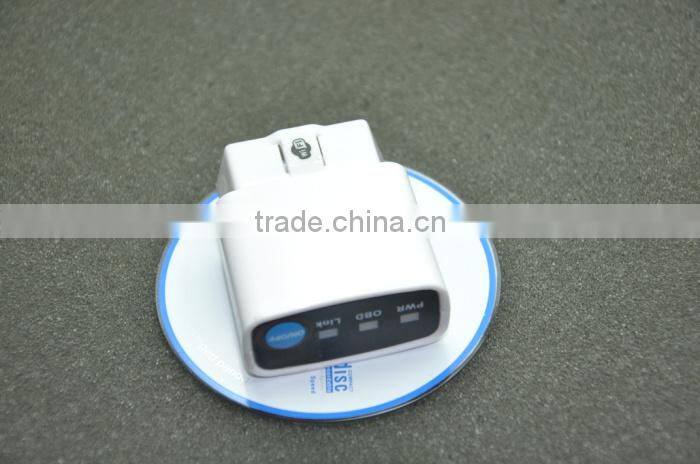

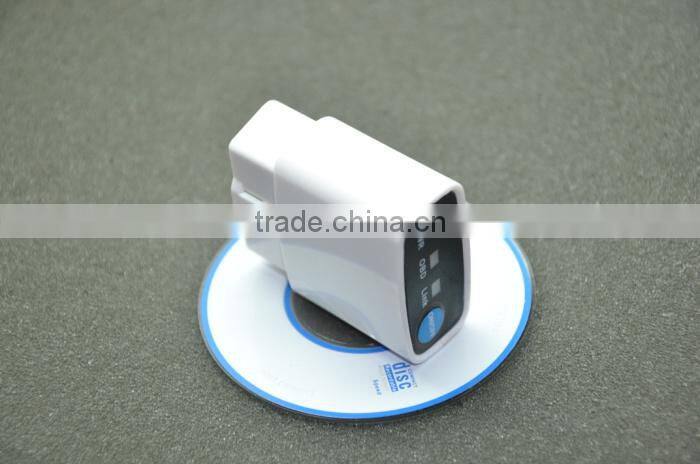

High quality mini ELM327 V2.1 OBD2 OBD-II Wifi Auto Diagnostic Tool

Description:

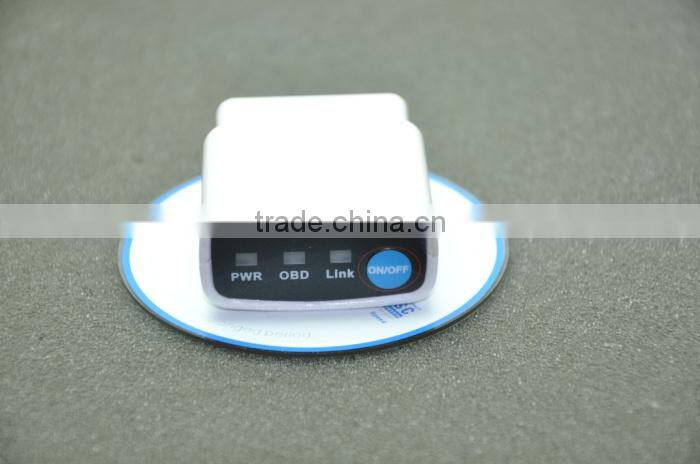

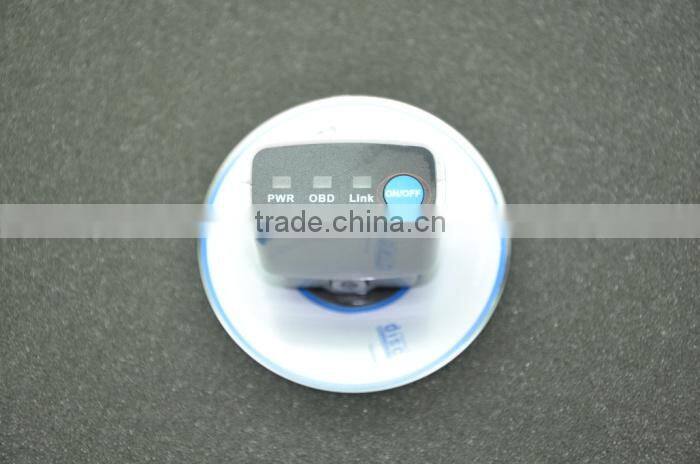

Wifi ELM327 interface is able to detect and interpret obd2 / eobd protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, for iOS). There are plenty of software packages available, which are fully compatible with this tool. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. This tool is only 2.7 x 1.25x 0.9 inches, and it comes with a 6 ft OBDII cable for easy installation. It also includes a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles which are obd2 or eobd compliant. Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode.

With proper software installed in the host device, you may have following parameters read out from your vehicle:

Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim

Note:
Your vehicle may not support all above parameters.How many parameters you can get is depended on the vehicle manufacturer’s implementation.

Multi-Protocol Support

ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
SAE J1939

Hardware requirements:
PC/for iPhone/for iPod/for iPod Touch/for iPad
Important: Your PC requires wireless LAN router supporting WiFi 802.11 a/b/g for linking.

Software Requirements:
- All ELM327 based software
- For iOS base software in Apple store: Rev / FUZZYCar / DashCmd / SpeedPORT / Nova Scan
Attention:For iOS base software are not included you must buy from Apple App Store! we only offer PC version software &  Instructions manual (on the CD)

Technical Specifications:
SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius

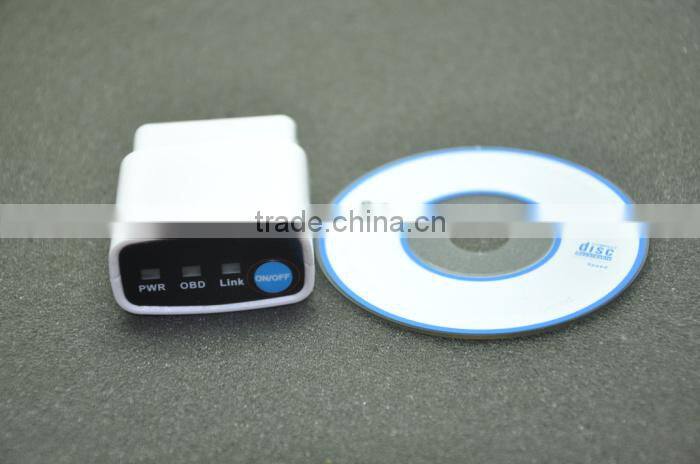

Packing List:

1 x Wifi ELM327 obd interface
1 x Software CD
