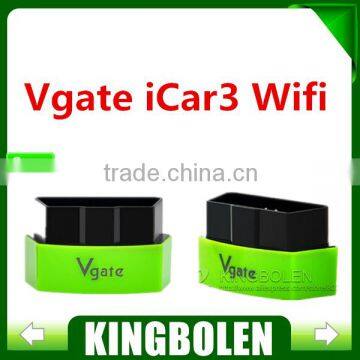

Wifi ELM327 obd2 Scan Tool Vgate iCar3 Wifi With 5 Colors Available

Features:

* Wireless Rate:IEEE 802.11n,IEEE 802.11g, IEEE 802.11b

* Channle: 1-14

* Frequency range: 2.4-2.4835G

* Send Power:15~18DBM

* Interface: UART,GPIO

* Antenna Type: External antenna

* Distance:100~300m(different situation)

* Small size, compact structure. Plug and never unplug

* Stable wireless connection

* No wires or batteries (adapter is powered by the diagnosis size sockets)

* Stop communication, wait half an hour, auto sleep

* Supports all OBDII protocols

* The adapter uses the fastest and most reliable ARM chips

Function:

* Read, erase and display code descriptions problems - both standard and

spetskodov manufacturers.

* Measure the fuel consumption.

* Display real-time operating performance of the car, such as momentum,

vehicle speed, oil pressure, coolant temperature, engine load, intake manifold

pressure, throttle position, the values of oxygen sensors, air intake

temperature, and more.

* Turn off the MIL (signal Check Engine).

* Download data to external media in a variety of formats for later printing.

* Record various parameters, display graphics in real time, and more.

With iCar3 you will be able to perform a complete computer diagnostics car

and even to correct minor faults without resorting to service stations.

iCar 3 scantool is a high-quality automotive scanning tool, supports all OBD-II

protocols :

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)
