LED Temperatrue Thermocouple Indicator

FOB Price

US$ 762 - 778 / Piece

1 Piece(Min. Order)

Port Tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	Qirun
Model Number	KS/W/R/B

Product Description

Specifications

LED Temperatrue Thermocouple Indicator
High accuracy,good stability
Accepts 4 types thermocouple probe
0.2%/1 character

LED Temperatrue Thermocouple Indicator
High accuracy,good stability
Accepts 4 types thermocouple probe
error:0.2%/1 character

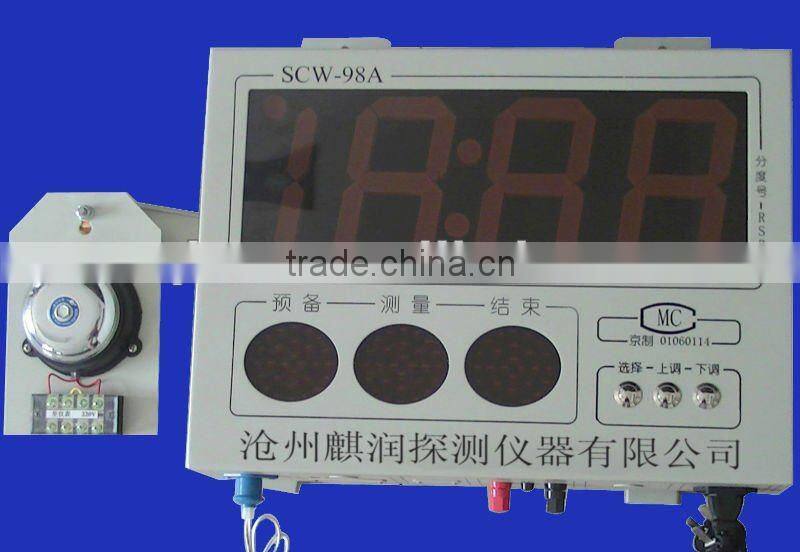

The Hang Type LED Temperature Thermocouple indicator is connected with the thermocouple probe uesd for momitoring the temperature of molten metal for smelting and casting.

Technical Specification:

1.Measuring error:±0.2% ±1characters.

2.Working conditions:temperature 5-40°c relative humidity 85%

3.Storage conditions:temperature 0-45 °crelative humidity 85%

4.Power supply way:AC 220V ±10%;Frequency:50HZ± 2Hz

5.Power loss approximately: 50W

Type	SW-98A
Thermocouple Tyoe	S	Wre3/25	R	B
To test molten steel temperature range	1200°C-1769°C	1000°C-1999°C	1200°C1769°C	1200°C-1820°C
To test molten Iron temperature range	900°C-1769°C	900°C-1999°C	900°C-1769°C	900°C-1820°C
To test molten Copper temperature range	800°C-1769°C	800°C-1999°C	800°C-1769°C	800°C-1820°C
Continuous temperature-measuring range	0°C-1769°C	0°C-1999°C	0°C-1769°C	400°C-1820°C
Display	Super-bright LED display,High character 127mm(5 inches)or liquid crystal display
Size	410mm300mm95mm
Weight	4kg

The acousto-optics alarm:

a.The gree light bright expression thermcouple puts through,the measuring appliance enters the preparation condiction.

b.The yellow light brightly expressed the measuring appliance is surveying.

c.The red candle bright expressiong survey process ended,at the same time the electric bell inspires the sound,4-20mA or 1-5V analog output interface (specify when ordering),BCD at-large external display for the parallel interface
