High Quality 3 Years Warranty Super Mini ELM 327 Bluetooth OBD2 OBD II Works On Android Torque ELM327

Specifications

2014 Top-Rated New Super Mini ELM327 Bluetooth Interface V2.1 OBD2 II Car Auto Diagnostic Tool Mini ELM 327

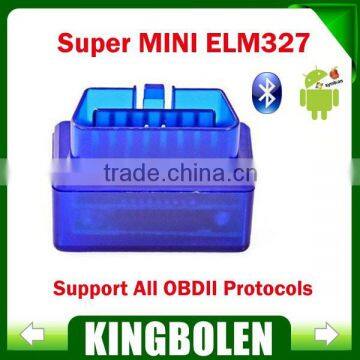

Super Mini ELM327 Bluetooth

Lateat software version V2.1 supports all OBD-II protocols.

Use on the PC software version is V2.1,use via phone software version is V1.5,also hardware is v1.5

Highlights:
The newly developed wireless scan tool.
It supports all OBD-II protocols.
It is the latest version 2.1
Bluetooth connection, no Batteries, Cables, or Switches.
Wireless (Bluetooth) 5~ 10 meters
Retrieve Fault Codes (DTCs) and clear Check Engine lights.
Can also be used with a PC with a Bluetooth Card.


Features:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Set the maximum number of responses to obtain
Remove spaces from ECU responses (to speed data transmission)
Store a unique identifier in EEPROM
Set the CAN mask and filter with one command
Easily switch between variable and fixed CAN message lengths
Send CAN remote frames (RTRs)


Display current sensor data, including:
      Engine RPM
      Calculated Load Value
      Coolant Temperature
      Fuel System Status
      Vehicle Speed
      Short Term Fuel Trim
      Long Term Fuel Trim
      Intake Manifold Pressure
      Timing Advance
      Intake Air Temperature
      Air Flow Rate
      Absolute Throttle Position
      Oxygen sensor voltages/associated short term fuel trims
      Fuel System status
      Fuel Pressure
      Many others...


Multi-Protocol Support:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
A.SAE J1939 CAN (29bit ID, 250*Kbaud)
B.USER1 CAN (11*bit ID, 125*Kbaud)
C.USER2 CAN (11*bit ID, 50*kbaud)
   *default settings (user adjustable)

Vehicle Coverage:


Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles ( Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)

Alfa Romeo/ Ad/ Bentley/ BW/ Cadillac/ Chevrolet/ Chrysl/ Citroen/ Daewoo/ Fiat/ Ford/ GM/ Hod/ Hyundai/ Isuzu/ Jaguar/ Jeep/ Kia/ Land Rover/ Lexus/ Mazda/ Mercury/ Mini/ Nissan/ Mitsubishi/ Opel/ Peugeot/ Posch/ Renault/ Rover/ Saab/ Seat/ Skoda/ Toyt/ Vauxhall/ Volvo/ VW

For your information:
For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.


Software Included:
Scantool_net113win (Full Version)
EasyOBDII V2.2 (Free Version)
OBD2Spy (Demo Version)
Scan Master-ELM (Demo Version)
wOBDCRAZY  (Demo Version)

This hardware can match much other software still! But most of them are not free!
Works for Windows98/ME/2000/XP/Vista & 7!
This tool does not match abs and airbag system!
Bluetooth pair code: 1234
Main Control Chip: PIC18F2480


Packing List:


A.1*EOBD / OBD2 Bluetooth Diagnostic Interface

B.1*CD
