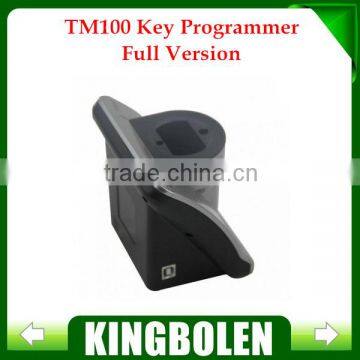

2014 New Release TM100 Transponder Key Programmer with Basic Module

Specifications

TM100 programmer is a new generation of transponder programmer which is developed to cover, read, write and generate the latest
transponders used in the latest vehicle immobilizer technologies. New function for reading the Kilometers, VIN and transponder type
for all BMW keys was added to the BMW software module! Immo pin code is also displayed for some car models. With this programmer
you can generate images for many different original transponders like Philips ID33, Philips Crypto for different ID's and Texas
crypto!

After generating a new transponder with TM100 Programmer, you will not need any additional diagnostic equipment to program the
generated transponder to the car! It will start the car directly! You only have to write the new file back into the immobilizer
system!

General functions:

General function 1. The list of supported for the present transponders.

Philips transponders:
PCF7930-31 reading
PCF7935 reading, shadow memory
PCF7936 writing, reading, password mode, crypto mode, Manchester or Biphase encodings
PCF7941 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7942 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7943 transponder, remote, Manchester or Biphase encodings
PCF7944 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7945 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7946 transponder, remote, Manchester or Biphase encodings
PCF7947 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7952 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7953 IDE, EEPROM reading
PCF7961 transponder, remote, Manchester or Biphase encodings

Temic transponders:
Temic 11 reading, writing to T5
Temic 12 reading, writing to T5
Temic 8C reading

Megamos transponders:
Megamos 13 reading, writing to T5, emulating on PCF7930-35
Megamos 48 reading, writing, PIN, unlock by PIN, full range of memory contents
Megamos CRYPTO-2 8E read ID, read/write EEPROM, write Cryptokey

Texas transponders:
Tiris 4C reading
Tiris 4D DST crypto reading, writing
Tiris 4E DST crypto reading, writing
Tiris DST+ reading

General function 2. The list of supported type for image generator.

ID33 for Mazda
ID33 for Nissan
ID33 for Opel
ID33 for VW
ID40 for Opel
ID40 for Nissan
ID41 for Nissan
ID44 for VAG
ID45 for Peugeot
ID46 for Chery
ID46 for Chevrolet circle+
ID46 for Chrysler Y170
ID46 for Chrysler Y164
ID46 for Geely Emgrand
ID46 for Mitsubishi
ID46 for Peugeot 206, 307
ID46 for Porsche Cayenne
ID46 for Renault Clio II
ID46 for Renault Clio III
ID46 for Renault Espace4 phase 1
ID46 for Renault Espace4 phase 2
ID46 for Renault Laguna2 phase 1
ID46 for Renault Laguna2 phase 2
ID46 for Renault Master phase 2
ID46 for Renault Megane2
ID46 for Renault Scenic2
ID46 for Renault Trafic phase 2
ID46 for Renault Vel Satis phase 1
ID46 for Renault Vel Satis phase 2
ID46 for VW Phaeton, Touareg
ID48 for China VW Jetta 2011
ID60
ID61
ID62
ID63
ID64
ID65
ID66
ID67 for Toyota
ID68 for Toyota
ID70 for Toyota, Peugeot
ID73 for Mercedes C, E class 1996-1999
ID73 for Mercedes G class 1996-1999
ID73 for Mercedes ML
TP22 for Seat
TP23 for VW
TP24 for Skoda
TP25 for Audi

Special functions:

Special function 1. It has following key maker modules at the first version(V1.0):

Module 1: VW Passat B6/CC Megamos 48
Description: Read EEPROM 95320 in comfort module, write transponder with Megamos 48(TP23), write the new generated file back to 95320.
Advanced function: View Login code, VIN, Component Protection Bytes(7-byte).

Module 2: VW Passat B6/CC HITAG2
Description: Read EEPROM 95320 in comfort module, write transponder with ID46(PCF7936), write the new generated file back to 95320.
Advanced function: View Login code, VIN, Component Protection Bytes(7-byte).

Module 3: Audi/Touareg/Porsche/Bentley KESSY HITAG2(Before MY2008)
Description: Read EEPROM 93C86 in KESSY module, write transponder with ID46(PCF7936), write the new generated file back to 93C86.
Advanced function: View Login code, VIN, Component Protection Bytes(7-byte).

Module 4: BMW CAS1,CAS2,CAS3,CAS3+ valet key
Description: Read Motorola MCU in CAS module, write transponder with ID46(PCF7936), PCF7942,PCF7943,PCF7944,PCF7945, write the new
generated file back to CAS. New key can start engine, but without remote function.
Advanced function: View VIN, DME code, odometer, transponder type, remote frequency.
Highlight: Locked PCF7943, PCF794 can also be reused.

Module 5: BMW CAS1,CAS2,CAS3,CAS3+ remote key
Description: Read Motorola MCU in CAS module, write transponder with ID46(PCF7936), PCF7942,PCF7943,PCF7944,PCF7945, write the new
generated file back to CAS. New key can start engine with remote function.
Advanced function: View VIN, DME code, odometer, transponder type, remote frequency.
Highlight: Locked PCF7943, PCF794 can also be reused.

Module 6: BMW motorcycle HITAG key
Description: Read M58BW016, write transponder with ID46(PCF7936), write the new generated file back to M58BW016.

Module 7: Audi EZS Megamos 8E key
Description: Read MC9S12, write transponder with ID8E(Megamos 8E), write the new generated file back to MC9S12.
Advanced function: Unlock Megamos 8E by dump.

Module 8: Ducati key
Description:
Cover the following models:
Panigale 1199
Monster 400
Monster 696
Monster 796
Monster 1000
Multistrada 620
Superbike 748
Superbike 749
Superbike 848
Superbike 999
Superbike 1098
Superbike 1198
Sporttouring ST3

Module 9: Toyota/Lexus key
Description:
Cover all Toyota and some Lexus models(Tiris 4C, Tiris 4D, Tiris DST+) except for latest type H transponder.
Toyota Auris immobox 2003- (93C56)
Toyota Auris immobox 2005- (93C66)
Toyota Avalon ECU (93C56)
Toyota Avalon ECU (MC68HC11)
Toyota Avanza immobox 2008- (93C56)
Toyota Avensis immobox (MC68HC05)
Toyota Avensis immobox -2004 (24C04)
Toyota Avensis immobox 2004- (93C66)
Toyota Avensis ECU -2003 (93C56)
Toyota Avensis ECU -2004 (25080)
Toyota Avensis ECU 2004- (93C56)
Toyota Aygo immobox 2003-(24C04)
Toyota Camry immobox -2004 (24C04)
Toyota Camry immobox -2004 (93C66)
Toyota Camry immobox 2005- (93C66)
Toyota Camry ECU -2004 (93C56)
Toyota Camry ECU -2004 (93C86)
Toyota Camry ECU -2003 (MC68HC11)
Toyota Camry ECU 2005- (93C56)
Toyota Carina E immobox (MC68HC05)
Toyota Carina E immobox (24C04, ID33)
Toyota Carina E immobox (24C04, ID4C)
Toyota Celica immobox (24C04, ID33)
Toyota Celica ECU 1999- (93C56)
Toyota Corolla Immobox -2004 (24C04)
Toyota Corolla Immobox -2004 (93C66)
Toyota Corolla Immobox 2005- (93C66)
Toyota Corolla ECU -2004 (93C56)
Toyota Corolla ECU -2004 (24C02)
Toyota Corolla ECU -2004 (25020)
Toyota Corolla ECU -2004 (95080)
Toyota Corolla ECU 2005- (93C56)
Toyota Crown Majesta ECU (93C56)
Toyota Duet immobox (93C66)
Toyota Echo ECU (25040)
Toyota Echo ECU (93C66)
Toyota Estima immobox (24C04, ID33)
Toyota Hiace 1999- (93C66)
Toyota Highlander immobox 2005- (93C66)
Toyota Highlander ECU -2004 (93C56)
Toyota Highlander ECU 2005- (93C56)
Toyota Hilux 2001- (93C66)
Toyota Hilux 2006- (93C66)
Toyota Kluger immobox 2005- (93C66)
Toyota Kluger ECU 2005- (93C56)
Toyota Land Cruiser immobox DIESEL -2004 (93C66)
Toyota Land Cruiser immobox 2005- (93C66)
Toyota Land Cruiser ECU GASOLINE (93C56)
Toyota Land Cruiser ECU 2005- (93C56)
Toyota Matrix immobox 2004- (93C66)
Toyota Matrix ECU 2004- (93C56)
Toyota MR2 -2004 ECU (93C56)
Toyota Paseo immobox (24C04, ID33)
Toyota Passo immobox (93C66)
Toyota Picnic 1999 (93C66)
Toyota Prado immobox 2005- (93C66)
Toyota Prado ECU 2005- (93C56)
Toyota Previa immobox (24C04, ID33)
Toyota Previa immobox (24C04, ID4C)
Toyota Prius immobox -2004 (93C66)
Toyota Prius immobox 2005- (93C66)
Toyota RAV4 1996 (25080)
Toyota RAV4 1997 (93C66)
Toyota RAV4 2004- (93C66)
Toyota Rush immobox -2005 (93C66)
Toyota Rush immobox 2006- (93C66)
Toyota Sequoia immobox -2004 (93C66)
Toyota Sequoia immobox 2005- (93C66)
Toyota Sienna immobox 2005- (93C66)
Toyota Sienna ECU 2005- (93C56)
Toyota Solara ECU (93C56)
Toyota SportsVan ECU (25080)
Toyota Starlet immobox (24C04, ID33)
Toyota Surf immobox 2005- (93C66)
Toyota Surf ECU 2005- (93C56)
Toyota Wish immobox 2003- (93C66)
Toyota Wish ECU 2005- (93C56)
Toyota Yaris 1998 (24C04)
Toyota Yaris 2001 (25020)
Toyota Yaris 2002 (95P08)
Toyota Yaris 2002 (95080)
Toyota Yaris 2003 (25040)
Toyota Yaris 2003- (93C56)
Toyota Yaris 2003- (93C66)
Toyota Yaris 2003 (93C86)
------------------------------
Lexus ES300
Lexus GS300 1998
Lexus IS200
Lexus RX300 1999 (93C56)
Lexus RX330 immobox 2004- (93C66)
Lexus RX330 ECU 2004- (93C56)
Lexus SC430 immobox 2004- (93C66)
Lexus SC430 ECU 2004- (93C56)

Module 10: Piaggio/Aprilia/Gilera
Description:
Cover the following models:
Piaggio Immobox
Piaggio ECU
Piaggio Vespa
Aprilia Dorsoduro
Aprilia Mana
Aprilia Shiver
Aprilia SR50
Gilera Fuoco 500
Gilera GP800
Gilera Nexus 125
Gilera Nexus 350
Gilera Nexus 500
Gilera Runner 125

Module 11: Iveco
Description:
Cover the following models:
Daily 1996...1999
Daily 1999...
Daily 2007...(95160)
Daily 2007...(95320)
Stralis 2002...
Stralis 2008...
Advanced function: View Login code.

Module 12: DAF
Description:
Cover DAF 2002 to 2008.

Special function 2. PIN calculator functions

Calculator 1: Honda/Acura password calculator
Description: 1st password, 2nd password, HIM unlock password, PCM code for any year.

Calculator 2: Ford/Mazda incode calculator
Description: Calculate incode by outcode.(Before 2012MY)

Calculator 3: Nissan/Infiniti PIN calculator
Description: Calculate PIN by BCM part number.
