2014 Professional Auto Transponder V14.02 T300 Key Programmer T-300 key transponder tool

Specifications

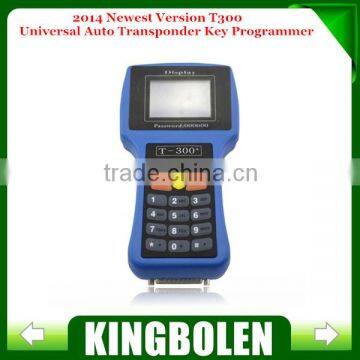

          Professional Transponder Key Programmer T300

                            2014 Newest Version: V14.02

There are two languages: English, Spanish

Leave me a message about the language version you want!

Functions:

Use for key programming. More cars than any other transponder machine .
Function introduces of T300 chip key decoder
1. Read the vehicle malfunction code
2. Clear the vehicle malfunction code
3. Read the system data stream
4. Read IMM0/ECU ID
5. Fetch the machinery key code
6. Clear vehicle key memory
7. Program new key
8. Read vehicle key login password
9. Distinguish types of ECU
10. ECU-IMMOBILISER programme
11. Read EKA password
12. Programme new EKA password
13. Programme telecontrol implement

Vehicle Coverage:
Model Place of origin
ACURA Japan
work for AU-DI Germany
ALFA Italy
BUCK
CHEVROLET
CITROEN France
CHRYSLER
DODGE
DACIA USA
DAEWOO Korea
FORD
FERRARI
FORD USA USA
EXCELLE
FIAT Italy
GENERAL MOTORS USA
GM HOLDEN USA
HOND A
HYUNDAI Korea
ISUZU
IVECO Japan
INFINNITI Japan
INFINNITI CAN-BUS Japan
JAGUAR England
JEEP
KIA Korea
LAND ROVER England
LANCIA Italy
LDV
LEXUS Japan
LINICOLN USA
MAZDA USA Japan
MAZDA M6 Japan
MERCURY USA
VALKSWAGEN
MITSUBISHI Japan
NISSAN Japan
PEUGEOT Franc
RENAULT France
PROTON
PONTIAC
ROVER
SUBARU England
SEAT Spain
SKODA Czech
SUZUKI Japan
SUZUKI
TOYOTA Korea
TOYOTA
VW Germany

Package contains:
1. HOND A-16 Adaptor
2. SUZUKI Adaptor
3. MITSUBISHI Adaptor
4. OBDII-16 Adaptor
5. OBDII-16 POWER Adaptor
6. AUDI 2+2 Adaptor
7. HOND-3 Adaptor
8. Nissan OBDII
9. Nissan 14
10. Nissan adaptor
11. chrysler-1 adaptor
12. Chrysler-2 adaptor
13. GM-12 adaptor
14. OBDII TO BENZ SPRINTER
15. ADC 45 Adapter
16. Peugeot Adapter
17. User Manual

work for AU-DI-VW Transponder key matching with 5 digits Login Code
Procedure for adding transponder keys to vehicles with separate Immobilizer box:

(work for Au-di to year 97, Golf 3, Passat B4, Transporter, Lupo, Sharan)
Switch ignition ON with new key. Select: Immobilizer -> Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example, if your Login is 1234, enter 01234.
Save
Go to Adaptation
Enter 01 in "Channel Number"
Enter
The "Stored Value" is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched, - for ex 2 ;
Enter -> Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation
Enter 00 in "Channel Number"
Enter 0 and Save. This will learn ECU with Immobiliser.

Procedure for adding transponder keys to vehicles with Immobilizer in the instrument cluster:
(Audi from year 97, Golf 4, Passat B5, B6 )
Switch ignition ON with new key. Select: Instrument -> Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example, if your Login is 1234, enter 01234.
Save
Go to Adaptation
Enter 21 in "Channel Number"
Enter
The "Stored Value" is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched, - for ex 2 ;
Enter -> Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation
Enter 00 in "Channel Number"
Enter 0 and Save. This will learn ECU with Immobiliser
