2015 A+ Quality Unlcok Version FgTech V54 Galletto Master FG TECHE V54 ECU Flasher Support OBD BDM Function Multi-Languages

Latest Version V54 FGTech Galletto 4 Master BDM-TriCore-OBD Function

Warranty: 1 Years

FG Tech Galletto 4-Master V54 BDM-TriCore-OBD is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode Tricore, checksum. This item cannot only work as FGTech Galletto 2-Master, but can also work for BDM-TriCore-OBD.

Top 5 Reasons To Get FGTech Galletto 4

1. Latest Version: 2014 V54
2. Supported Operating System: windows XP. more friendly than Fgtech v53 , much easier to operate
3. Unlock Version: Can Use Directly. No Need To Activate
4. FGTECH V54 PCB board
5. Supported Language:English, Italian, German, French, Spanish, Portuguese, Czech, Turkish

FG Tech Galletto 4-Master v54 Description:

FGTech Galletto 2-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode Tricore, checksum.

Boot Mode System TriCore:

Infineon Tricore Sak TC1766
Infineon Tricore Sak TC1767
Infineon Tricore Sak TC1792
Infineon Tricore Sak TC1796
Infineon Tricore Sak TC1797

NEW JTAG - BDM - for MOTOROLA - FREESCALE - INFINEON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF
New Delphy DCM3.5xx DCM3.7xx TRW
for Motorola Freescale MPC 555/556/561/562/563/564/565
for Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
for Motorola MC 68376 Campi 01 Lamborghini - Lotus
for Motorola MC 68336 MEMS D5 ROVER
for Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu
All EDC17 MED17 is good always modify with Boot Mode tricore.

Automatic Checksum:

All old protocols included for Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon Tricore With password for Bosch , Siemens
for Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
for Motorola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM Tricore.

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,

Master Version:

Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time

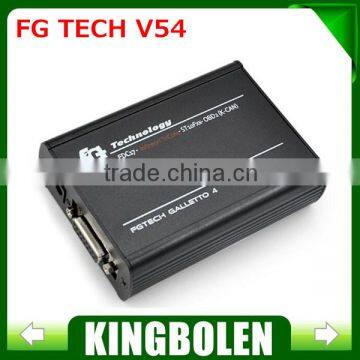

FG Tech Galletto 4-Master V54 Relative Picture


Software Language:
Italiano, English, Deutsch, Francais, Espanol, Portugues, Czech, Turkish

Packing List:

1pc x New version main interface
1pc x ECU cable for TriCore boot
1pc x Adapter for BDM to CMD with bdm cables
3pcs x BDM adapters
6pcs x BDM connectors
2pcs x Power cable
1pc x OBD2 cable
1pc x USB cable (1.5meter)
1pc x CD (2012 version SW -MASTER, documents pdf, pictures, etc.)
