Autel AutoLink AL419 OBDII EOBD & CAN Code Reader

Autel AutoLink AL419 support multi-language and online update. It's troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time.

Autel AutoLink AL419 Supported Language: English, French, Spanish

Autel AutoLink AL419 Feature and Function:

1. Works on ALL 1996 and newer vehicles(OBDII & CAN)
2. Features the unique patented One-Click I/M Readiness Key for quick State Emissions readiness check and drive cycle verification
3. Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes
4. Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
5. Displays DTC definitions on the TFT color screen
6. Easily determines the cause of the Malfunction Indicator Light ( MIL)
7. Turns off Malfunction Indicator Light (MIL), clears codes and resets monitors
8. Displays monitor and I/M readiness status (emissions)
9. Views freeze frame data
10. Troubleshooter code tips guide technicians to the root cause of trouble code faster, saving diagnosis and repair time
11. Retrieves vehicle information (VIN, CIN and CVN)
12. Multilingual menu and DTC definitions- English, Spanish and French, etc
13. Internet updateable and upgradeable
14. Prints data via PC

Autel AutoLink AL419 Specification:

Display: TFT color display (320 x 240 dpi)
Operating Temperature: 0 to 60°C (32 to 140 F°)
Storage Temperature: -20 to 70°C (-4 to 158 F°)
External Power: 8.0 to 18.0 V power provided via vehicle battery
LengthWidthHeight: 199 mm (7.83”)104.5 mm (4.11”)37.5 mm (1.48”)
Main unit weight: 0.28kg (0.75lb, without wire) or 0.484kg (1.3lb, with wire)

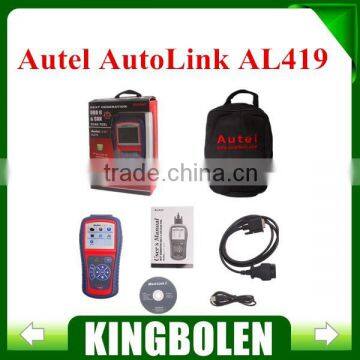

Autel AutoLink AL419 Package list:

1pc x AutoLink AL419 main unit
1pc x OBDII Cable
1pc x USB Cable
1pc x User's Manual
1pc x CD
1pc x Carrying Case
