Home > Products > Building Hoist > Material Hoist for Construction Elevator SC200 2T Small Building Elevator From Factory
Material Hoist for Construction Elevator SC200 2T Small Building Elevator From Factory
- shanghai
- T/T Credit Card PayPal
You May Like
-
Building Hoist For Passenger Material Hoist SS100/100 Construction Lifting
-
High-speed Frequency Conversion Hoist SC200/200 SAJ40-1.2 Construction Building Lifting Equipment
-
Building Construction Hoist SC100/150/200 Mini Hoist Building Material Lifting Equipment
-
Construction Elevator Price SC Series Material Hoist Small Building Elevator
-
Manufactory Normal Building Hoist 33m/min Lifting Speed Single Cage Building Elevator
-
High-speed Frequency Building Hoist Construction Elevator/construction Lift
Product Details
| Condition | New | Place of Origin | Jiangxi, China | |
| Brand Name | Hollisworth | Model Number | SC200/200 | |
| Rated Loading Capacity(kg) | 1000kg-3200kg | Hoisting Speed | 0-33m/min | |
| Max Lifting Height | 200m | Dimension(L*W*H) | 3.2m*1.5m*2.5m | |
| Loder Weight | 1000kgs-3200kgs | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

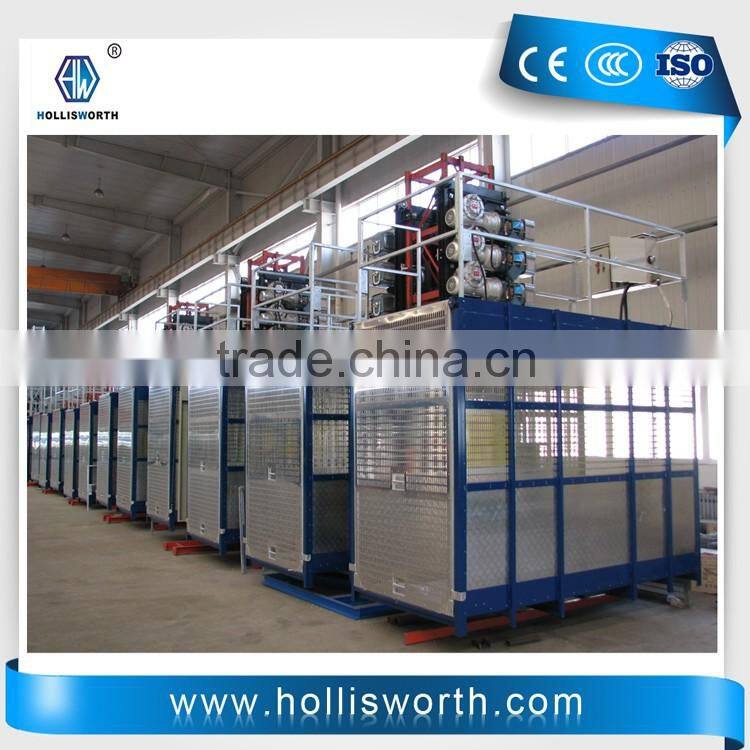

The overload capacity of Hollisworth building hoist can reach 8000kgs; the lifting speed can reach 96m/min, and the max. Erecting height can be as high as 450m. The hoists are widely used in construction site,power projects, metallurgical, mining, oil and chemical industries. Hollisworth also can design and produce the special kinds of lifting equipments upon the clients; requirements or special condition on the working site. Hollisworth can produce the following kinds of building hoist:
1.Normal building hoist
2.High-speed frequency conversion hoist
3.Multifunctional building hoist
4.Curved & Inclined hoist
5.Double pillar Heavy duty hoist
6.Mini Hoist
| Technical Data of Normal Building Hoist | ||||
| Type | Motor Power | Lifting speed | Mast Section Size (mm) | Cage Size(m) |
| SC100 | 2×7.5KW | 0-30m/min | 500×500×1508 | 2.0×1.2×2.5 |
| SC100/100 | 2×2×7.5KW | 0-30m/min | 500×500×1508 | 2.0×1.2×2.5 |
| SC150 | 2×11KW | 33m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC150/150 | 2×2×11KW | 33m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200 | 3×11KW | 33m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 2×3×11KW | 33m/min | 650×650×1508 | 3.2×1.5×2.5 |
| Technical Data of Frequency Building Hoist (Middle Speed) | ||||
| Type | Motor Power | Lifting Speed | Mast Section Size (mm) | Cage Size(m) |
| SC200 | 2×11KW | 0-45m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 2×2×11KW | 0-45m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 3×11KW | 0-63m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 2×3×11KW | 0-63m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200 | 2×11KW | 0-45m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 2×2×11KW | 0-45m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 3×11KW | 0-63m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 2×3×11KW | 0-63m/min | 650×650×1508 | 3.2×1.5×2.5 |
JIANGXI HOLLISWORTH MACHINERY & EQUIPMENT CO., LTD. is a professional manufacturer produces various kinds of construction machines. We have advanced technology and rich experience in Building Maintenance Units, Tower Crane, Building Hoist, Powered Platform, Wheel Loader and other construction machineries. We have already exported to U. A. E., Qatar, Saudi Arabia, Kuwait, Iran, Inida, Russia, Brazil, Australia and many other countries and regions for many years. You can be assured of our high quality, fast delivery time and responsuble after-sale service. We insist in : Quality is First " , We will continously do our best to supply reliable quality products and excellent service to our customers.
