Gi Malleable Cast Iron Pipe Fitting Coupling Quality Choice
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Material | Iron | Technics | Casting | |
| Type | Coupling | Place of Origin | Shandong, China | |
| Model Number | 270 | Brand Name | Donrex | |
| Connection | Female | Shape | Equal | |
| Head Code | Other, Round |
Product Description
Specifications
Gi M. Cast Iron Pipe Fitting Coupling1)size:1/8"to6" ZN PLATING
2. BS,ANSI,DIN Thread Standard
3. Black,Galvanized

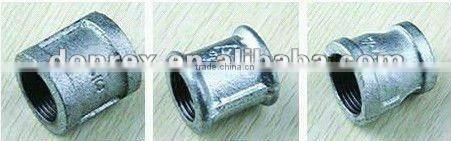

Gi Malleable Cast Iron Pipe Fitting Coupling Banded Socket with Ribs Parallel Threads
material:malleable iron
finish:galvanized,black

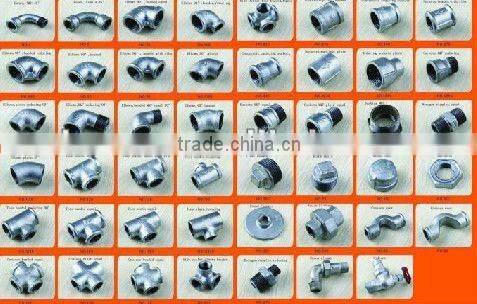

As a professional manufacture we supply many kinds of malleable iron pipe fittings: elbows, tees, sockets, bends, nipples, unions, crosses, flanges, plugs, backnuts, crosses over, round caps etc.
Malleable iron pipe fittings:
Product Item | Malleable iron pipe fittings: elbows, tees, sockets, bends, nipples, unions, crosses, flanges, plugs, backnuts, crosses over, round caps etc. |
Material | Malleable iron |
Technics | Casting |
Size | 1/8"-6" |
Thread Standard | BS ANSI DIN |
Finish | Electro Galvanized, Hot Dipped Galvanized, Black, all be antirust treatment |
Packing | cartons, woven bags, wooden boxes |
Quality Control | Excellent material, Precise angles, Good antirust property |
Product Usage | Suitable for joining pipe lines of team gas oil air |
Mechanical Properties | Tensile Strength>=33kg/mm2, Elongation>=8%, Hardness<HB150 |
Hydraulic Test | Test Pressure: 25kg/cm2;Working Pressure: 16kg/cm2 |
Chemical Properties | C:2.4~2.9 Si:1.2~1.7 Mn:0.3~0.55P:0.12 S:0. |
Standards:
1.DIN (Germany) standard, DIN 2950/1692/2999
2.BS (British) standard, ISO49 / ISO5922 / ISO7/1
3.ANSI standard, ASTM B16.3 B16.14 B16.39 / B1.20.1
We can also produce malleable iron pipe fittings according to the drawing samples from customers.
