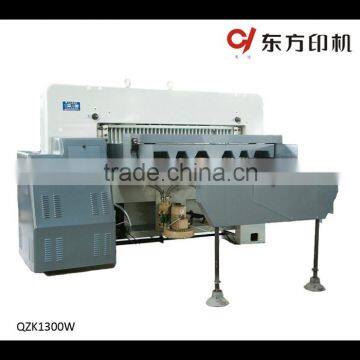

920/1300/1500 guillotines for papers
USD $12,000 - $30,000
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Shanghi
- T/T L/C D/P D/A
You May Like
-
Spring Steel Clips
-
QZK 1300W Programable Worm gearing cutter machine
-
QZK 920 1300 1370 cnc aluminium saw cutting machine challenge paper cutter for sale
-
QZK 920 1300 1370 hand press aluminium-foil paper cutter digital carbon-less duplicating paper cutter
-
QZK 920 1300 1370 craft cutter lcd cutting machine
-
QZX920 1300 1370 the binding of books machine hydraulic cutter for paper
Product Details
| Condition | New | Type | Paper Cutting Machine | |
| Computerized | Yes | Place of Origin | Hubei, China | |
| Brand Name | Dongfang | Model Number | QZK(X)920W etc. | |
| Voltage | 380V | Power(W) | 5000 | |
| Dimension(L*W*H) | 2280*1400*1850 | Weight | 2600Kg | |
| Certification | ISO9001 | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
920/1300/1500 guillotines for papers
Product Description
Specification
1. Drivetrain system:
Planar double-enveloping worm gearing; High efficiency, energy saving and little noise
2. Workbench:
Slotless chroming workbench; dual rail paper-pusher, vertical and parallel adjustment system of paper-pusher is separated, simple and accurate.
3. Hydraulic system:
Hydro-cylinder with Italian technology; Selection of hydraulic components meets the ISO standard.
4. Security System:
Infrared protection device; cutter block security system, overload protection and two hands operation device
5. Knife bar push out device
Main producct Parameter
| QZK(X)920S | QZK(X)920B | QZK(X)920W | QZK(X)1300W | QZK(X)1370W | |
| Max. Cutting width(mm) | 920 | 920 | 920 | 1300 | 1370 |
| Max. Cutting height(mm) | 115 | 115 | 120 | 130 | 165 |
| Max. Cutting length(mm) | 920 | 920 | 1100 | 1300 | 1450 |
| Cutting Speed(times/min) | 30 | 40 | 40 | 45 | 45 |
| Max clamping pressure(N) | 28000 | 35000 | 35000 | 45000 | 45000 |
| Total power(KW) | 4.1 | 4.3 | 4.3 | 5.5 | 5.85 |
| Voltage(v) | 380V,3PHASE / 220,3 PHASE /415V,3PHASE | ||||
| Overall Dimensions(mm) | 2280×1100×1760 | 2210×1230×1735 | 2280×1400×1850 | 2730×1350×1830 | 2950×1400×2000 |
| Gross Weight(KG) | 2000 | 2200 | 2600 | 4000 | 4500 |
| Blade Size(mm) | 1065×127×12.7 | 1065×127×12.7 | 1100×127×12.7 | 1520×127×12.7 | 1605×160×13.75 |
Drivetrain System: Worm Gear | × | √ | √ | √ | √ |
Used for Matierial
Product Detail
Our Services
Technical Guide Document
*Machine Structure and Operationg Guide
*Electric Control system
*Installation Guide
*Lubrication and Maintainance
*Technical Safty
*Instructions CD
