Home > Products > T8 to T5 retrofit adapter kit > Aluminium Reflector T8 to T5 Fluorescent Light

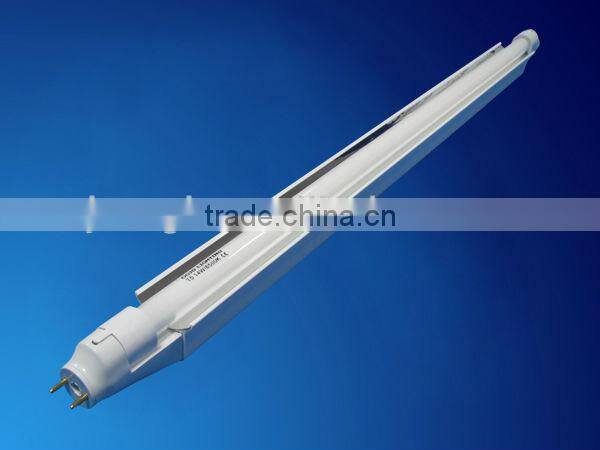

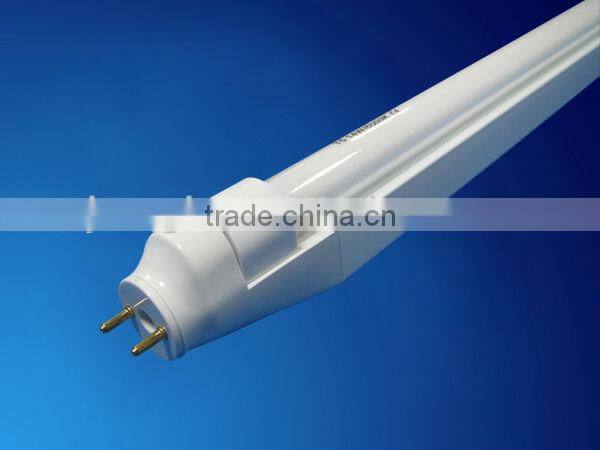

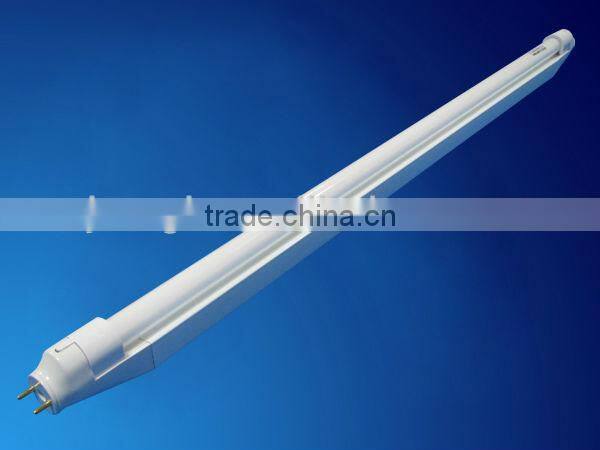

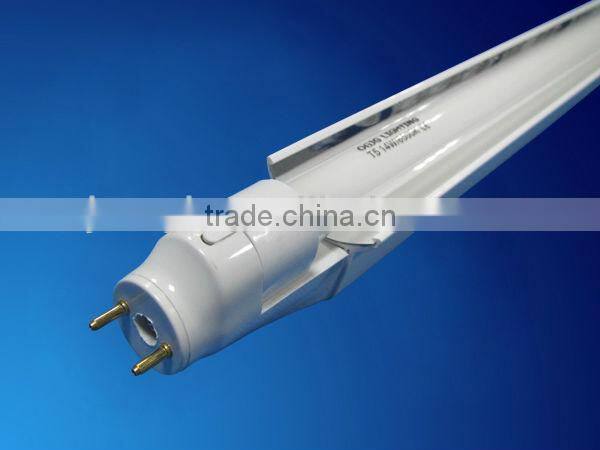

Aluminium Reflector T8 to T5 Fluorescent Light

FOB Price

US$ 6.63 - 10 / Piece

100 Pieces(Min. Order)

Port Jiangmen/Shenzhen/Guangzhou
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	OGJG
Model Number	OG-T8/T5-28(UL-WV)	Base Material	Other, pc
Cover Material	Other, pc	Light Source	Fluorescent
Color	White

Product Description

aluminium reflector T8 to T5 fluorescent light

Material	PC/Aluminium
Power	14W,21W,28W,35W
Voltage	110V-277V,110V,277V,220V-240V
Certificate	UL TUV-CE SAA C-Tick
Function	replace T8,T10,T12 fluorescent tube
Payment Terms	T/T 30% deposit,70% before shipment
Sample lead time	3-5 days
Remarks	OEM and ODM order are warmly welcome

Feature:

Cost Savings

Readuces elctric bill by 50-60% or more.
Redeuces maintenance costs.
Short payback period.

Enviromental

Use existing fixtures, don’t need to dispose of old fixtures .
Saves energy, reduces carbon output and CO2 emissions
Contains less mercury than standard T12 lamps

General

Instant start
No flicker or hum
Quick, clean installation
Compatible with T12 and T8 fluorescent technology
Flame resistant PC housing with Nano mirror reflector - 120° angle
90°angle Rotating, adjustable end caps
Reduces heat load
UL listed

Light Output

Color rendering index (CRI) up to 85 - T12 rated at 62
Better quality light; easier on the eyes
Retains maximum light output longer - only 10% light
loss from T5 vs. 40% from T12 after 10,000 hours
T5 lamps rated at 2,400 lumens

Warranty and Ratings

Electronic ballasts have 3year warranty and are rated at 40,000 hours
Lamps are rated at 20,000 hours

Installation:

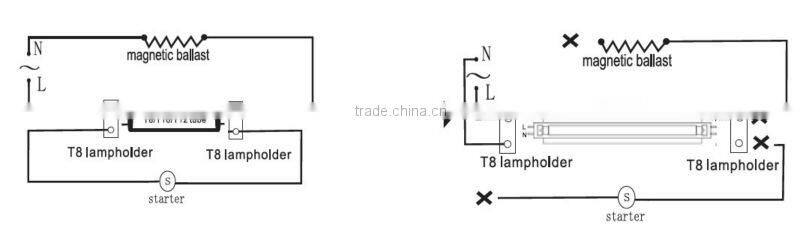

For retrofittingT8/T10/T12 flourescent light fittings with magnetic ballasts, please refer to below wiring diagram.

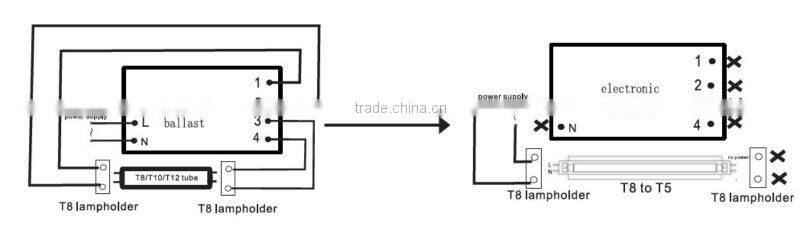

For retrofittingT8/T10/T12 flourescent light fittings with electronic ballasts, please refer to below wiring diagram

Specification:

Model No.	Power	Replace T8/T12	fixture Dim(mm)	Remark
OG-T8/T5-35(D)	T5 1X 35W	58W	1514X40X38	with Reflector
OG-T8/T5-28(D)	T5 1X 28W	36W/40W	1214X40X38
OG-T8/T5-21(D)	T5 1X 21W	30W	910X40X38
OG-T8/T5-14(D)	T51X 14W	18W/20W	606X40X38

OG-T8/T5-35(C)	T5 1X35W	58W	1514X25X38	without reflector
OG-T8/T5-28(C)	T5 1X28W	36W/40W	1214X25X38
OG-T8/T5-21(C)	T5 1X21W	30W	910X25X38
OG-T8/T5-14(C)	T5 1X14W	18W/20W	606X25X38

IMAGE:

If there is any question about our product,pls do not hesitate to contact us!

Hope the successful cooperation between us !!
