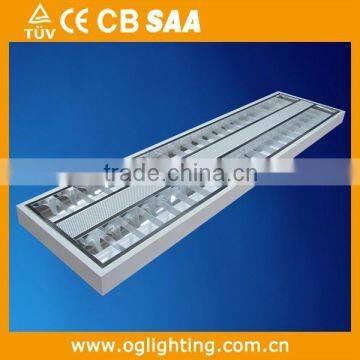

2x4 Modern design style surface mounted led grille lighting fixture

FOB Price

US$ 28.9 - 59.82 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	2835	Grid Shape	H
Input Voltage(V)	100-277	Lamp Power(W)	30
Lamp Luminous Flux(lm)	3000	Lamp Luminous Efficiency(lm/w)	100
Color Temperature(CCT)	Other, 3000k,4000k,5000k,6000k	Working Temperature(℃)	-20, 40
Working Lifetime(Hour)	50000	Lamp Body Material	Stainless Steel
Certification	CCC, CE, SAA	Base Type	2G7
Place of Origin	China	Brand Name	OGJG
Model Number	OG-PLED-310(S)

2x2 Modern design style surface mounted led grille lighting fixture

Product Description

Feature:

1. Material: white powder coated cold-rolled steel sheet,0.5mm in thickness

2. aluminum louver and reflector,0.3mm in thickness

3. built-in led strips and driver, opal diffuser to reduce glare

4. superior heat dissipation

Voltage:	100-277V
CCT:	3000/4000/6000K
CRI:	80Ra
Power Factor:	0.95
THD:	13%
Housing Material:	white powder coated cold-rolled steel sheet
louver and reflector	aluminum
LED lifespan:	50000h
Warranty:	3 years

2x2 Modern design style surface mounted led grille lighting fixture

The Core competitiveness of OGJG Lighting
Fixture Material	Aluminum: less weight and Perfect heat dissipation
	PC: high strength and good tightness
LED	Epistar SMD2835,High lumen and long lifespan
Led Moudle	draw-out design and easy to replace
Maintenance	Easy to replace led Moudle,easy to remove and install
Led Moudle	1% LED Moudle for free if you purchase from us
Accessories	Easy to add Emergency backup, sensor and dimming as you request
Length	Easy to change the length as you request from 2ft to 8ft
Certificate	Complete certificate: ETL,DLC,TUV-CE,TUV-CB,TUV-EMC,SGS-SAA, SGS-CE,SGS-CB,ROHS,SGS-C-TICK,SGS-MEPS
Delivery time	10-20 days after received your payment
Our values	Seek for the long-time cooperation and achieve win-win
Other	50000 Hours lifespan and 5 years warranty as your request
1.Payment:TT 30% deposit in advance,the balance to be paid before delivery.
2.Sample:Charged,shipping by DHL,Fedex,UPS,TNT in discount if prepaid fee.
3.Package:Samples are packaged within wood bar box.
Unit with plastic-wrapped into inner box,then several pcs into a carton.
Pallet is optional.All package information and lable are designed as your request.
4.Shipping:Purchasing in container,we take all FOB fees before Jiangmen Port.
5.Delivery time:10-20 days per container.
7.Our goal: Make the OGJG Lighting be the NO 1 in T5 and LED commercial light fixture field.
