plastic extrusion blow molding machine zk-135B
- NINGBO SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Application | Other, pipe, plate,hollow products | |
| Plastic Processed | Other, HDPE,PP,PC,ABS,PVC,XPS ETC | Screw Design | Single-screw | |
| Place of Origin | Zhejiang, China | Brand Name | shengda | |
| Model Number | ZK-135 |
Product Description
Specifications
plastic extrusion blow molding machinesuit for drum,auto parts,board,hollow product
max container :1000L
screw diameter:135
plastic extrusion blow molding machine

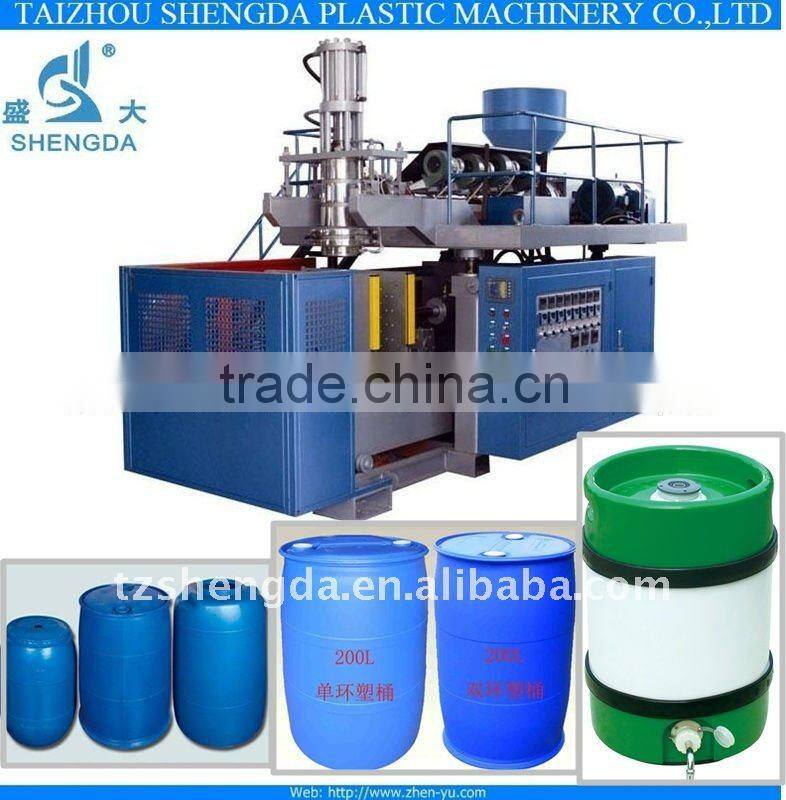

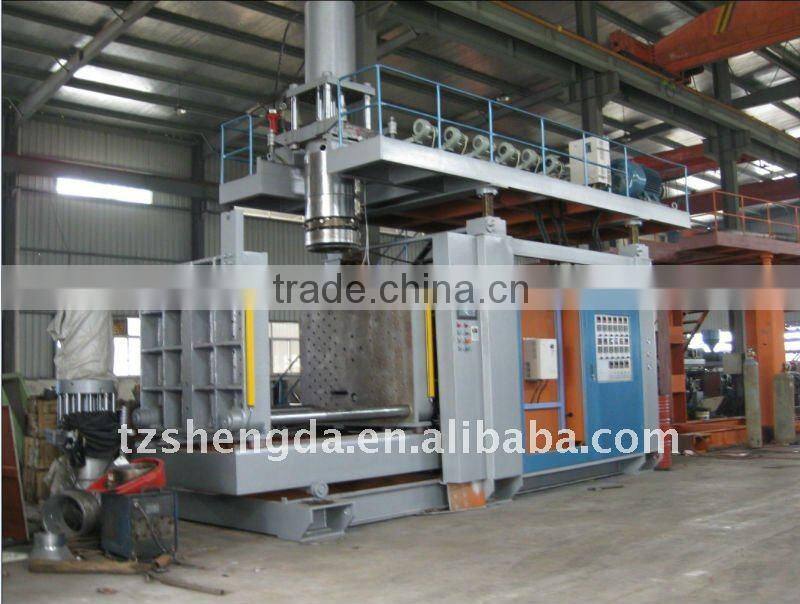

ZK-135Model automatic large extrusion blow molding machine---This model adopts accumulator die. Parison programmer is available to control thickness.This model is automatic process with low noise, saving energy, high efficiency,safe operation, easy maintenance and other benefits. This model is widely used to produce chemical barrel, auto parts ( water box, oil box, air-condition pipe,aoto tail), toys(wheel,hollow autobike, basketball stands,baby castle), tool box,vacuum cleaner pipe, chairs for bus and gymnasium,etc.This model can produce max 500L hollow plastic product.
Features:
1) Controlled by Japan mitsubishi PLC
2) Temperature controlled model
3) Interactive monitor with machine-human interface
4) Imported hydraulic elements
5) Proportional control
6) Imported electric elements
7) Hard gear surface reducer
8) Accumulator head with special steel
9) Vicker hydraulic valve, seal and proportional control
10) Japan mitsubishi PLC+ Taiwan human machine interface +software in touch type +famous brand electric elements.
following is the technical specifications:
specification | unit | zk-135B |
max container capacity | L | 1000 |
machine dimension(L*W*H) | M | 7.5*3.8*6 |
total weight | ton | 35 |
clamping unit |
|
|
clamping force | KN | 1800 |
platen opening stroke | mm | 600-1600 |
max mould size(W*H) | mm | 1600*2000 |
mould thickness | mm | 610-850 |
power |
|
|
max drive | KW | 30 |
total power | KW | 220 |
fan power for screw | KW | 0.72 |
air pressure | Mpa | 0.7 |
air consumption | m3/min | 0.9 |
average energy consumption | KW | 80 |
extruder unit |
|
|
screw diameter | mm | 135 |
screw L/D ratio | L/D | 28:1 |
plasticizing capacity | kg/hr | 400 |
number of heating zone | zone | 6 |
extruder heating power | KW | 42 |
extruder driving power | KW | 110/160 |
accumulator head |
|
|
number of heating zone | zone | 6 |
power of die heating | KW | 50 |
max die-pin diameter | mm | 750 |
accumulator volume | L | 50 |
