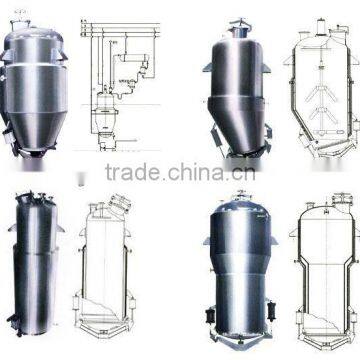

Straight conical extraction tank
- shanghai or ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Haichuan | |
| Model Number | TG-808 | Type | Other, extraction | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. TQ-M mushroom type
Main technical parameter :
Type Specification | TQ-M-1.0 | TQ-M-2.0 | TQ-M-3.0 | TQ-M-6.0 | TQ-M-8.0 | TQ-M-10 | |||||
Capacity (m³) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 | |||||
Inner design pressure (Mpa) | 0.09 | ||||||||||
Jacket design pressure (Mpa) | 0.3 | ||||||||||
Compressed air pressure (Mpa) | 0.6~0.7 | ||||||||||
Inlet diameter (mm) | 400 | 400 | 400 | 500 | 500 | 500 | |||||
Heat area (m2)
| 3.0 | 4.7 | 6.0 | 7.5 | 9.5 | 12 | |||||
Condenser area (m2) | 4 | 4 | 5 | 5 | 8 | 10 | |||||
Cooler area (m2) | 1 | 1 | 1 | 2 | 2 | 3 | |||||
Filter area (m2) | 3 | 3 | 3 | 5 | 5 | 6 | |||||
Outlet diameter (mm) | 800 | 800 | 800 | 1000 | 1000 | 1000 | |||||
Energy consumption (kg/h) | 245 | 325 | 345 | 645 | 720 | 850 | |||||
2.. TQ-T vertical cylinder type
Main technical parameter :
Type Specification | TQ-T-1.0 | TQ-T-2.0 | TQ-T-3.0 | TQ-T-6.0 | TQ-T-8.0 | TQ-T-10 | |||||
Capacity (m³) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 | |||||
Inner design pressure (Mpa) | 0.09 | ||||||||||
Jacket design pressure (Mpa) | 0.3 | ||||||||||
Compressed air pressure (Mpa) | 0.6~0.7 | ||||||||||
Inlet diameter (mm) | 400 | 400 | 400 | 500 | 500 | 500 | |||||
Heat area (m2)
| 3.0 | 4.7 | 6.0 | 7.5 | 9.5 | 12 | |||||
Condenser area (m2) | 4 | 4 | 5 | 5 | 8 | 10 | |||||
Cooler area (m2) | 1 | 1 | 1 | 2 | 2 | 3 | |||||
Filter area (m2) | 3 | 3 | 3 | 5 | 5 | 6 | |||||
Outlet diameter (mm) | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | |||||
Energy consumption (kg/h) | 245 | 325 | 345 | 645 | 720 | 850 | |||||
Contact Us
- Wenzhou Haichuan Machinery Factory
- Contact nameBingjie Xiang Chat Now
- Phone0086-0577-28868789
- AddressNo3 Honghe road, Shangcheng Center street, Longwan Section, Wenzhou city ,Zhejiang province, Wenzhou, Zhejiang
