Mxing tank/Jacket mixing tank/High-speed mixing tank(stainless steel mixing tank)
- ningbo or shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | Haihuan | Model Number | TY-001 | |
| Processing Types | Juice | Voltage | according to client's requirements | |
| Power(W) | according to client's requirements | Weight | according to machine's capacity | |
| Dimension(L*W*H) | according to machine's capacity | Certification | CE/ISQ | |
| Warranty | 1 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

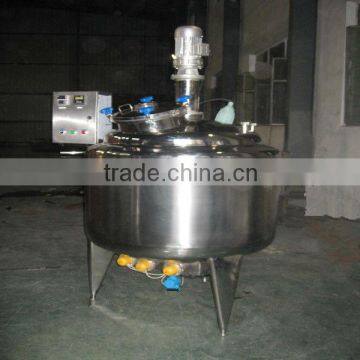

stainless steel electric heating mixing tank
Joints adopt international general ISO package chuck, inner container adopts stainless steel SUS316L or SUS304, internal surface is polished to Ra≤ 0.20um, and external surface is mirror polished, sand blasting or cold-rolled nature-color surface polishing. All is in accordance with GMP medical standards.
Sealing of mixer adopts imported sanitation-grade mechanical stirring enclosing or magnetic totally-enclosed stirring device. The mixing rotary speed is optional.
Orifice is set with level gauge(static-pressure type, capacitance type, on-contact type, ultrasonic type and glass tube type), air respirator, thermometer(digital display type or dial plate type), CIP cleaning mouth, viewing mirror, explosion-proof viewing lamp(viewing mirror and viewing lamp integration), SIP sterilizing mouth, liquid entrance-exit gate and sanitary inlet.
Volume Specification: 100L-10000L or to be designed and manufactured at customers'actual request.
Relevant GMP testing data are attached in the machine. (Including material report, external components certificate of quality and verification form).
| Capacity | Working Pressure(Mpa) | Working Temp. ( ºC) | Mixing speed (R/M) | H (mm) | H1 (mm) | D (mm) | D1 (mm) | h ( mm) |
| 100 | 0.25 | 100 | 0 - 720 | 1750 | 450 | Φ750 | Φ550 | 300 |
| 200 | 0.25 | 100 | 0 - 720 | 1950 | 600 | Φ850 | Φ650 | 300 |
| 600 | 0.25 | 100 | 0 - 720 | 2500 | 1000 | Φ1100 | Φ900 | 350 |
| 1000 | 0.25 | 100 | 0 - 720 | 2850 | 1200 | Φ1300 | Φ1100 | 350 |
| 2000 | 0.25 | 100 | 0 - 720 | 3350 | 1500 | Φ1500 | Φ1300 | 350 |
| 3000 | 0.25 | 100 | 0 - 720 | 3700 | 1700 | Φ1700 | Φ1500 | 350 |
| 5000 | 0.25 | 100 | 0 - 720 | 4250 | 2000 | Φ2000 | Φ1800 | 400 |
| 10000 | 0.25 | 100 | 0 - 720 | 5000 | 2500 | Φ2500 | Φ2300 | 400 |
